Coxreels DMPL-475 Dual Hose Spring Rewind Hose Reel | DP Series | 1/2" Hose Diameter | 75' Hose Length | 3000 Max PSI | Less Hose

Built for dual medium-pressure hose delivery, the Coxreels DMPL-475 Dual Hose Spring Rewind Hose Reel gives maintenance teams a reel-only platform for managing two customer-supplied hose runs from one spring-driven reel. This DP Series model is configured less hose and supports 1/2" I.D. hose with up to 75 ft hose capacity and a 3,000 PSI maximum pressure rating, making it useful where paired air, water, or oil lines need organized storage with more pressure capability than low-pressure DP Series reels. The DMPL-475 uses two swivel joint inlets and two outlet risers for dual hose applications. The DP Series frame uses a sturdy box-style design with reinforced steel cross supports to improve rigidity during payout and rewind. Because this model is supplied without hose, the buyer can choose compatible 1/2" hose assemblies separately, including hose material, end fittings, and connection style for the intended media, pressure, temperature, and mounting layout.

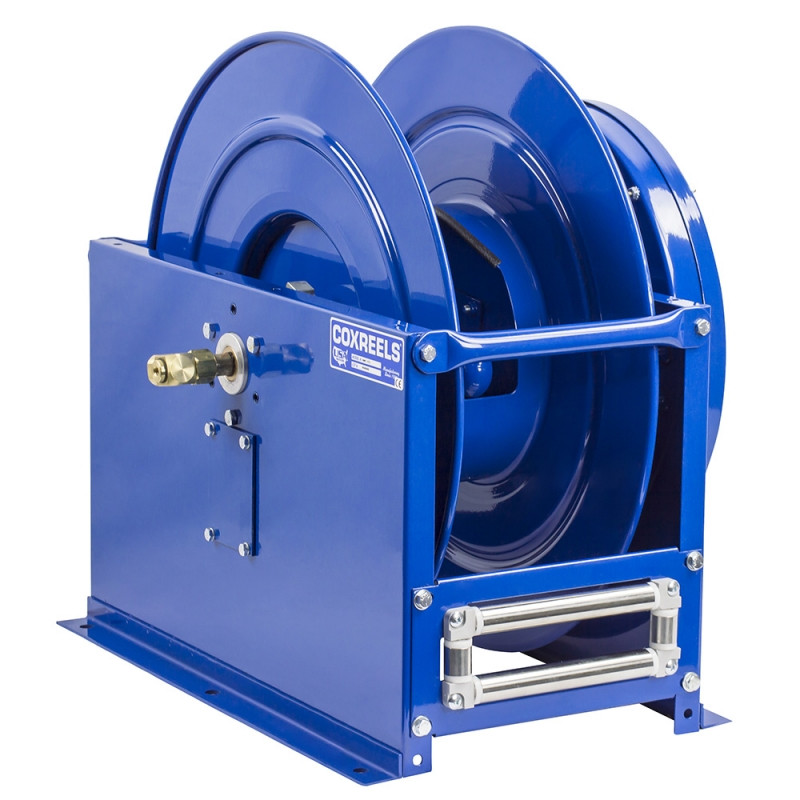

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Dual Hose Spring Rewind Hose Reel | Series: DP Series | Configuration: Less Hose | Pressure Class: Medium Pressure | Hose I.D.: 1/2" | Maximum Hose O.D.: 15/16" | Hose Capacity: 75 ft | Max Pressure: 3,000 PSI | Inlet/Outlet: 1/2" NPT | Service: Air, Water, Oil | Max Temperature: 250°F | Approx. Weight: 115 lbs | Overall Dimensions: 21-1/2" W x 24-1/2" H x 26-3/8" L | Base Dimensions: 15-3/8" x 25" | Mounting Pattern: 14" x 22"

Features:

• Dual hose configuration uses two swivel inlets and two outlet risers to manage two hose runs from one reel.
• Less-hose configuration allows the buyer to install compatible 1/2" hose separately for the intended air, water, or oil application.
• 75 ft hose capacity provides useful reach for paired medium-pressure service lines across bays, plant work zones, and mobile service layouts.
• Two external fluid paths with machined solid brass 90° full-flow NPT swivel inlets support separate hose delivery through the reel.
• Nitrile swivel seals are used for the listed medium-pressure service applications.
• Sturdy box-style frame design provides support for dual hose handling and larger-volume delivery layouts.
• Low-profile outlet riser and open drum slot design help support even hose wrap during rewind.
• Reel adjusts to wall, floor, vehicle, and overhead positions when installed with the appropriate mounting setup.

Made in USA:

2 Year Warranty

Applications:

• Dual medium-pressure air, water, or oil service points where two 1/2" hose lines need to deploy together from one reel location.
• Industrial maintenance departments routing paired service hoses near work cells, equipment areas, or plant utility stations.
• Fleet, truck, and equipment service facilities using two customer-supplied hose assemblies from a single reel body.
• Manufacturing plants that need organized dual hose storage for medium-pressure fluid handling or utility service.
• Mobile service vehicles and maintenance trailers where paired hoses need retractable storage without installing separate reels.

FAQs:

• Q: What does “less hose” mean on the Coxreels DMPL-475?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible hose separately, staying within the listed 1/2" I.D., 15/16" maximum O.D., 75 ft capacity, and 3,000 PSI pressure rating.
• Q: What makes this a dual hose reel?
  A: The DP Series uses two swivel joint inlets and two outlet risers, allowing the reel to manage two hose lines instead of a single hose. This is useful when two service lines need to be stored and deployed together.
• Q: Can the two hoses be different diameters?
  A: Coxreels notes that DP Series dual hose reels can handle equal lengths of two hoses and that the hoses can be different diameters. The installed hoses must still stay within the reel’s listed capacity and maximum hose outside diameter.
• Q: What fluids can the DMPL-475 be used with?
  A: The medium-pressure DP Series configuration is listed for air, water, or oil service. Always confirm the selected hoses, fittings, seals, and media are compatible with the exact pressure and temperature conditions before installation.
• Q: How is DMPL-475 different from DLPL-475?
  A: DMPL-475 is the medium-pressure version and is listed at 3,000 PSI. DLPL-475 is the low-pressure version and is listed at 300 PSI.
