Coxreels DLPL-350 Dual Hose Spring Rewind Hose Reel | DP Series | 3/8" Hose Diameter | 50' Hose Length | 300 Max PSI | Less Hose

Built for dual low-pressure hose delivery, the Coxreels DLPL-350 Dual Hose Spring Rewind Hose Reel gives maintenance teams a reel-only platform for managing two equal hose runs from one spring-driven reel. This DP Series model is configured less hose and supports 3/8" I.D. hose with up to 50 ft hose capacity per listed reel configuration and a 300 PSI maximum pressure rating, making it useful where two air, water, or oil lines need to be routed together while hose selection remains application-specific. The DLPL-350 uses two swivel joint inlets and two outlet risers to handle dual hose applications. The DP Series frame is built with a sturdy box-style structure and reinforced steel cross supports to improve rigidity during payout and rewind. Because this model is supplied without hose, it allows the buyer to choose compatible hose assemblies separately, including hose material, fittings, and end connections that match the intended media, pressure, temperature, and installation layout.

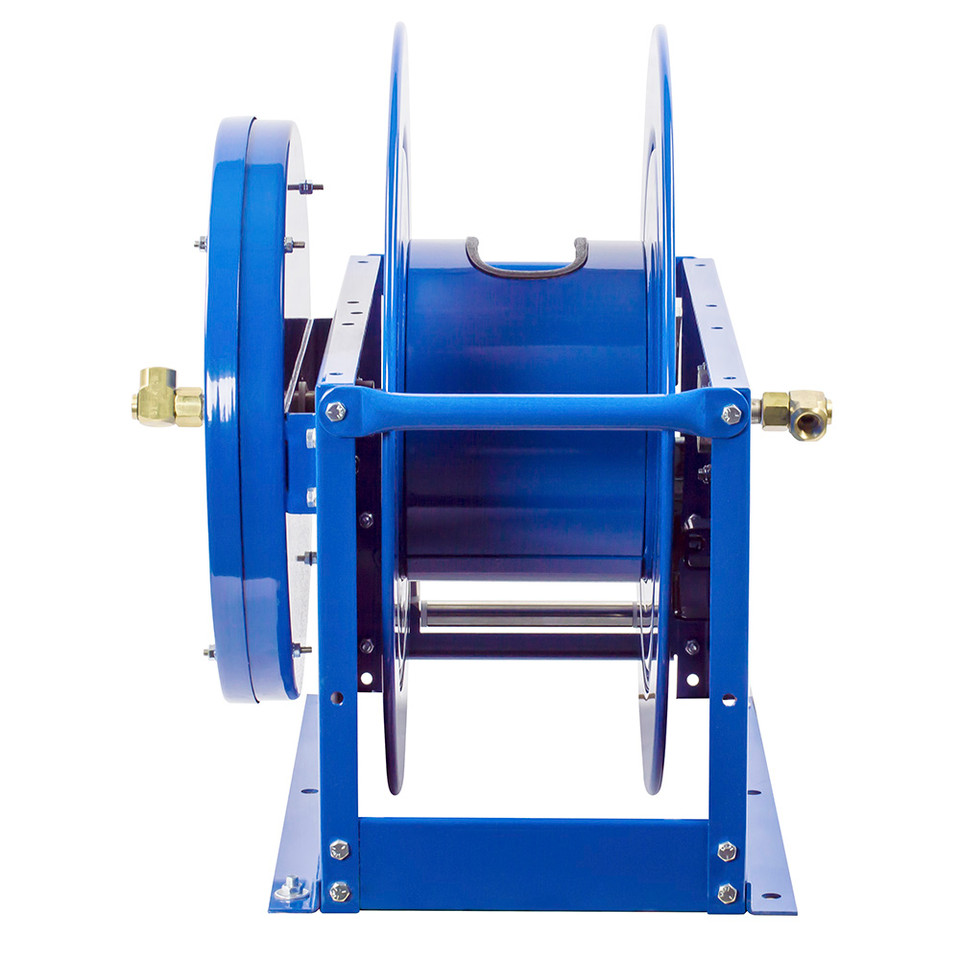

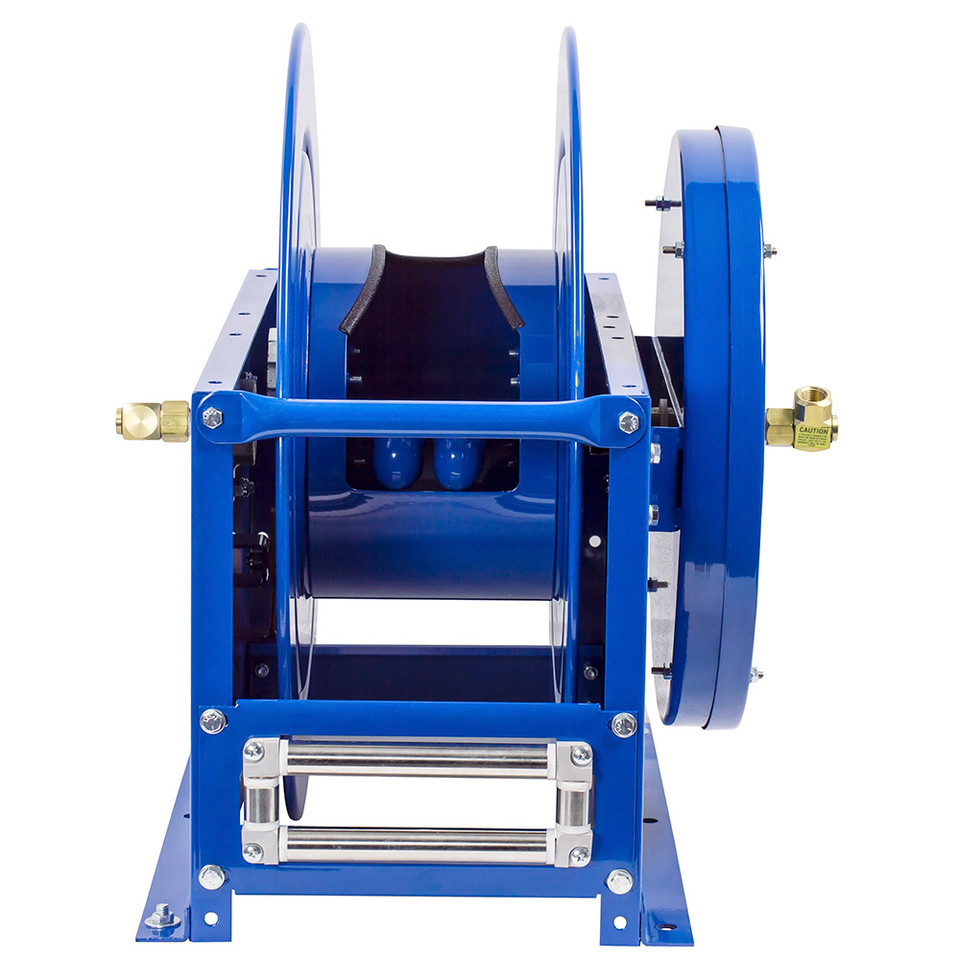

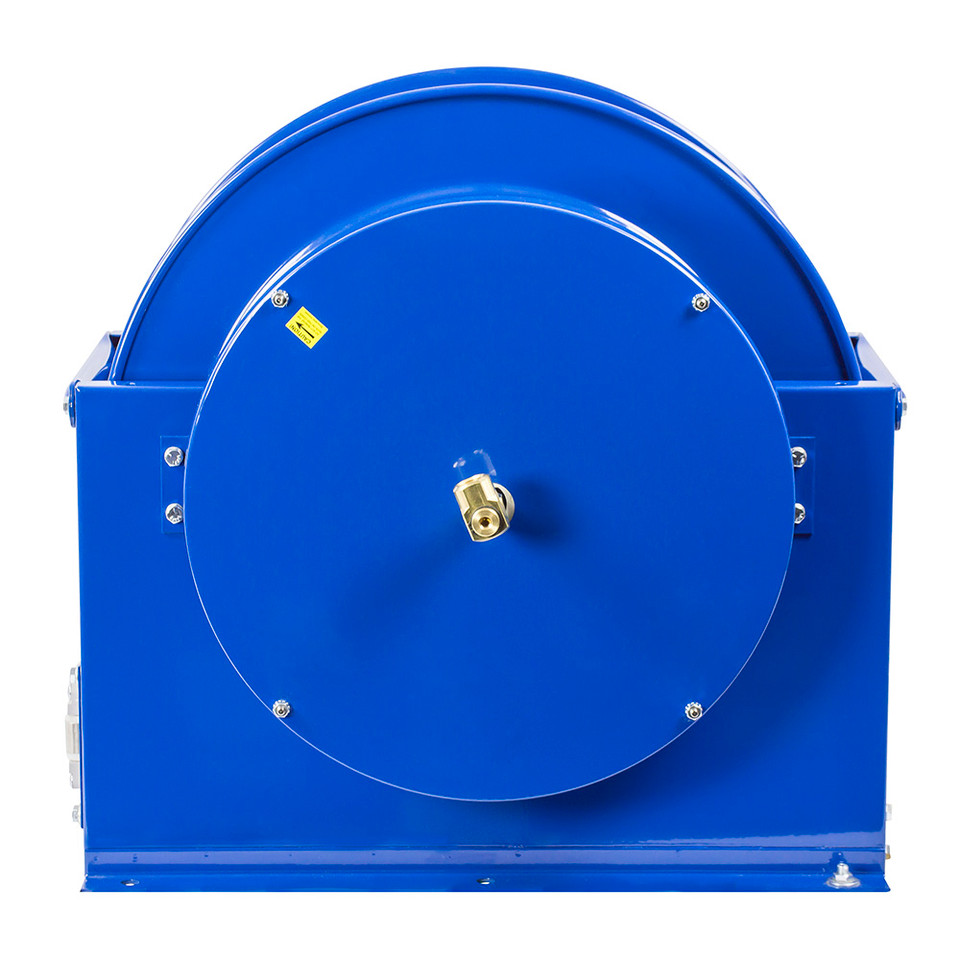

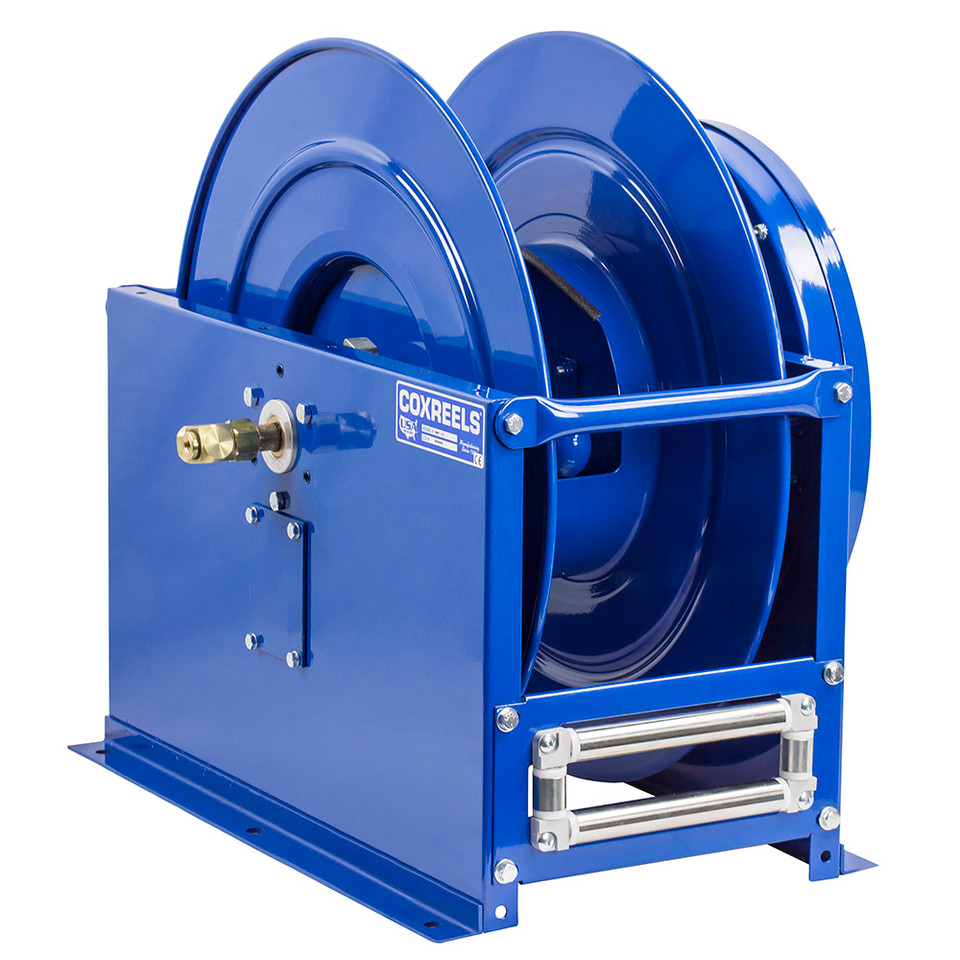

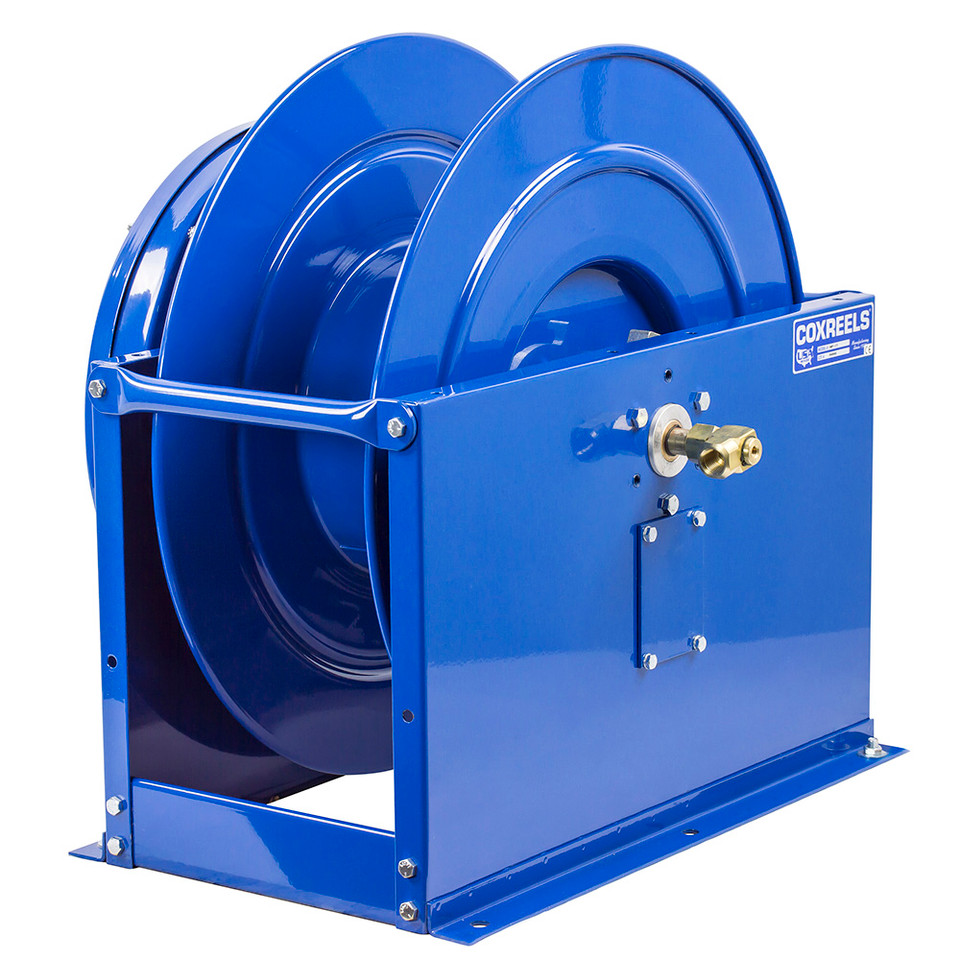

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Dual Hose Spring Rewind Hose Reel | Series: DP Series | Configuration: Less Hose | Pressure Class: Low Pressure | Hose I.D.: 3/8" | Maximum Hose O.D.: 3/4" | Hose Capacity: 50 ft | Max Pressure: 300 PSI | Inlet/Outlet: 1/2" NPT | Service: Air, Water, Oil | Max Temperature: 250°F | Approx. Weight: 94 lbs | Overall Dimensions: 21-1/2" W x 20-1/2" H x 22-7/8" L | Base Dimensions: 15-3/8" x 21-1/2"

Features:

• Dual hose configuration uses two swivel inlets and two outlet risers to manage two hose runs from one reel.
• Less-hose configuration allows the buyer to install compatible 3/8" hose separately for the intended air, water, or oil application.
• Two external fluid paths with machined solid brass 90° full-flow NPT swivel inlets support separate hose delivery through the reel.
• Nitrile swivel seals are used for the listed low-pressure service applications.
• Sturdy box-style frame design provides support for dual hose handling and large-volume delivery layouts.
• Low-profile outlet riser and open drum slot design help support even hose wrap during rewind.
• Long-lasting self-lubricated flange bearings support smooth reel rotation during payout and rewind.
• Multi-position lock ratchet mechanism secures the hose at the desired working length.

Made in USA:

2 Year Warranty

Applications:

• Dual air, water, or oil service points where two hose lines need to be stored and deployed together from one reel.
• Industrial maintenance departments routing paired low-pressure service hoses near equipment, work cells, or utility stations.
• Fleet, truck, and equipment service facilities using two customer-supplied hose assemblies from a single reel location.
• Manufacturing plants that need organized dual hose storage for general low-pressure fluid handling or utility service.
• Mobile service vehicles and maintenance trailers where paired hoses need retractable storage without separate reel installations.

FAQs:

• Q: What does “less hose” mean on the Coxreels DLPL-350?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible hose separately, staying within the listed 3/8" I.D., 3/4" maximum O.D., 50 ft capacity, and 300 PSI pressure rating.
• Q: What makes this a dual hose reel?
  A: The DP Series uses two swivel joint inlets and two outlet risers, allowing the reel to manage two hose lines instead of a single hose. This is useful when two low-pressure service lines need to be stored and deployed together.
• Q: Can the two hoses be different diameters?
  A: Coxreels notes that DP Series dual hose reels can handle equal lengths of two hoses and that the hoses can be different diameters. The installed hose sizes must still stay within the reel’s listed capacity and maximum hose outside diameter.
• Q: What fluids can the DLPL-350 be used with?
  A: The low-pressure less-hose configuration is listed for air, water, or oil service. Always confirm the selected hose, fittings, and seal compatibility with the exact media, pressure, and temperature conditions before installation.
• Q: Can this reel be mounted on a wall, floor, or service vehicle?
  A: Yes. The DP Series reel can be adjusted for wall, floor, vehicle, and overhead mounting positions when properly installed with compatible mounting hardware and structure.
