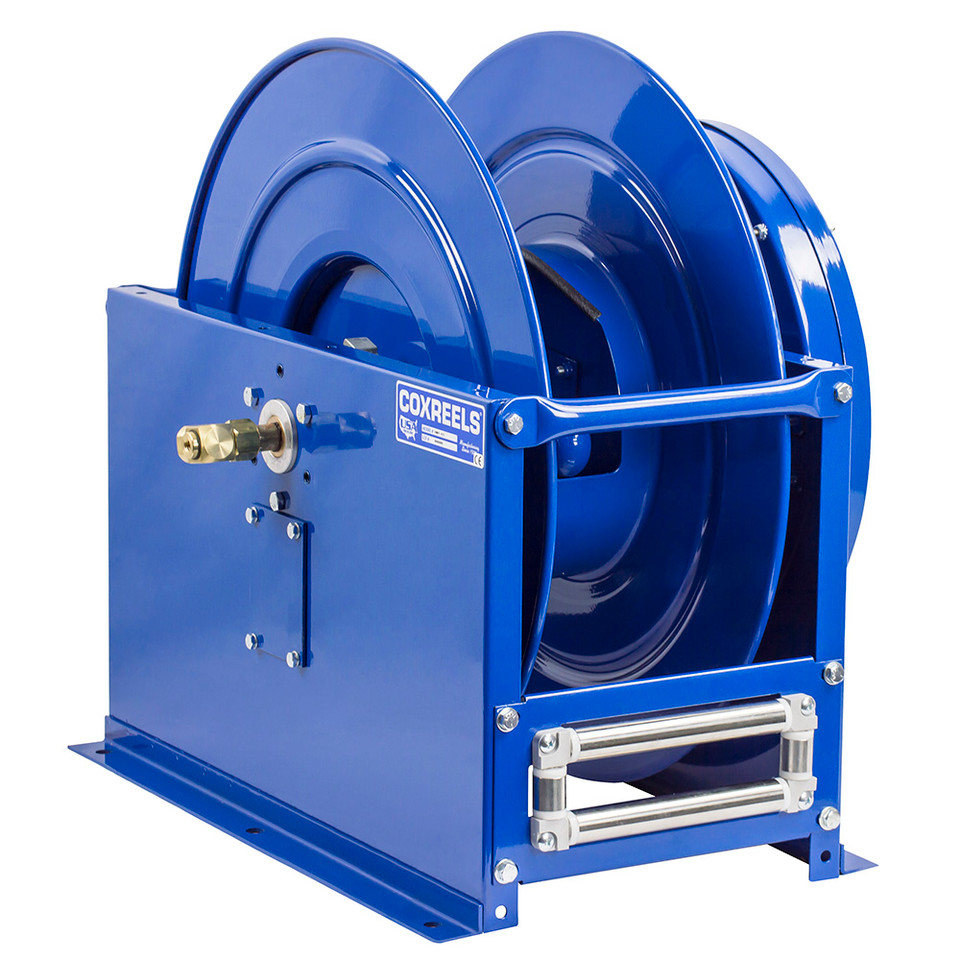

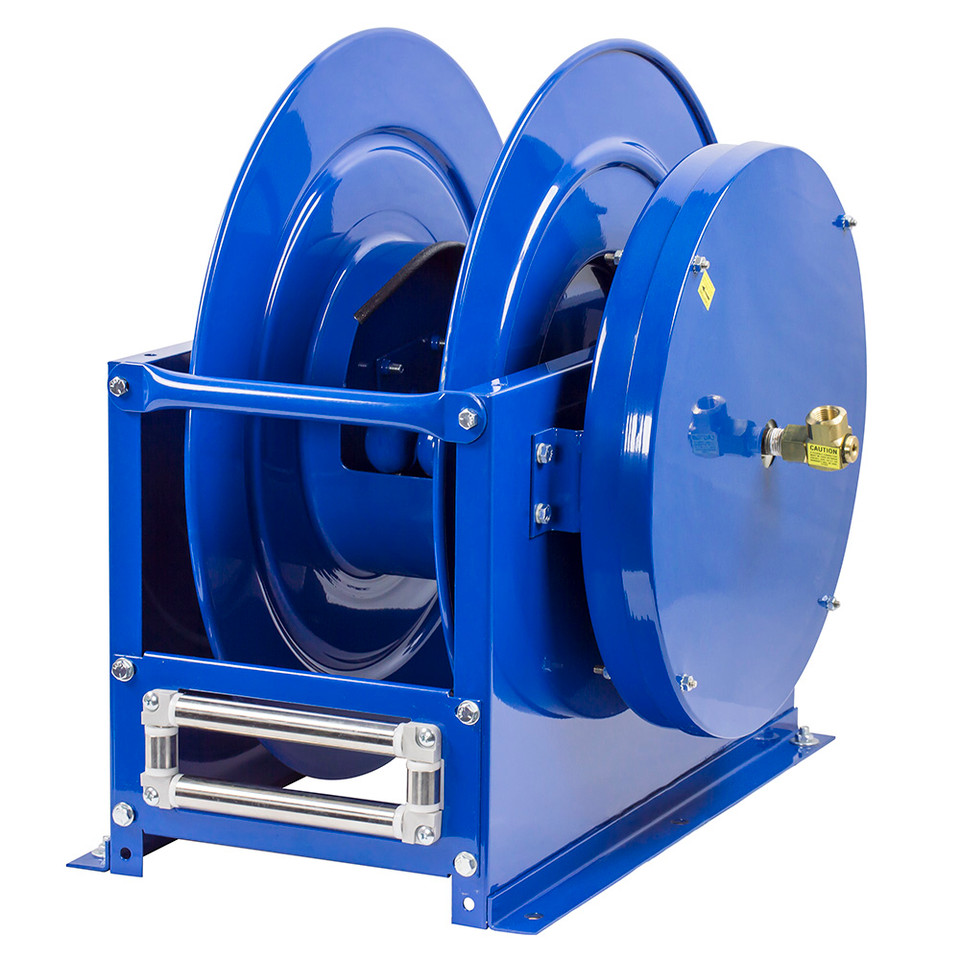

Designed for demanding, high-pressure fluid transfer applications, the Coxreels DMPL-350 dual-hose spring-rewind reel provides automatic hose retrieval while keeping twin-hose assemblies organized and protected. Featuring the DP Series, a 3/8" hose capacity, 50 ft hose length, and a 3000 PSI maximum operating pressure, this reel is ideal for hydraulic systems, lubrication equipment, industrial maintenance, and manufacturing environments where two high-pressure hose lines must be deployed and stored together. Its spring rewind mechanism automatically retracts the hoses after use, reducing manual handling while helping maintain a cleaner, safer, and more productive workspace.
Supplied in a less hose configuration, the DMPL-350 allows users to install compatible hose assemblies that match their pressure, media, and connection requirements. The dual hose design keeps both hose lines neatly organized on a single reel, helping minimize hose twisting, abrasion, and tangling while extending hose service life and improving overall workplace efficiency.

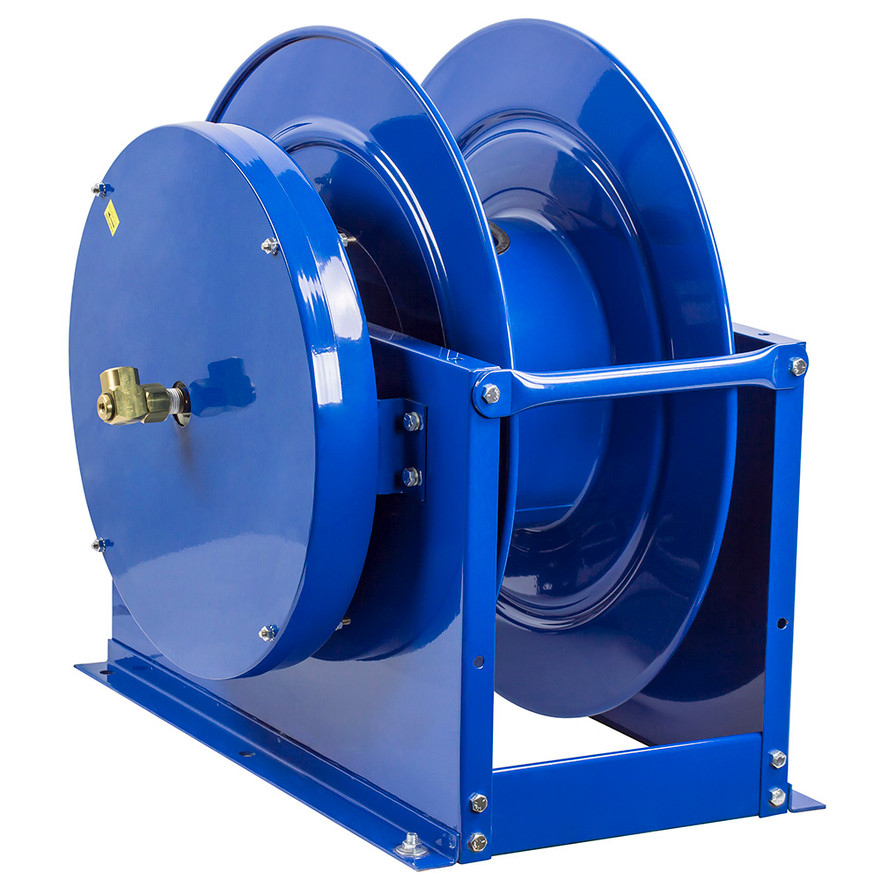

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Dual Hose Spring Rewind Reel | Series: DP Series | Configuration: Less Hose | Hose I.D.: 3/8" | Hose Capacity: 50 ft | Max Pressure: 3000 PSI | Rewind: Spring Rewind
Features:
- Spring rewind mechanism automatically retracts both hose lines for quick and efficient hose storage.
- Dual hose configuration manages two independent high-pressure hose assemblies on a single reel.
- Designed to accommodate up to 50 feet of 3/8-inch hose capacity.
- Rated for operating pressures up to 3000 PSI when used with compatible hose assemblies and fittings.
- Less hose configuration allows users to install hose assemblies matched to their specific application requirements.
- DP Series construction provides dependable hose management for industrial and hydraulic service environments.
Made in USA:
Applications:
- Hydraulic systems requiring organized management of dual high-pressure hose assemblies.
- Industrial manufacturing facilities utilizing paired hydraulic or lubrication lines.
- Maintenance departments servicing machinery with twin fluid transfer hoses.
- Construction and heavy equipment service operations using high-pressure hydraulic hoses.
- General industrial applications where automatic hose rewind improves efficiency and reduces hose wear.
FAQs:
- Q: What does "less hose" mean?
A: This reel is supplied without hose, allowing you to install compatible hose assemblies that match your application's pressure, media, and fitting requirements. - Q: How does the spring rewind mechanism operate?
A: The internal spring automatically retracts both hose lines after use, reducing manual winding effort while keeping the hoses neatly organized. - Q: Can this reel manage two separate hose assemblies?
A: Yes. The dual hose configuration is designed to store and manage two independent hose lines on a single reel. - Q: Is this reel suitable for 3000 PSI applications?
A: Yes. The reel is rated for systems up to 3000 PSI when used with properly rated hose assemblies and compatible fittings.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | INLET/ OUTLET N.P.T. |
APRX. LBS. |
LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Two swivel joint inlets and two outlet risers to handle equal lengths of two hoses. Hoses can be different diameters, For applications 300 PSI and temperatures to 250° F.
|
|||||||||
| Please consult factory for reels with hose |
3/8" | 3/4" | 50 | 300 | 1/2" | - | DLPL-350 | 94 | 1 |
| 3/8" | 3/4" | 75 | 300 | 1/2" | - | DLPL-375 | 115 | 1 | |
| 3/8" | 3/4" | 100 | 300 | 1/2" | - | DLPL-3100 | 117 | 2 | |
| 1/2" | 7/8" | 50 | 300 | 1/2" | - | DLPL-450 | 97 | 1 | |
| 1/2" | 7/8" | 75 | 300 | 1/2" | - | DLPL-475 | 104 | 2 | |
| 1/2" | 7/8" | 100 | 300 | 1/2" | - | DLPL-4100 | 138 | 3 | |
| 3/4" | 1-1/4" | 25 | 300 | 3/4" | - | DLPL-525 | 93 | 4 | |
| 3/4" | 1-1/4" | 50 | 300 | 3/4" | - | DLPL-550 | 100 | 5 | |
|
MEDIUM PRESSURE Two swivel joint inlets and two outlet risers to handle equal lengths of two hoses. Hoses can be different diameters. For applications 3,000 PSI and temperatures to 250° F. For higher temperatures and pressures consult factory.
|
|||||||||
| Please consult factory for reels with hose |
3/8" | 13/16" | 50 | 3,000 | 1/2" | - | DMPL-350 | 99 | 1 |
| 3/8" | 13/16" | 75 | 3,000 | 1/2" | - | DMPL-375 | 128 | 1 | |
| 3/8" | 13/16" | 100 | 3,000 | 1/2" | - | DMPL-3100 | 120 | 2 | |
| 1/2" | 15/16" | 50 | 3,000 | 1/2" | - | DMPL-450 | 102 | 1 | |
| 1/2" | 15/16" | 75 | 3,000 | 1/2" | - | DMPL-475 | 115 | 2 | |
| 1/2" | 15/16" | 100 | 3,000 | 1/2" | - | DMPL-4100 | 138 | 3 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Rewind Hose Reel
- Series
- DP Series
- Hose Inside Diameter (in.)
- 3/8
- Hose Outside Diameter (in.)
- 13/16
- Hose Length (ft.)
- 50
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 3000
- Width (in.)
- 21.5
- Height (in.)
- 20.5
- Length (in.)
- 22.88
- Mounting Pattern (in.)
- 14M
- Mounting Pattern (in.)
- 22N
- Base (in.)
- 15.38X
- Base (in.)
- 21.5Y
