Coxreels DLPL-375 Dual Hose Spring Rewind Hose Reel | DP Series | 3/8" Hose Diameter | 75' Hose Length | 300 Max PSI | Less Hose

Built for dual low-pressure hose delivery, the Coxreels DLPL-375 Dual Hose Spring Rewind Hose Reel gives maintenance teams a reel-only platform for managing two hose runs from one spring-driven reel. This DP Series model is configured less hose and supports 3/8" I.D. hose with up to 75 ft hose capacity and a 300 PSI maximum pressure rating, making it useful where paired air, water, or oil lines need organized storage while the hose assemblies are selected separately. The DLPL-375 uses two swivel joint inlets and two outlet risers for dual hose applications. The DP Series frame is built with a sturdy box-style design and reinforced steel cross supports to add rigidity during payout and rewind. Because this model is supplied without hose, the buyer can choose compatible hose material, fittings, and end connections to match the media, pressure, temperature, and installation layout required for the job.

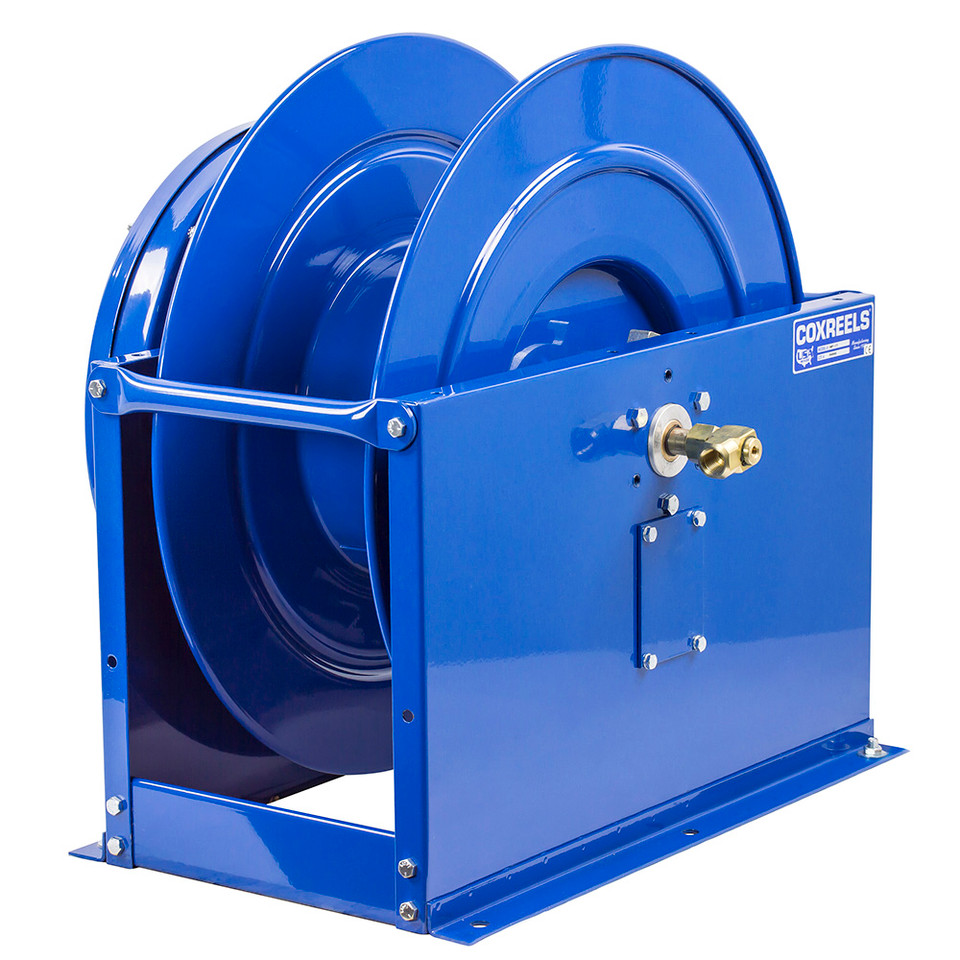

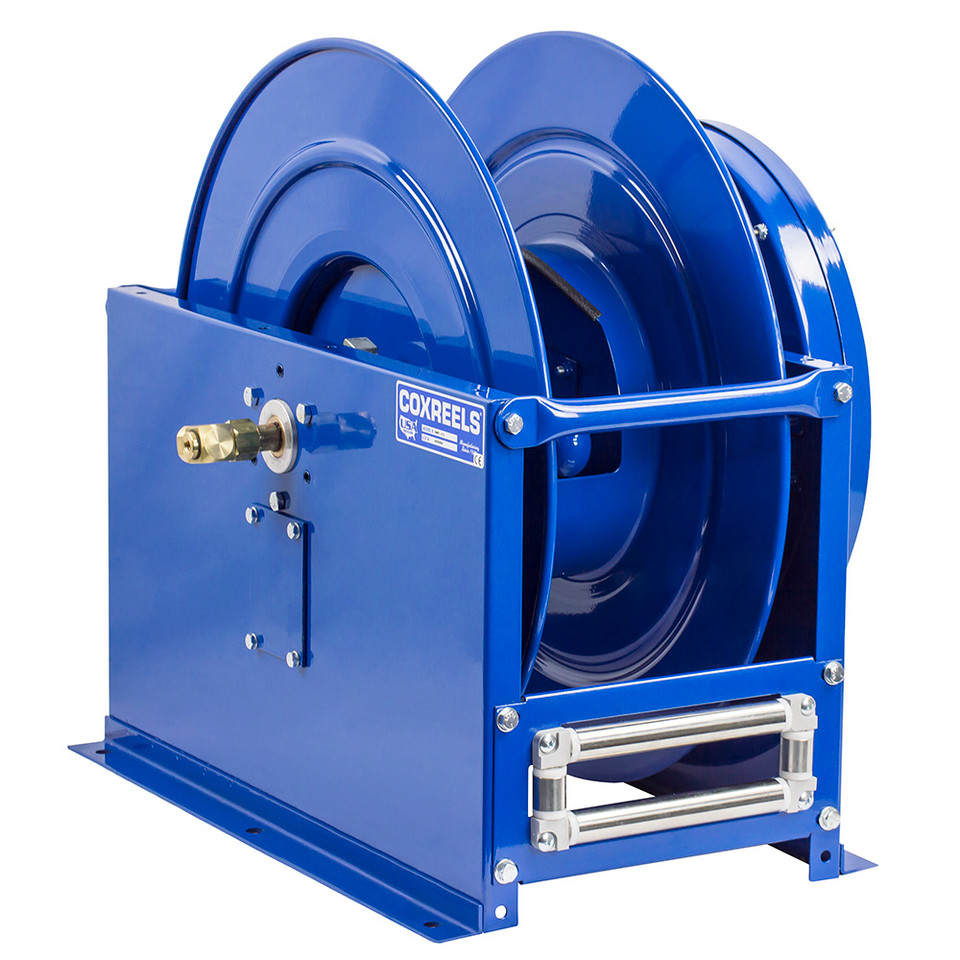

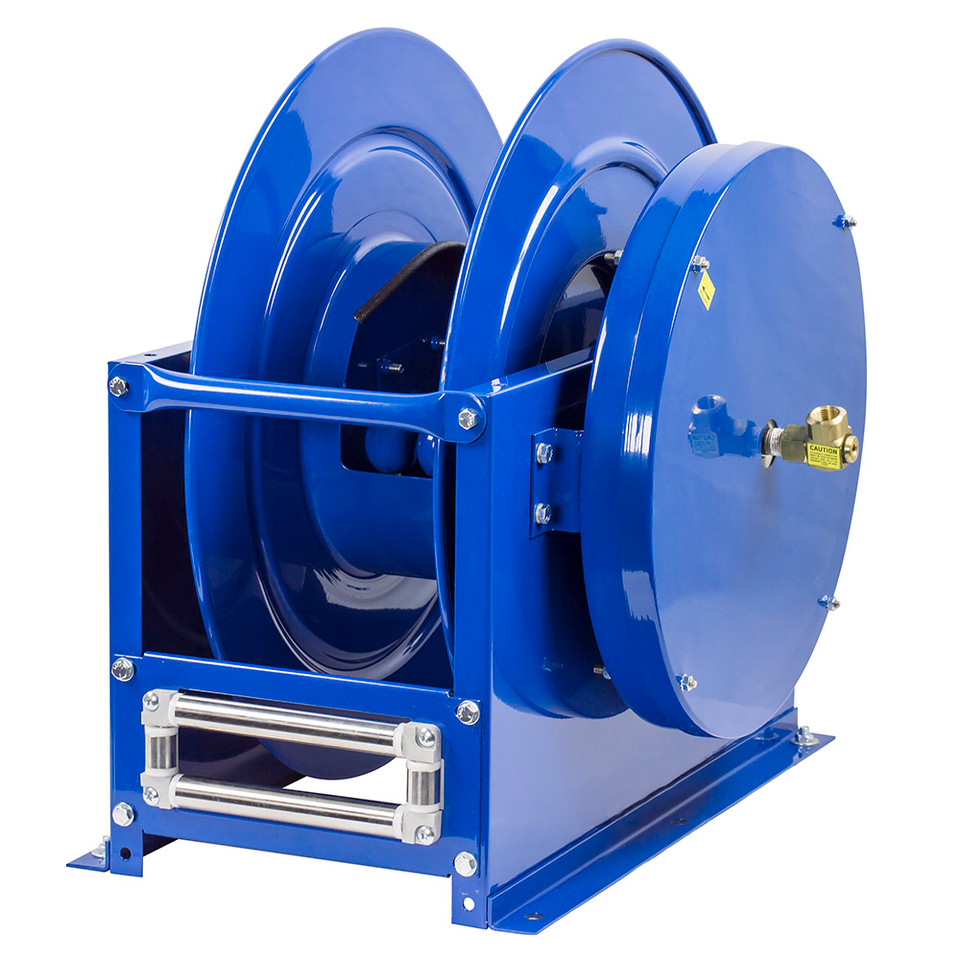

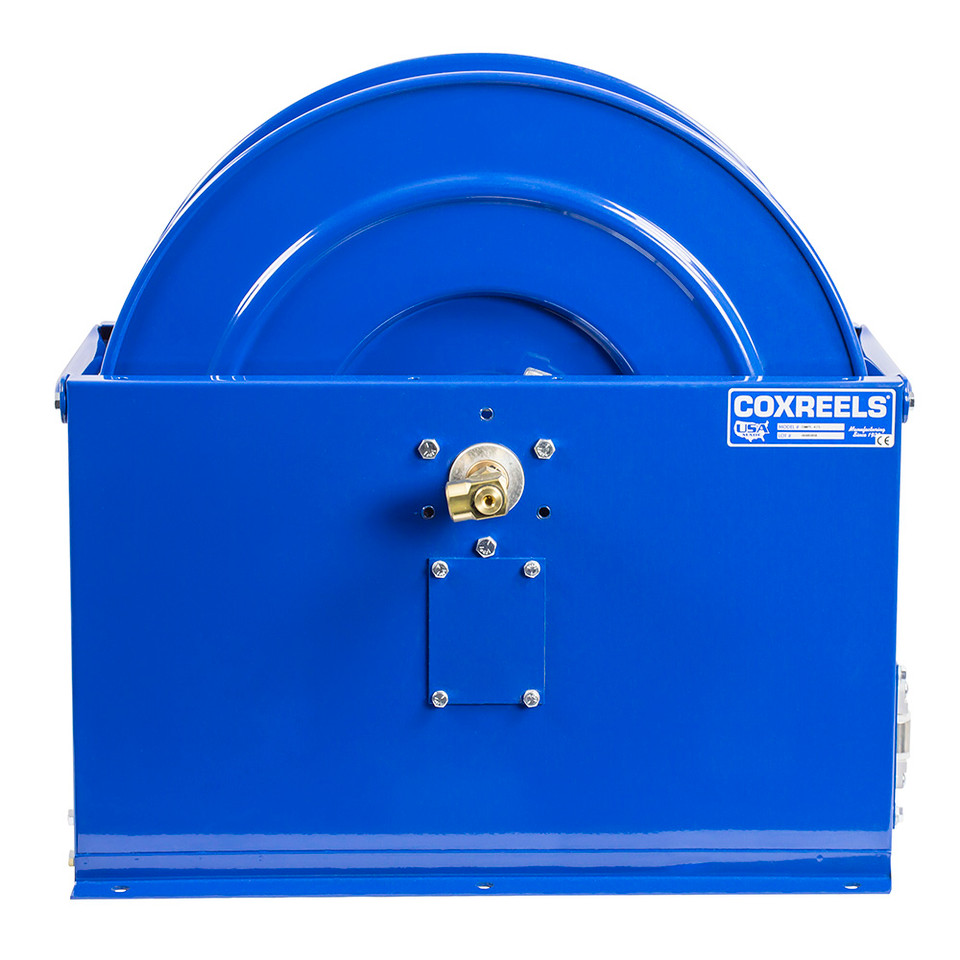

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Dual Hose Spring Rewind Hose Reel | Series: DP Series | Configuration: Less Hose | Pressure Class: Low Pressure | Hose I.D.: 3/8" | Maximum Hose O.D.: 3/4" | Hose Capacity: 75 ft | Max Pressure: 300 PSI | Inlet/Outlet: 1/2" NPT | Service: Air, Water, Oil | Max Temperature: 250°F | Approx. Weight: 115 lbs | Size Index: 1 | Overall Dimensions: 21-1/2" W x 20-1/2" H x 22-7/8" L | Base Dimensions: 15-3/8" x 21-1/2"

Features:

• Dual hose configuration uses two swivel inlets and two outlet risers to manage two hose runs from one reel.
• Less-hose configuration allows the buyer to install compatible 3/8" hose separately for the intended air, water, or oil application.
• 75 ft hose capacity provides longer reach than the 50 ft DLPL-350 configuration while retaining the same 3/8" hose size and 300 PSI pressure class.
• Two external fluid paths with machined solid brass 90° full-flow NPT swivel inlets support separate hose delivery through the reel.
• Nitrile swivel seals are used for the listed low-pressure service applications.
• Sturdy box-style frame design provides support for dual hose handling and large-volume delivery layouts.
• Low-profile outlet riser and open drum slot design help support even hose wrap during rewind.
• Long-lasting self-lubricated flange bearings support smooth reel rotation during payout and rewind.

Made in USA:

2 Year Warranty

Applications:

• Dual air, water, or oil service points where two hose lines need to be stored and deployed together from one reel.
• Industrial maintenance departments routing paired low-pressure service hoses near equipment, work cells, or utility stations.
• Fleet, truck, and equipment service facilities using two customer-supplied hose assemblies from a single reel location.
• Manufacturing plants that need organized dual hose storage for general low-pressure fluid handling or utility service.
• Mobile service vehicles and maintenance trailers where paired hoses need retractable storage without separate reel installations.

FAQs:

• Q: What does “less hose” mean on the Coxreels DLPL-375?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible hose separately, staying within the listed 3/8" I.D., 3/4" maximum O.D., 75 ft capacity, and 300 PSI pressure rating.
• Q: What makes this a dual hose reel?
  A: The DP Series uses two swivel joint inlets and two outlet risers, allowing the reel to manage two hose lines instead of a single hose. This is useful when two low-pressure service lines need to be stored and deployed together.
• Q: Can the two hoses be different diameters?
  A: Coxreels notes that DP Series dual hose reels can handle equal lengths of two hoses and that the hoses can be different diameters. The larger hose diameter determines the reel’s usable capacity, and the installed hoses must not exceed the listed maximum hose outside diameter.
• Q: What fluids can the DLPL-375 be used with?
  A: The low-pressure DP Series configuration is listed for air, water, or oil service. Always confirm the selected hoses, fittings, seals, and media are compatible with the exact pressure and temperature conditions before installation.
• Q: Can this reel be mounted on a wall, floor, or service vehicle?
  A: Yes. The DP Series reel can be adjusted for wall, floor, vehicle, and overhead mounting positions when properly installed to a suitable mounting structure.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
