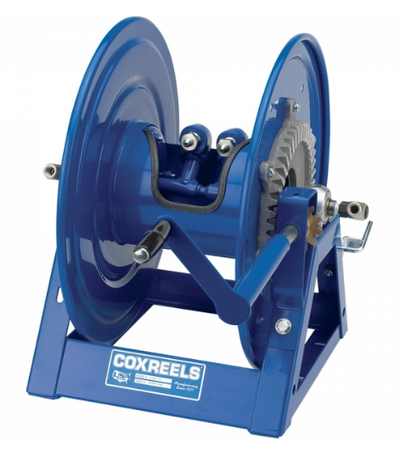

Built for dual hydraulic emergency rescue systems and other high-pressure hydraulic tools, the Coxreels 1275HPL-B-8 hand crank rim rewind hose reel provides organized hose storage for systems requiring 1/4" hose I.D., up to 135 ft of hose capacity, and a 10,000 PSI maximum pressure rating. The 1275HP Series is built around a dual-hydraulic layout, meaning it is configured to manage two hydraulic lines together for paired tool operation, cleaner deployment, and easier rewind after use.
This reel uses a manual hand crank rewind for controlled hose retrieval without electrical or pneumatic rewind components. Its outlet option B configuration provides -5 JIC Male outlets with 1/2" x 3/8" reducers, while the two high-pressure 90° full-flow melanized steel 1/4" swivel inlets help route hydraulic flow through the reel while reducing hose twist during pull-out and rewind.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Rim Rewind Hose Reel | Series: 1275HP Series | Configuration: Less Hose | Application: Dual Hydraulics | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 135 ft | Max Pressure: 10,000 PSI | Outlet Option: B, -5 JIC Male & 1/2" x 3/8" Reducer | Swivel Inlets: Two 90° full-flow melanized steel 1/4" inlets | Swivel Seals: VITON | Overall Dimensions: 17.5" W x 18.63" H x 17.63" L | Mounting Pattern: 11.44" M x 10" N | Base: 13.38" X x 15.38" Y
Features:
- Configured for dual hydraulic emergency rescue systems and other high-pressure hydraulic tools.
- Hand crank rim rewind gives the user direct manual control over hose retrieval and storage.
- Two high-pressure 90° full-flow melanized steel 1/4" swivel inlets support paired hydraulic line routing.
- VITON swivel seals are used for compatibility with high-pressure hydraulic service.
- Two low profile outlet risers and an open drum slot help promote a flat, smooth hose wrap without pinching.
- All-welded steel "A" frame construction strengthens the reel structure without relying on a bolted frame.
- CNC-spun ribbed discs with rolled edges provide added strength, hose protection, and safer handling around the reel edges.
- Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation during pull-out and rewind.
Made in USA:
Applications:
- Emergency rescue equipment - managing paired hydraulic lines for rescue tools where organized deployment and controlled rewind are important.
- High-pressure hydraulic tool stations - storing 1/4" hydraulic hose for shop, mobile, or field service use.
- Fleet and service vehicles - keeping hydraulic hose organized on trucks, trailers, and equipment service rigs.
- Industrial maintenance areas - supporting high-pressure hydraulic tool setups in MRO departments and plant maintenance spaces.
- Fire, safety, and municipal service operations - helping reduce hose clutter around rescue systems and hydraulic power units.
FAQs:
- Q: What does less hose mean on the Coxreels 1275HPL-B-8?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 1/4" I.D., 1/2" O.D. hydraulic hose separately. - Q: Is this reel for one hydraulic hose or two hydraulic hoses?
A: The 1275HP Series is a dual hydraulic reel. It is intended for paired hydraulic hose applications, such as emergency rescue systems and other high-pressure hydraulic tools that use two lines. - Q: What does outlet option B mean?
A: Coxreels outlet option B refers to -5 JIC Male outlets with 1/2" x 3/8" reducers. Confirm the required hose end connection before ordering hose or adapters. - Q: Can this reel be used with a 10,000 PSI hydraulic system?
A: Yes, this model is listed with a 10,000 PSI maximum pressure rating. The hose, fittings, adapters, and hydraulic system components must also be rated for the same service pressure. - Q: Does the hand crank version require power?
A: No. Hand crank rim rewind is manually operated, so it does not require an electric motor, air motor, or hydraulic rewind drive.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | DESCRIPTION | INLET | OUTLET | CAPACITY 1/4" I.D. |
CAPACITY 3/8" I.D. |
PSI | APRX. LBS |
|
|
1125HP SERIES 10,000 psi - two 1/4" 90° inlets. These reels are an essential component to operate hydraulic tools requiring 10,000 psi can be easily managed safely for efficient use in emergency situations.
|
||||||||
| 1275HPL-B-8 | Rim Rewind | 1/4" | 1/2" | 135' | 85' | 10,000* | 37 | 3 |
| 1275HPL-B-8-C | Geared Crank | 1/4" | 1/2" | 135' | 85' | 10,000* | 43 | 3 |
| 1275HPL-B-8-A | Air Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 50 | 3 |
| 1275HPL-B-8-E | Electric Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 68 | 3 |
| 1275HPL-B-12 | Rim Rewind | 1/4" | 1/2" | 200' | 125' | 10,000* | 39 | 4 |
| 1275HPL-B-12-C | Geared Crank | 1/4" | 1/2" | 200' | 125' | 10,000* | 45 | 4 |
| 1275HPL-B-12-A | Air Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 52 | 4 |
| 1275HPL-B-12-E | Electric Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 70 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Hand Crank Rim Rewind Hose Reel
- Series
- 1275HP Series
- Hose Inside Diameter (in.)
- 1/4
- Hose Outside Diameter (in.)
- 1/2
- Hose Length (ft.)
- 135
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 10000
