When dual hydraulic hoses need organized storage without powered rewind, the Coxreels 1275HPL-B-12 provides a hand crank rim rewind solution for emergency rescue systems, hydraulic power tools, and high-pressure fluid service. This 1275HP Series reel is rated for 10,000 PSI and holds up to 200 ft of 1/4" I.D. hose, giving crews a longer hose reach while maintaining a controlled, compact reel footprint.
The 1275HPL-B-12 is supplied less hose, allowing the buyer to choose hydraulic hose that matches the system's working pressure, fluid type, temperature range, and fitting requirements. Its hand crank rim rewind gives operators direct control during hose retrieval, while the dual hydraulic plumbing layout supports paired hose runs used on rescue tools, hydraulic service equipment, and fixed maintenance stations.

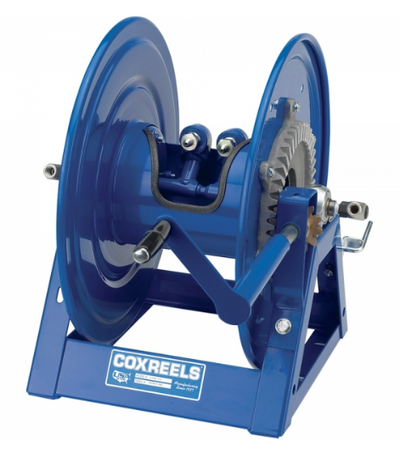

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Dual Hydraulic Hose Reel | Series: 1275HP Series | SKU: 1275HPL-B-12 | Configuration: Less Hose | Rewind: Hand Crank Rim Rewind | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 200 ft | Max Pressure: 10,000 PSI | Outlet Option: B -5 JIC Male & 1/2" x 3/8" Reducer
Features:
- Built for dual hydraulic emergency rescue systems and other high-pressure hydraulic tool applications.
- Hand crank rim rewind gives the operator direct control when retrieving longer hydraulic hose lengths.
- Two high-pressure 90° full-flow melanized steel 1/4" swivel inlets support paired hydraulic line routing.
- VITON swivel seals are used for demanding hydraulic reel service.
- Two low-profile outlet risers and an open drum slot help produce a flat, smooth hose wrap.
- All-welded steel “A” frame construction strengthens the reel structure without a bolted frame assembly.
- Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation.
- CPC powder coat finish helps resist chips and corrosion in shop, vehicle, and field environments.
Made in USA:
Applications:
- Emergency rescue equipment: Managing paired hydraulic hose lines used with rescue tools where hose length, storage control, and pressure rating matter.
- Hydraulic tool service: Storing supply and return hoses for high-pressure hydraulic tools in maintenance bays and field service setups.
- Fire apparatus and rescue vehicles: Mounting a longer-capacity reel where hose deployment and manual rewind control are preferred.
- Industrial MRO: Keeping hydraulic hoses organized at fixed maintenance stations, power units, and repair areas.
- Fleet and utility maintenance: Reducing loose hose on trucks, trailers, and service rigs while keeping hydraulic lines ready for the next job.
FAQs:
- Q: What does less hose mean for the 1275HPL-B-12?
A: It means the reel is supplied without hose installed. Compatible hydraulic hose must be selected separately based on pressure rating, hose size, fluid compatibility, temperature range, and fitting requirements. - Q: Is this model hand crank or motor rewind?
A: The 1275HPL-B-12 is a hand crank rim rewind reel. Coxreels also offers motor rewind versions in the 1275HP Series, so confirm the exact suffix when replacing an existing reel. - Q: What is the benefit of a hand crank rim rewind reel?
A: Hand crank rim rewind allows controlled manual retrieval without requiring an electric or air motor. This can be useful on service vehicles, rescue apparatus, or maintenance stations where simple manual operation is preferred. - Q: Can this reel be used for hydraulic rescue tools?
A: Yes, the 1275HP Series is built for dual hydraulic emergency rescue systems and other high-pressure hydraulic tools when the reel, hose, fittings, and fluid are compatible with the system. - Q: Why does the 10,000 PSI pressure rating matter?
A: Hydraulic systems operate at much higher pressures than standard air or water lines. Every component in the circuit, including the reel, hose, fittings, and swivel, must be rated for the system's working pressure.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | DESCRIPTION | INLET | OUTLET | CAPACITY 1/4" I.D. |
CAPACITY 3/8" I.D. |
PSI | APRX. LBS |
|
|
1125HP SERIES 10,000 psi - two 1/4" 90° inlets. These reels are an essential component to operate hydraulic tools requiring 10,000 psi can be easily managed safely for efficient use in emergency situations.
|
||||||||
| 1275HPL-B-8 | Rim Rewind | 1/4" | 1/2" | 135' | 85' | 10,000* | 37 | 3 |
| 1275HPL-B-8-C | Geared Crank | 1/4" | 1/2" | 135' | 85' | 10,000* | 43 | 3 |
| 1275HPL-B-8-A | Air Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 50 | 3 |
| 1275HPL-B-8-E | Electric Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 68 | 3 |
| 1275HPL-B-12 | Rim Rewind | 1/4" | 1/2" | 200' | 125' | 10,000* | 39 | 4 |
| 1275HPL-B-12-C | Geared Crank | 1/4" | 1/2" | 200' | 125' | 10,000* | 45 | 4 |
| 1275HPL-B-12-A | Air Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 52 | 4 |
| 1275HPL-B-12-E | Electric Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 70 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
