When paired hydraulic lines need to be stored, deployed, and rewound without hose tangle, the Coxreels 1275HPL-B-8-C bevel geared hand crank hose reel provides a compact reel platform for dual hydraulic systems. This 1275HP Series reel is built for 1/4" I.D. hose with 135 ft hose capacity and a 10,000 PSI maximum pressure rating, making it suited for emergency rescue systems and other high-pressure hydraulic tool setups where hose control matters as much as pressure capability.
The bevel geared hand crank rewind uses a geared crank mechanism to make manual hose retrieval more controlled than a direct rim rewind, while the removable handle helps reduce the reel footprint for storage or vehicle mounting. Dual 90° full-flow melanized steel 1/4" swivel inlets route hydraulic flow through the reel, and the low-profile outlet riser design helps the hose wrap flatter across the drum to reduce crimping during rewind.

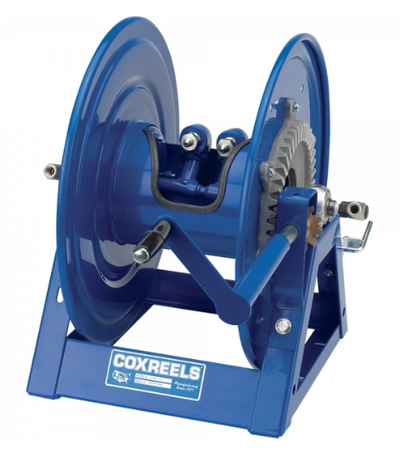

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Bevel Geared Hand Crank Hose Reel | Series: 1275HP Series | Configuration: Less Hose | Application: Dual Hydraulics | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 135 ft | Max Pressure: 10,000 PSI | Outlet Option: B, -5 JIC Male & 1/2" x 3/8" Reducer | Swivel Inlets: Two high-pressure 90° full-flow melanized steel 1/4" swivel inlets | Swivel Seals: VITON | Ship Weight: 43 lbs | Overall Dimensions: 17.5" W x 18.63" H x 17.63" L | Mounting Pattern: 11.44" M x 10" N | Base: 13.38" X x 15.38" Y
Features:
- Bevel gear hand crank rewind with removable handle for controlled manual hose retrieval and compact storage.
- Configured for dual hydraulic emergency rescue systems and other high-pressure hydraulic tools.
- Two high-pressure 90° full-flow melanized steel 1/4" swivel inlets support paired hydraulic hose routing.
- VITON swivel seals support hydraulic service in high-pressure applications.
- Two low-profile outlet risers and open drum slot design promote a flat, smooth hose wrap.
- Professional grade steel construction with a welded steel "A" frame base for stable mounting.
- CNC-spun ribbed discs with rolled edges help protect hose and improve strength around the reel drum.
- Permanently lubricated, self-aligning pillow block bearings support smooth reel rotation during pull-out and rewind.
Made in USA:
Applications:
- Emergency rescue systems - managing paired hydraulic lines used with rescue tools and high-pressure power units.
- Fire and safety apparatus - mounting hydraulic hose storage on trucks, trailers, and response equipment where compact rewind control is needed.
- Industrial hydraulic tool stations - organizing 1/4" high-pressure hose for maintenance, testing, and tool operation areas.
- Fleet and utility service vehicles - storing dual hydraulic hose runs for field repair and mobile equipment service.
- Shop and plant MRO areas - reducing hose clutter around hydraulic workstations while keeping hose ready for deployment.
FAQs:
- Q: What does less hose mean on the Coxreels 1275HPL-B-8-C?
A: It means the reel is supplied without hose installed. Compatible hydraulic hose must be selected and installed separately. - Q: What is the advantage of the bevel geared hand crank?
A: The bevel geared hand crank provides geared manual rewind instead of direct rim rewind. This gives the user controlled hose retrieval while still avoiding electric, air, or hydraulic rewind components. - Q: Is this reel for dual hydraulic lines?
A: Yes. The 1275HP Series is configured for dual hydraulic applications, meaning it is intended to manage two hydraulic hose lines together. - Q: What outlet does the B version use?
A: Outlet option B is listed as -5 JIC Male with a 1/2" x 3/8" reducer. Check the hose end and adapter requirements before installation. - Q: Can this reel be used on a 10,000 PSI system?
A: Yes, this model has a 10,000 PSI maximum pressure rating. The hose, fittings, adapters, and hydraulic power unit must also be rated for the same pressure level.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | DESCRIPTION | INLET | OUTLET | CAPACITY 1/4" I.D. |
CAPACITY 3/8" I.D. |
PSI | APRX. LBS |
|
|
1125HP SERIES 10,000 psi - two 1/4" 90° inlets. These reels are an essential component to operate hydraulic tools requiring 10,000 psi can be easily managed safely for efficient use in emergency situations.
|
||||||||
| 1275HPL-B-8 | Rim Rewind | 1/4" | 1/2" | 135' | 85' | 10,000* | 37 | 3 |
| 1275HPL-B-8-C | Geared Crank | 1/4" | 1/2" | 135' | 85' | 10,000* | 43 | 3 |
| 1275HPL-B-8-A | Air Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 50 | 3 |
| 1275HPL-B-8-E | Electric Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 68 | 3 |
| 1275HPL-B-12 | Rim Rewind | 1/4" | 1/2" | 200' | 125' | 10,000* | 39 | 4 |
| 1275HPL-B-12-C | Geared Crank | 1/4" | 1/2" | 200' | 125' | 10,000* | 45 | 4 |
| 1275HPL-B-12-A | Air Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 52 | 4 |
| 1275HPL-B-12-E | Electric Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 70 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Bevel Geared Hand Crank Hose Reel
- Series
- 1275HP Series
- Hose Inside Diameter (in.)
- 1/4
- Hose Outside Diameter (in.)
- 1/2
- Hose Length (ft.)
- 135
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 10000
