Built for large-diameter hose storage where powered rewind is not required, the Coxreels 1185-2028 hand crank hose reel provides 1-1/2" I.D. x 125 ft hose capacity with a 1500 PSI maximum pressure rating. The 1185 Series is made for long lengths of large hose used in increased-volume delivery applications, giving industrial maintenance teams, fleet shops, utility crews, and mobile service operators a sturdy reel platform for heavier hose setups.
This model is supplied less hose, allowing the buyer to install a compatible 1-1/2" hose matched to the fluid, pressure, temperature, and fitting requirements of the system. The hand crank rewind gives operators direct manual control over retrieval, while Coxreels' low profile outlet riser and open drum slot help guide hose into a flatter, smoother wrap. An all-welded steel 'A' frame base supports the added weight of large hose without relying on a compact pedestal-style frame.

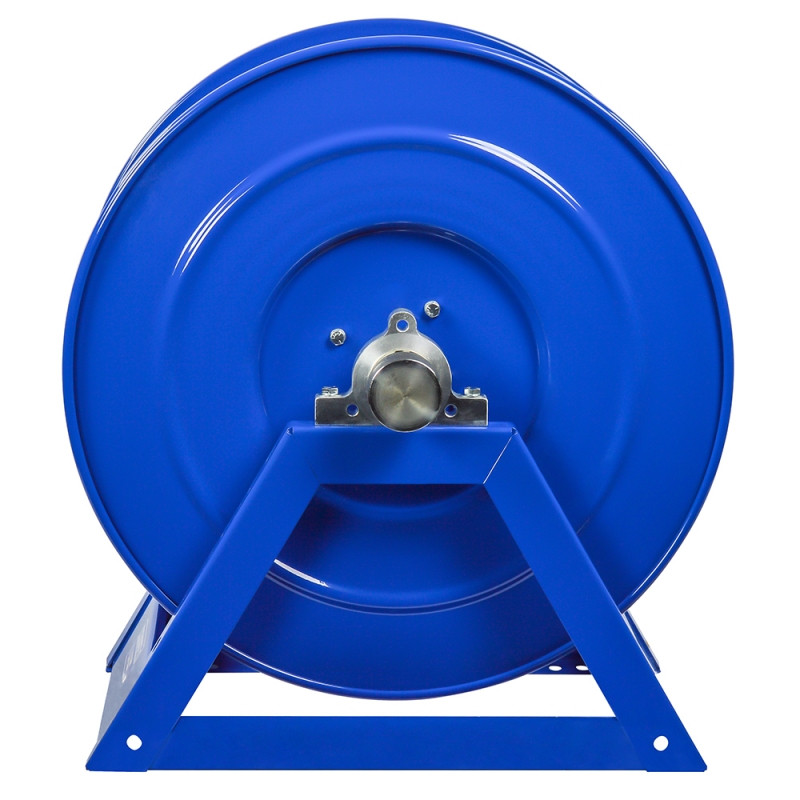

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 1185 Series | Model: 1185-2028 | Configuration: Less Hose | Hose I.D.: 1-1/2" | Hose O.D.: 2-1/16" | Hose Capacity: 125 ft | Hose Included: No | Max Pressure: 1500 PSI | Ship Weight: 109 lbs | Overall Dimensions: 33.5" W x 30" H x 28" L | Mounting Pattern: 23.25" M x 18.5" N | Base: 25.5" X x 24.5" Y
Features:
- Hand crank rewind provides direct manual control for winding large-diameter hose back onto the reel.
- 1185 Series design handles long lengths of large diameter hose for increased volume delivery applications.
- 1-1/2" x 125 ft hose capacity supports large hose installations where smaller reels do not provide enough diameter or storage capacity.
- All welded steel 'A' frame construction provides strength for heavier hose loads and mobile applications.
- Exclusive low profile outlet riser and open drum slot design provide a non-crimping, flat, smooth hose wrap.
- External fluid path with full-flow NPT swivel inlet supports efficient flow through the reel and simplifies seal access.
- Lubricated horizontal surface mount bearings support smooth drum rotation during payout and rewind.
- Adjustable tension brake helps prevent free-wheeling during operation.
- Rolled edges and ribbed discs provide strength, hose protection, and safer handling around the reel drum.
- CPC powder coat finish helps resist chips and rust in industrial, fleet, and service environments.
Made in USA:
Applications:
- Industrial fluid transfer stations that require 125 ft of large 1-1/2" hose capacity from a fixed reel location.
- Fleet and heavy equipment service areas where large-diameter hose needs to be stored neatly after maintenance, fueling support, or utility work.
- Plant maintenance and MRO departments handling high-volume air, water, oil, or compatible fluid transfer through customer-supplied hose.
- Construction, utility, and field service operations that need a rugged 'A' frame reel platform for long hose storage.
- Mobile service trucks and trailers where manual crank rewind is preferred over air or electric rewind systems.
FAQs:
- Q: Does the Coxreels 1185-2028 include hose?
A: No. This model is supplied less hose. The buyer must install a compatible 1-1/2" I.D. hose that matches the applications pressure, temperature, fluid, and fitting requirements. - Q: What hose size will this reel hold?
A: This reel is listed for 1-1/2" I.D. hose with a 2-1/16" O.D. and 125 ft capacity. Hose outside diameter matters because a larger O.D. hose can reduce the amount of hose the reel can safely store. - Q: Can this reel be used at 1500 PSI?
A: The reel is rated to 1500 PSI, but the final system pressure must not exceed the lowest-rated component in the hose assembly. Confirm the installed hose, fittings, swivel, and system requirements before pressurizing. - Q: Why choose a hand crank reel instead of an air motor rewind model?
A: A hand crank reel is a practical choice when manual rewind is acceptable and the job does not require powered retrieval. It also avoids the need for compressed air or electrical power at the reel location. - Q: What is the benefit of the 1185 Series 'A' frame design?
A: The all-welded steel 'A' frame provides a broad, stable structure for large-diameter hose. This helps support heavier hose loads better than compact reel frames used for smaller shop hose.
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required | INLET SWIVEL & OUTLET RISER | PSI | APRX. LBS. | SIZE INDEX | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
1185 SERIES - IN-LINE SWIVEL
|
|||||||||||
| 1185-2028 | 1-1/2" | 2-1/16" | 125 | 1-1/4" | 1-13/16" | 180 | 1-1/2" F NPT | 1,500 | 109 | 5 | |
| 1185-2028-A | 1-1/2" | 2-1/16" | 125 | 1-1/4" | 1-13/16" | 180 | 1-1/2" F NPT | 1,500 | 109 | 5 | |
| 1185-2028-AB | 1-1/2" | 2-1/16" | 125 | 1-1/4" | 1-13/16" | 180 | 1-1/2" F NPT | 1,500 | 109 | 5 | |
| 1185-2028-C | 1-1/2" | 2-1/16" | 125 | 1-1/4" | 1-13/16" | 180 | 1-1/2" F NPT | 1,500 | 109 | 5 | |
| 1185-2028-E | 1-1/2" | 2-1/16" | 125 | 1-1/4" | 1-13/16" | 180 | 1-1/2" F NPT | 1,500 | 109 | 5 | |
| 1185-2028-EA | 1-1/2" | 2-1/16" | 125 | 1-1/4" | 1-13/16" | 180 | 1-1/2" F NPT | 1,500 | 109 | 5 | |
| 1185-2028-ED | 1-1/2" | 2-1/16" | 125 | 1-1/4" | 1-13/16" | 180 | 1-1/2" F NPT | 1,500 | 109 | 5 | |
| 1185-2028-EF | 1-1/2" | 2-1/16" | 125 | 1-1/4" | 1-13/16" | 180 | 1-1/2" F NPT | 1,500 | 109 | 5 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
