Built for powered retrieval of large-diameter hose in increased-volume delivery applications, the Coxreels 1185-2028-A #4 Gast air motor rewind hose reel provides 1-1/2" I.D. x 125 ft hose capacity with a 1500 PSI maximum pressure rating. The 1185 Series is made to handle long lengths of heavy hose in industrial maintenance, fleet service, mobile equipment, utility, and plant operations where hand winding may be too slow or physically demanding.
This model is supplied less hose, allowing the buyer to install a compatible 1-1/2" hose matched to the fluid, pressure, temperature, and fitting requirements of the application. The #4 Gast air motor rewind uses compressed air to power hose retrieval, while Coxreels' all-welded steel 'A' frame supports the added weight of large hose. The low profile outlet riser and open drum slot help produce a flatter, smoother hose wrap, and the adjustable tension brake helps control drum movement during operation.

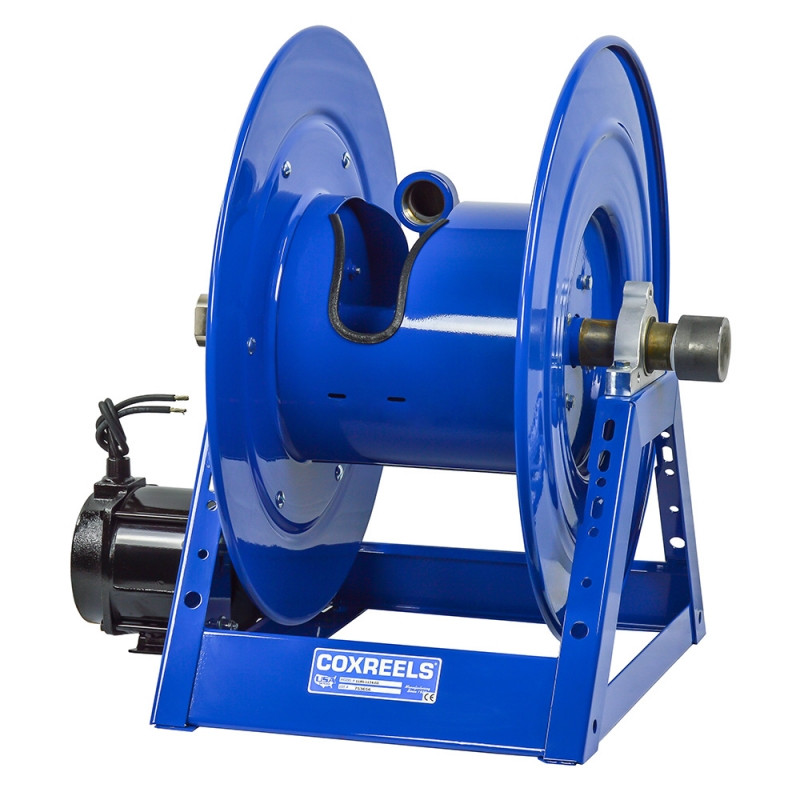

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Air Motor Rewind Hose Reel | Series: 1185 Series | Model: 1185-2028-A | Motor: #4 Gast Air Motor | Configuration: Less Hose | Hose I.D.: 1-1/2" | Hose O.D.: 2-1/16" | Hose Capacity: 125 ft | Hose Included: No | Max Pressure: 1500 PSI | Ship Weight: 116 lbs | Overall Dimensions: 31.88" W x 30" H x 28" L | Mounting Pattern: 23.25" M x 18.5" N | Base: 25.5" X x 24.5" Y
Features:
- #4 Gast air motor rewind uses compressed air to power hose retrieval, reducing the manual effort required to wind long, large-diameter hose.
- 1185 Series design handles long lengths of large diameter hose for increased volume delivery applications.
- 1-1/2" x 125 ft hose capacity supports large hose installations where smaller reels do not provide enough diameter or storage capacity.
- All welded steel 'A' frame construction provides strength for heavier hose loads and mobile applications.
- Exclusive low profile outlet riser and open drum slot design provide a non-crimping, flat, smooth hose wrap.
- External fluid path with full-flow NPT swivel inlet supports efficient flow through the reel and simplifies seal access.
- Lubricated horizontal surface mount bearings support smooth drum rotation during payout and motorized rewind.
- Adjustable tension brake helps prevent free-wheeling during operation.

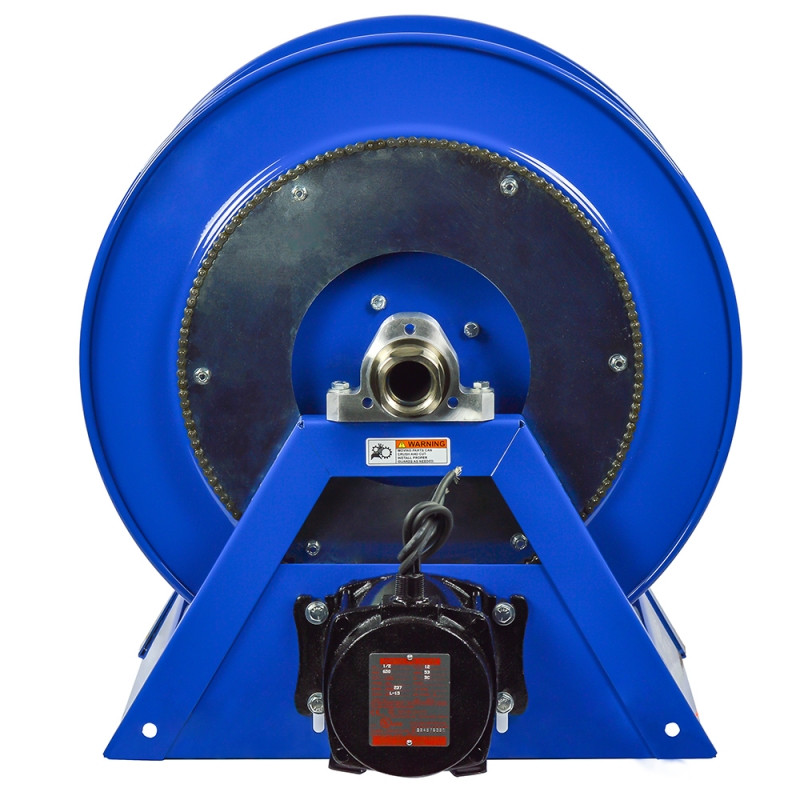

- Reliable chain and sprocket drive supports motor-driven rewind operation.
- Rolled edges and ribbed discs provide strength, hose protection, and safer handling around the reel drum.
- CPC powder coat finish helps resist chips and rust in industrial, fleet, utility, and service environments.
Made in USA:
Applications:
- Industrial fluid transfer stations that require 125 ft of large 1-1/2" hose capacity with powered rewind.
- Fleet and heavy equipment service areas where large-diameter hose needs to be retrieved and stored neatly after use.
- Mobile service trucks and trailers where an air motor rewind reel helps manage heavy hose without hand cranking.
- Plant maintenance and MRO departments handling high-volume air, water, oil, or compatible fluid transfer through customer-supplied hose.
- Construction, utility, and field service operations that need a rugged 'A' frame reel platform for long hose storage.
FAQs:
- Q: Does the Coxreels 1185-2028-A include hose?
A: No. This model is supplied less hose. The buyer must install a compatible 1-1/2" I.D. hose that matches the application's pressure, temperature, fluid, and fitting requirements. - Q: What does #4 Gast air motor rewind' mean?
A: It means the reel uses a Gast compressed-air motor to power hose rewind. This is useful when handling long or heavy hose that would take more time and effort to retrieve by hand crank. - Q: What hose size will this reel hold?
A: This reel is listed for 1-1/2" I.D. hose with a 2-1/16" O.D. and 125 ft capacity. Hose outside diameter is important because a larger O.D. hose can reduce the amount of hose the reel can safely store. - Q: Can this reel be used at 1500 PSI?
A: The reel is rated to 1500 PSI, but the final system pressure must not exceed the lowest-rated component in the hose assembly. Confirm the installed hose, fittings, swivel, and system requirements before pressurizing. - Q: Why choose an air motor rewind reel instead of the hand crank 1185-2028?
A: Air motor rewind is useful when hose weight, hose length, or frequent retrieval makes manual cranking inefficient. It is especially helpful on mobile service equipment and high-use industrial hose stations with compressed air available.
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required | INLET SWIVEL & OUTLET RISER | PSI | APRX. LBS. | SIZE INDEX | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
1185 SERIES - IN-LINE SWIVEL
|
|||||||||||
| 1185-2028 | 1-1/2" | 2-1/16" | 125 | 1-1/4" | 1-13/16" | 180 | 1-1/2" F NPT | 1,500 | 109 | 5 | |
| 1185-2028-A | 1-1/2" | 2-1/16" | 125 | 1-1/4" | 1-13/16" | 180 | 1-1/2" F NPT | 1,500 | 109 | 5 | |
| 1185-2028-AB | 1-1/2" | 2-1/16" | 125 | 1-1/4" | 1-13/16" | 180 | 1-1/2" F NPT | 1,500 | 109 | 5 | |
| 1185-2028-C | 1-1/2" | 2-1/16" | 125 | 1-1/4" | 1-13/16" | 180 | 1-1/2" F NPT | 1,500 | 109 | 5 | |
| 1185-2028-E | 1-1/2" | 2-1/16" | 125 | 1-1/4" | 1-13/16" | 180 | 1-1/2" F NPT | 1,500 | 109 | 5 | |
| 1185-2028-EA | 1-1/2" | 2-1/16" | 125 | 1-1/4" | 1-13/16" | 180 | 1-1/2" F NPT | 1,500 | 109 | 5 | |
| 1185-2028-ED | 1-1/2" | 2-1/16" | 125 | 1-1/4" | 1-13/16" | 180 | 1-1/2" F NPT | 1,500 | 109 | 5 | |
| 1185-2028-EF | 1-1/2" | 2-1/16" | 125 | 1-1/4" | 1-13/16" | 180 | 1-1/2" F NPT | 1,500 | 109 | 5 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
