Coxreels 1185-2028-E Electric DC Non-Explosion Proof Motor Rewind Hose Reel | 1185 Series | 1-1/2" Hose Diameter | 125' Hose Length | 1500 Max PSI | Less Hose

Built for powered retrieval of long, large-diameter hose where an electric DC drive is preferred, the Coxreels 1185-2028-E electric DC non-explosion proof motor rewind hose reel provides 1-1/2" I.D. x 125 ft hose capacity with a 1500 PSI maximum pressure rating. The 1185 Series is made for increased-volume delivery applications, giving fleet service teams, plant maintenance crews, utility operators, and mobile service setups a strong reel platform for heavier hose installations.

This model is supplied less hose, allowing the buyer to install a compatible 1-1/2" hose matched to the application's fluid, pressure, temperature, fitting, and electrical layout requirements. The electric DC motor rewind reduces manual hose retrieval effort, while Coxreels' all-welded steel 'A' frame supports the added weight of long, large-diameter hose. The low profile outlet riser and open drum slot help create a flatter, smoother hose wrap, and the adjustable tension brake helps control drum movement during operation.

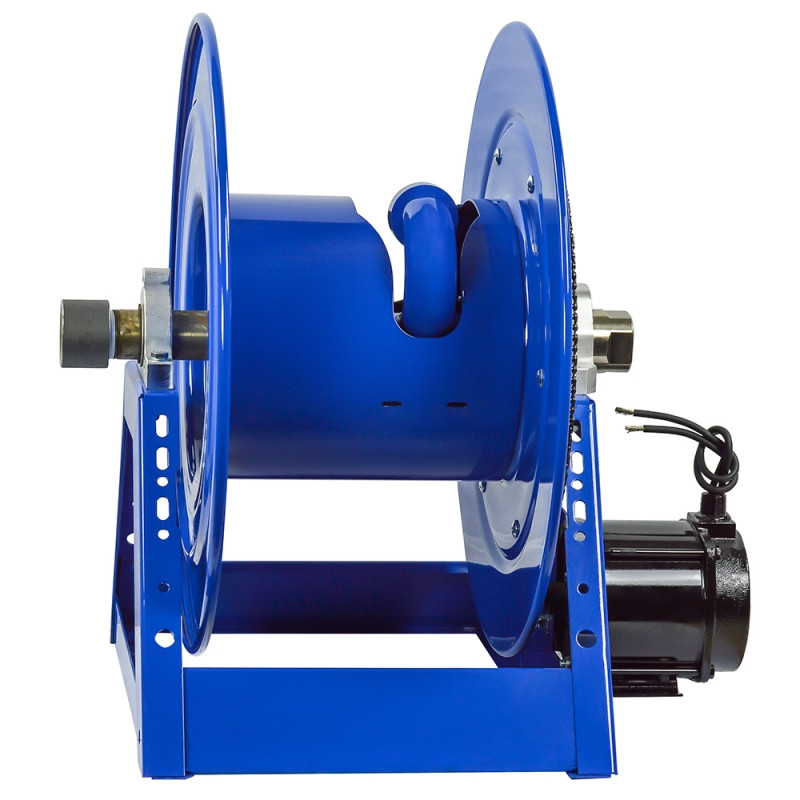

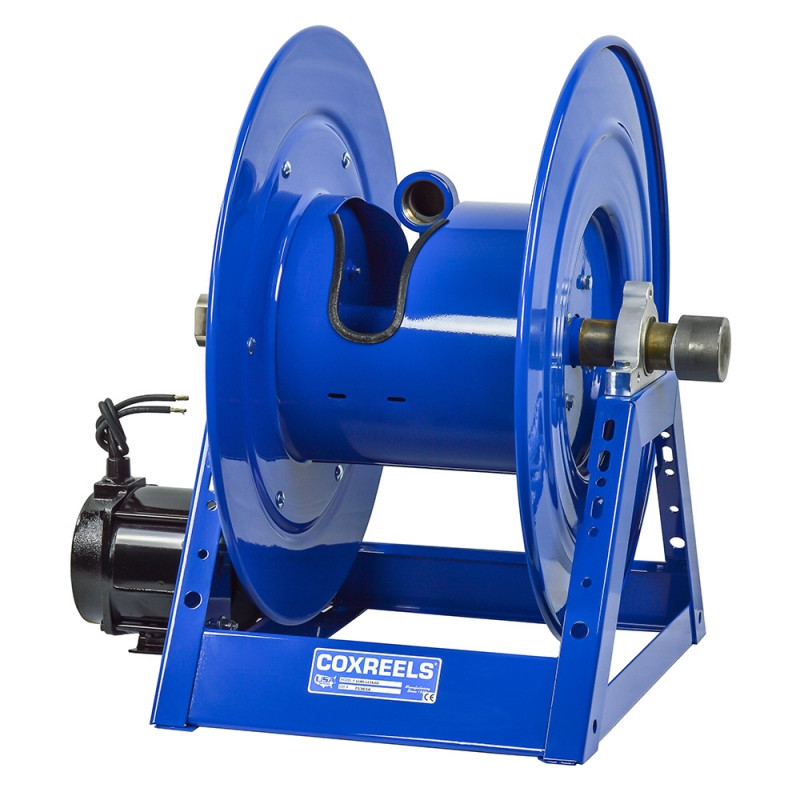

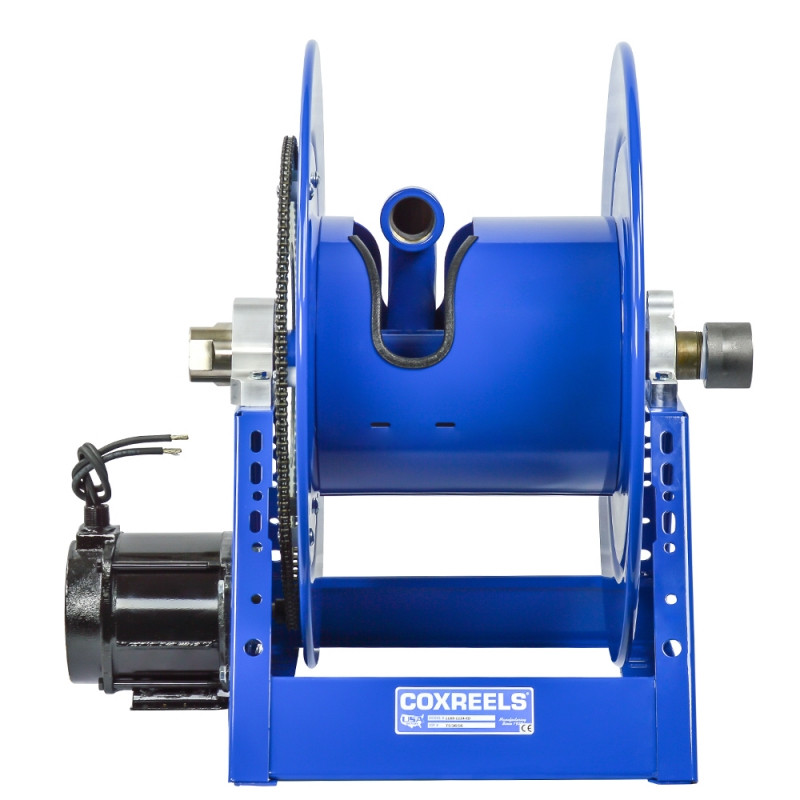

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric DC Non-Explosion Proof Motor Rewind Hose Reel | Series: 1185 Series | Model: 1185-2028-E | Configuration: Less Hose | Hose I.D.: 1-1/2" | Hose O.D.: 2-1/16" | Hose Capacity: 125 ft | Hose Included: No | Max Pressure: 1500 PSI | Ship Weight: 122 lbs | Overall Dimensions: 34.63" W x 30" H x 28" L | Mounting Pattern: 23.25" M x 18.5" N | Base: 25.5" X x 24.5" Y

Features:

• Electric DC non-explosion proof motor rewind provides powered hose retrieval where manual crank operation is not preferred.
• 1185 Series design handles long lengths of large diameter hose for increased volume delivery applications.
• 1-1/2" x 125 ft hose capacity supports large hose installations where smaller reels do not provide enough diameter or storage capacity.
• All welded steel 'A' frame construction provides strength for heavier hose loads and mobile applications.
• Exclusive low profile outlet riser and open drum slot design provide a non-crimping, flat, smooth hose wrap.
• External fluid path with full-flow NPT swivel inlet supports efficient flow through the reel and simplifies seal access.
• Lubricated horizontal surface mount bearings support smooth drum rotation during payout and motorized rewind.
• Adjustable tension brake helps prevent free-wheeling during operation.
• Reliable chain and sprocket drive supports motor-driven rewind operation.
• Rolled edges and ribbed discs provide strength, hose protection, and safer handling around the reel drum.
• CPC powder coat finish helps resist chips and rust in industrial, fleet, utility, and service environments.

Made in USA:

2 Year Warranty

Applications:

• Industrial fluid transfer stations requiring 125 ft of large 1-1/2" hose capacity with powered electric DC rewind.
• Fleet and heavy equipment service areas where large-diameter hose needs to be retrieved and stored neatly after maintenance or utility work.
• Mobile service trucks and trailers where electric DC rewind is preferred over air motor rewind or hand crank operation.
• Plant maintenance and MRO departments handling high-volume air, water, oil, or compatible fluid transfer through customer-supplied hose.
• Construction, utility, and field service operations that need a rugged 'A' frame reel platform for long hose storage.

FAQs:

• Q: Does the Coxreels 1185-2028-E include hose?
  A: No. This model is supplied less hose. The buyer must install a compatible 1-1/2" I.D. hose that matches the application's pressure, temperature, fluid, and fitting requirements.
• Q: What does electric DC non-explosion proof motor rewind mean?
  A: It means the reel uses a DC electric motor to rewind the hose and is not configured as an explosion-proof motor reel. It should not be selected for classified hazardous locations unless the complete system is reviewed and approved for that environment.
• Q: What hose size will this reel hold?
  A: This reel is listed for 1-1/2" I.D. hose with a 2-1/16" O.D. and 125 ft capacity. Hose outside diameter is important because a larger O.D. hose can reduce the amount of hose the reel can safely store.
• Q: Can this reel be used at 1500 PSI?
  A: The reel is rated to 1500 PSI, but the final system pressure must not exceed the lowest-rated component in the hose assembly. Confirm the installed hose, fittings, swivel, and system requirements before pressurizing.
• Q: Why choose electric DC rewind instead of hand crank rewind?
  A: Electric DC rewind is useful when hose weight, hose length, or frequent retrieval makes manual cranking inefficient. It is often selected for mobile equipment and service setups where DC power is available at the reel location.
