Coxreels 1185-2020-EA Electric 115V AC Explosion Proof Motor Rewind Hose Reel | 1185 Series | 1-1/2" Hose Diameter | 70' Hose Length | 1500 Max PSI | Less Hose

Built for powered retrieval of large-diameter hose in a shorter 70 ft configuration where a 115V AC explosion proof motor option is required, the Coxreels 1185-2020-EA electric motor rewind hose reel provides 1-1/2" I.D. x 70 ft hose capacity with a 1500 PSI maximum pressure rating. The 1185 Series is made for increased-volume delivery applications where fleet service teams, plant maintenance crews, utility operators, and facility maintenance groups need a strong reel platform for heavier hose without the added storage capacity of a 125 ft reel.

This model is supplied less hose, allowing the buyer to install a compatible 1-1/2" hose matched to the application's fluid, pressure, temperature, fittings, and installation requirements. The 115V AC explosion proof motor rewind provides powered hose retrieval where compatible AC power is available, while Coxreels' all-welded steel 'A' frame supports heavier hose loads. The low profile outlet riser and open drum slot help guide the hose into a flatter, smoother wrap, and the adjustable tension brake helps control drum movement during operation.

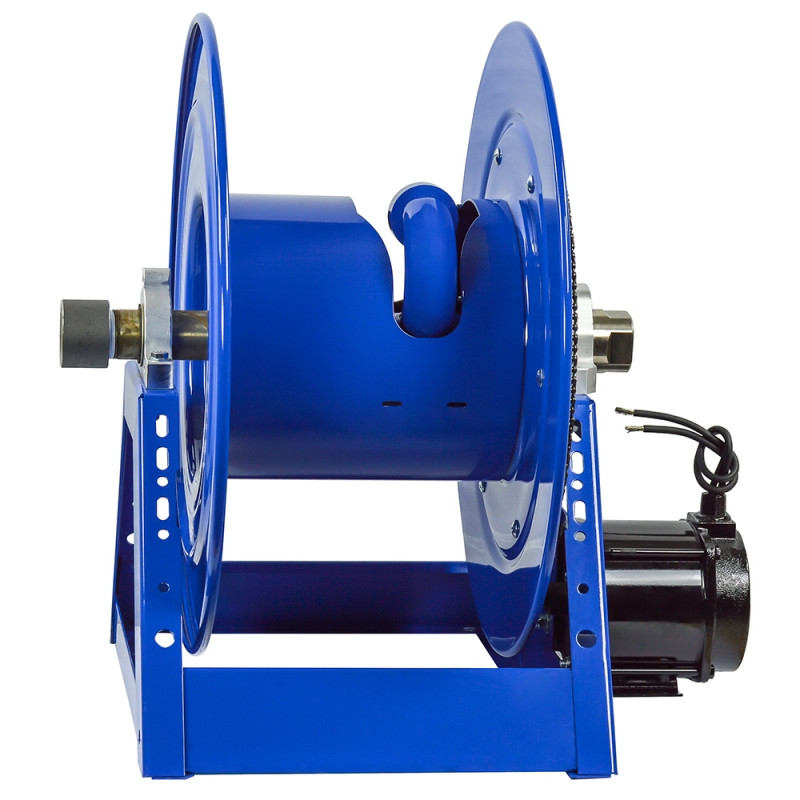

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric 115V AC Explosion Proof Motor Rewind Hose Reel | Series: 1185 Series | Model: 1185-2020-EA | Motor: 115V AC Explosion Proof, 1/2 HP | Configuration: Less Hose | Hose I.D.: 1-1/2" | Hose O.D.: 2-1/16" | Hose Capacity: 70 ft | Hose Included: No | Max Pressure: 1500 PSI | Overall Dimensions: 34.63" W x 30" H x 20" L | Mounting Pattern: 23.25" M x 18.5" N | Base: 25.5" X x 24.5" Y

Features:

• Electric 115V AC explosion proof motor rewind provides powered hose retrieval for compatible installations requiring this motor configuration.
• 1/2 HP motor option supports motor-driven rewind on the 1185 Series reel platform.
• 1185 Series design handles long lengths of large diameter hose for increased volume delivery applications.
• 1-1/2" x 70 ft hose capacity supports large hose installations where a shorter capacity is preferred over 125 ft configurations.
• All welded steel 'A' frame construction provides strength for heavier hose loads and mobile applications.
• Exclusive low profile outlet riser and open drum slot design provide a non-crimping, flat, smooth hose wrap.
• External fluid path with full-flow NPT swivel inlet supports efficient flow through the reel and simplifies seal access.
• Lubricated horizontal surface mount bearings support smooth drum rotation during payout and motorized rewind.
• Adjustable tension brake helps prevent free-wheeling during operation.
• Reliable chain and sprocket drive supports motor-driven rewind operation.
• Rolled edges and ribbed discs provide strength, hose protection, and safer handling around the reel drum.
• CPC powder coat finish helps resist chips and rust in industrial, fleet, utility, and service environments.

Made in USA:

2 Year Warranty

Applications:

• Industrial fluid transfer stations requiring 70 ft of large 1-1/2" hose capacity with powered 115V AC rewind.
• Fleet and heavy equipment service areas where large-diameter hose needs to be retrieved and stored neatly after maintenance or utility work.
• Plant maintenance and MRO departments handling high-volume air, water, oil, or compatible fluid transfer through customer-supplied hose.
• Construction, utility, and field service operations that need a rugged 'A' frame reel platform with moderate hose capacity.
• Facilities reviewing explosion proof motor requirements for reel-powered hose retrieval in approved installation environments.

FAQs:

• Q: Does the Coxreels 1185-2020-EA include hose?
  A: No. This model is supplied less hose. The buyer must install a compatible 1-1/2" I.D. hose that matches the application’s pressure, temperature, fluid, and fitting requirements.
• Q: What does 115V AC explosion proof motor rewind mean?
  A: It means the reel uses a 115V AC electric motor configured as an explosion proof motor option for powered hose rewind. Final suitability for any hazardous or classified location must be confirmed by the buyer, installer, or site safety authority based on the full installation.
• Q: What hose size will this reel hold?
  A: This reel is listed for 1-1/2" I.D. hose with a 2-1/16" O.D. and 70 ft capacity. Hose outside diameter matters because larger O.D. hose can reduce the amount of hose the reel can safely store.
• Q: Can this reel be used at 1500 PSI?
  A: The reel is rated to 1500 PSI, but the final system pressure must not exceed the lowest-rated component in the hose assembly. Confirm the installed hose, fittings, swivel, and system requirements before pressurizing.
• Q: Why choose the 70 ft version instead of the 125 ft version?
  A: The 70 ft version is useful when the reel is mounted closer to the work area and the extra storage capacity of a 125 ft reel is not needed. It keeps the same 1-1/2" hose I.D. and 1500 PSI reel rating while adding powered 115V AC rewind.
