Built for powered retrieval of large-diameter hose in a shorter 70 ft configuration, the Coxreels 1185-2020-AB #6 Gast air motor rewind hose reel provides 1-1/2" I.D. x 70 ft hose capacity with a 1500 PSI maximum pressure rating. The 1185 Series is made for increased-volume delivery applications where fleet teams, plant maintenance crews, utility operators, and mobile service setups need a strong reel platform for heavier hose without the extra storage capacity of a 125 ft reel.
This model is supplied less hose, allowing the buyer to install a compatible 1-1/2" hose matched to the application's fluid, pressure, temperature, fittings, and system requirements. The #6 Gast air motor rewind uses compressed air to power hose retrieval, helping reduce manual winding effort when handling large hose. Coxreels' all-welded steel 'A' frame supports heavier hose loads, while the low profile outlet riser and open drum slot help guide the hose into a flatter, smoother wrap.

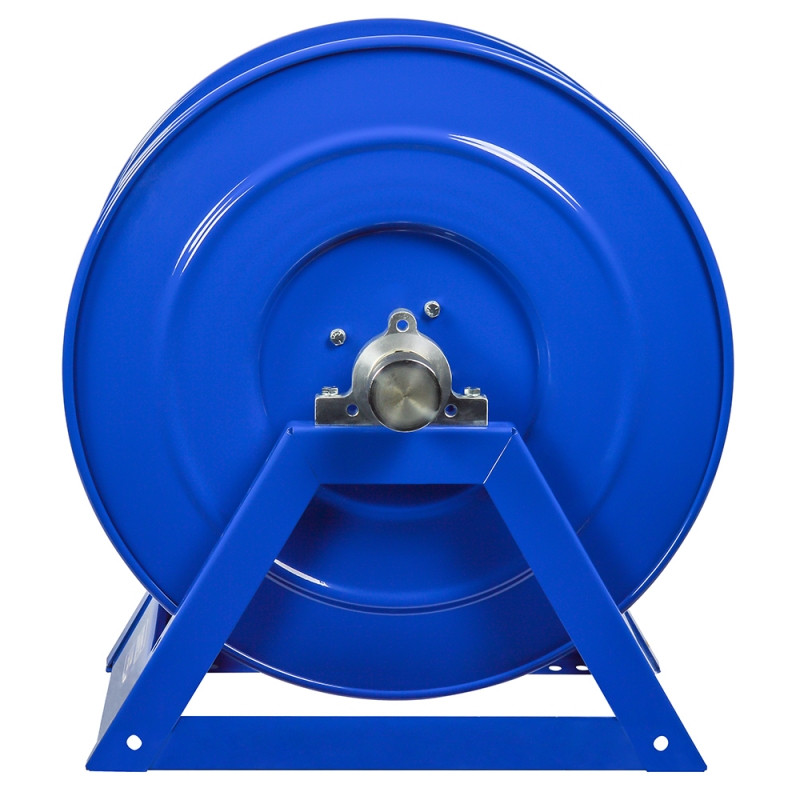

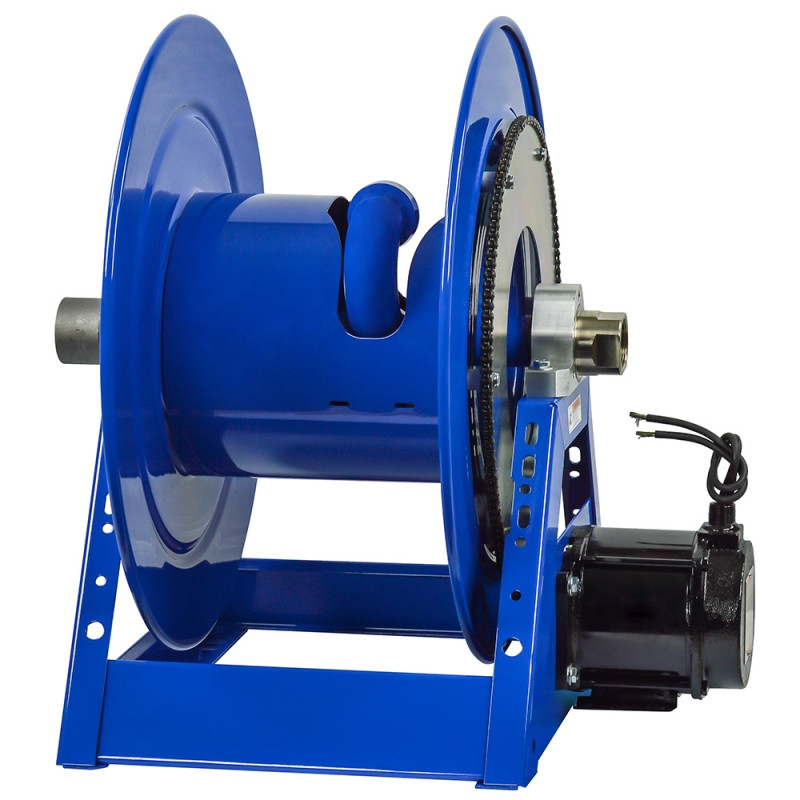

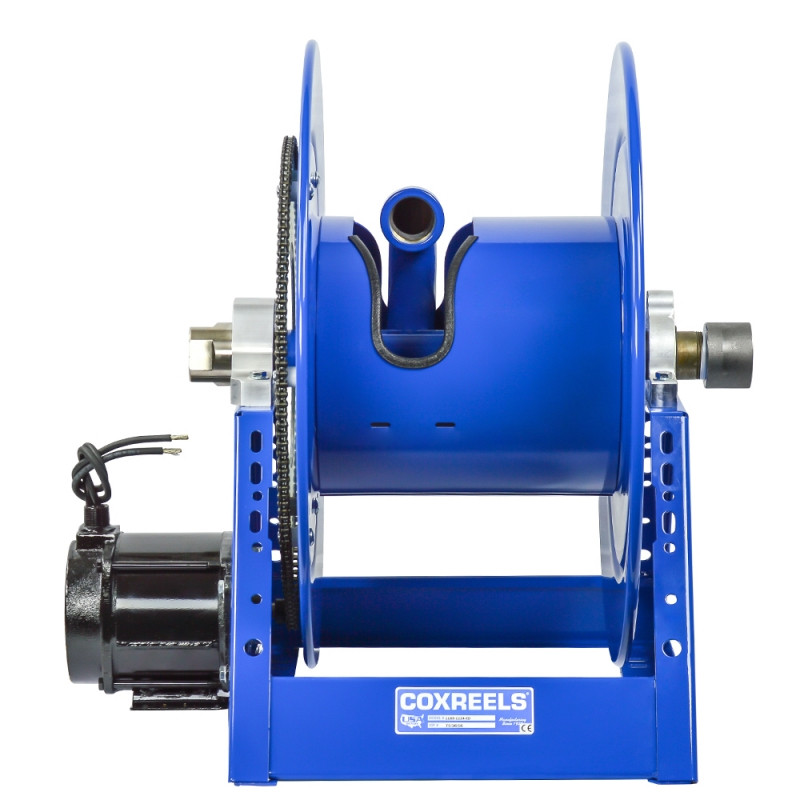

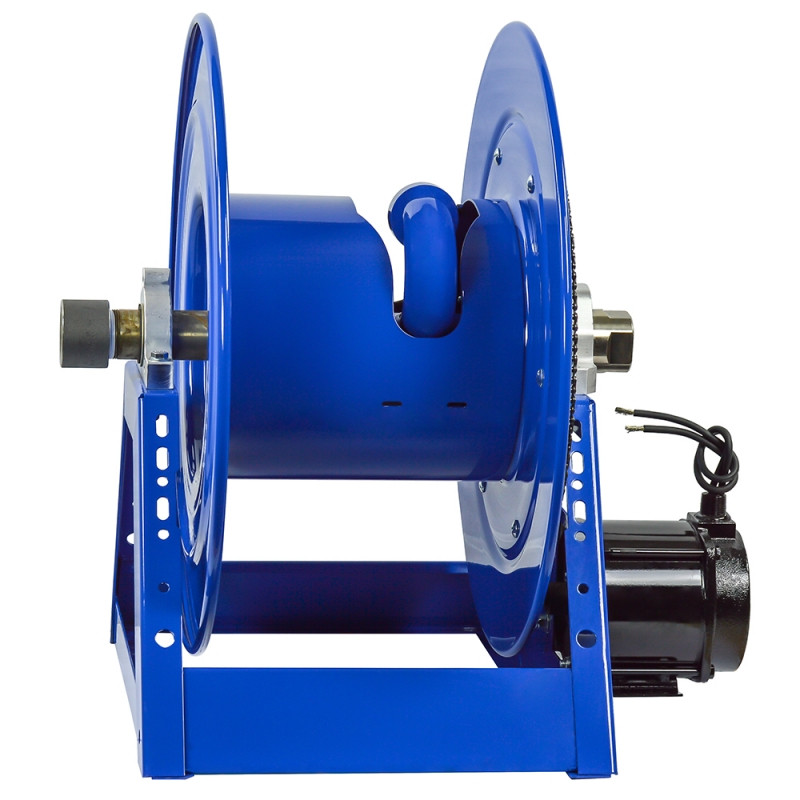

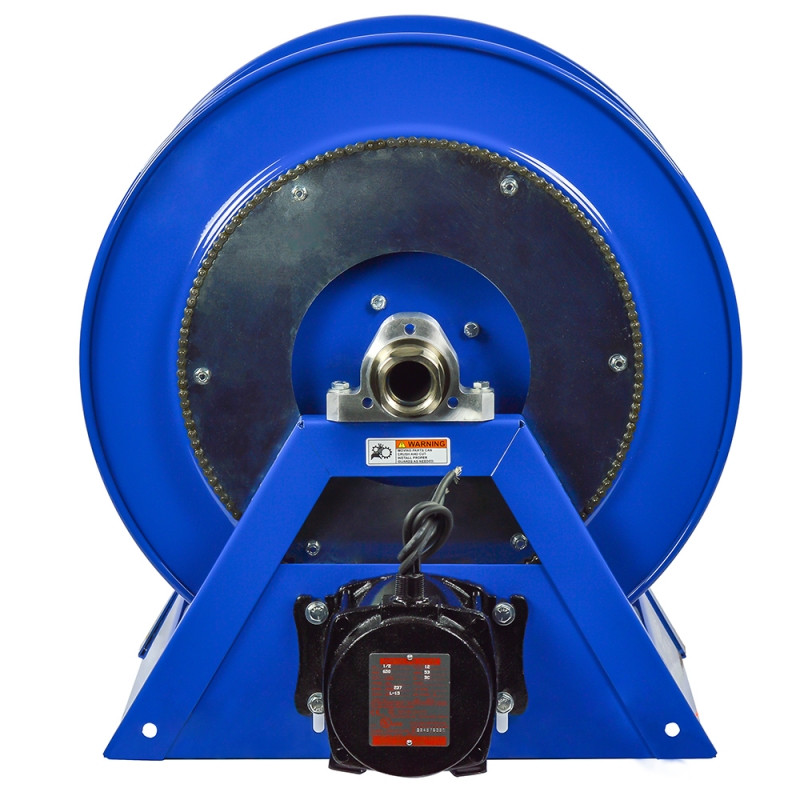

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Air Motor Rewind Hose Reel | Series: 1185 Series | Model: 1185-2020-AB | Motor: #6 Gast Air Motor | Configuration: Less Hose | Hose I.D.: 1-1/2" | Hose O.D.: 2-1/16" | Hose Capacity: 70 ft | Hose Included: No | Max Pressure: 1500 PSI | Overall Dimensions: 31.88" W x 30" H x 20" L | Mounting Pattern: 23.25" M x 18.5" N | Base: 25.5" X x 24.5" Y
Features:
- #6 Gast air motor rewind uses compressed air to retrieve large-diameter hose with less manual winding effort.
- 1185 Series design handles long lengths of large diameter hose for increased volume delivery applications.
- 1-1/2" x 70 ft hose capacity supports large hose installations where a shorter capacity is preferred over 125 ft configurations.
- All welded steel 'A' frame construction provides strength for heavier hose loads and mobile applications.
- Exclusive low profile outlet riser and open drum slot design provide a non-crimping, flat, smooth hose wrap.
- External fluid path with full-flow NPT swivel inlet supports efficient flow through the reel and simplifies seal access.
- Lubricated horizontal surface mount bearings support smooth drum rotation during payout and motorized rewind.
- Adjustable tension brake helps prevent free-wheeling during operation.
- Reliable chain and sprocket drive supports motor-driven rewind operation.
- Rolled edges and ribbed discs provide strength, hose protection, and safer handling around the reel drum.
- CPC powder coat finish helps resist chips and rust in industrial, fleet, utility, and service environments.
Made in USA:
Applications:
- Industrial fluid transfer stations requiring 70 ft of large 1-1/2" hose capacity with powered air motor rewind.
- Fleet and heavy equipment service areas where large-diameter hose needs to be retrieved and stored neatly after maintenance or utility work.
- Mobile service trucks and trailers where a #6 Gast air motor rewind reel helps manage heavy hose without hand cranking.
- Plant maintenance and MRO departments handling high-volume air, water, oil, or compatible fluid transfer through customer-supplied hose.
- Construction, utility, and field service operations that need a rugged 'A' frame reel platform with moderate hose capacity.
FAQs:
- Q: Does the Coxreels 1185-2020-AB include hose?
A: No. This model is supplied less hose. The buyer must install a compatible 1-1/2" I.D. hose that matches the application's pressure, temperature, fluid, and fitting requirements. - Q: What does #6 Gast air motor rewind' mean?
A: It means the reel uses a Gast compressed-air motor to power hose rewind. This helps retrieve large-diameter hose more efficiently than manual cranking when compressed air is available at the reel location. - Q: What hose size will this reel hold?
A: This reel is listed for 1-1/2" I.D. hose with a 2-1/16" O.D. and 70 ft capacity. Hose outside diameter matters because larger O.D. hose can reduce the amount of hose the reel can safely store. - Q: Can this reel be used at 1500 PSI?
A: The reel is rated to 1500 PSI, but the final system pressure must not exceed the lowest-rated component in the hose assembly. Confirm the installed hose, fittings, swivel, and system requirements before pressurizing. - Q: Why choose the 70 ft version instead of a 125 ft model?
A: The 70 ft version is useful when the reel is mounted closer to the work area and the additional storage capacity of a 125 ft reel is not needed. It keeps the same 1-1/2" hose I.D. and 1500 PSI reel rating in a shorter hose-capacity configuration.
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required | INLET SWIVEL & OUTLET RISER | PSI | APRX. LBS. | SIZE INDEX | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
1185 SERIES - IN-LINE SWIVEL
|
|||||||||||
| 1185-2020 | 1-1/2" | 2-1/16" | 70 | 1-1/4" | 1-13/16" | 80 | 1-1/2" F NPT | 1,500 | 70 | 3 | |
| 1185-2020-A | 1-1/2" | 2-1/16" | 70 | 1-1/4" | 1-13/16" | 80 | 1-1/2" F NPT | 1,500 | 70 | 3 | |
| 1185-2020-AB | 1-1/2" | 2-1/16" | 70 | 1-1/4" | 1-13/16" | 80 | 1-1/2" F NPT | 1,500 | 70 | 3 | |
| 1185-2020-C | 1-1/2" | 2-1/16" | 70 | 1-1/4" | 1-13/16" | 80 | 1-1/2" F NPT | 1,500 | 70 | 3 | |
| 1185-2020-E | 1-1/2" | 2-1/16" | 70 | 1-1/4" | 1-13/16" | 80 | 1-1/2" F NPT | 1,500 | 70 | 3 | |
| 1185-2020-EA | 1-1/2" | 2-1/16" | 70 | 1-1/4" | 1-13/16" | 80 | 1-1/2" F NPT | 1,500 | 70 | 3 | |
| 1185-2020-ED | 1-1/2" | 2-1/16" | 70 | 1-1/4" | 1-13/16" | 80 | 1-1/2" F NPT | 1,500 | 70 | 3 | |
| 1185-2020-EF | 1-1/2" | 2-1/16" | 70 | 1-1/4" | 1-13/16" | 80 | 1-1/2" F NPT | 1,500 | 70 | 3 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
