Coxreels 1185-2020-E Electric DC Non-Explosion Proof Motor Rewind Hose Reel | 1185 Series | 1-1/2" Hose Diameter | 70' Hose Length | 1500 Max PSI | Less Hose

Built for powered retrieval of large-diameter hose in a shorter 70 ft configuration, the Coxreels 1185-2020-E electric DC non-explosion proof motor rewind hose reel provides 1-1/2" I.D. x 70 ft hose capacity with a 1500 PSI maximum pressure rating. The 1185 Series is made for increased-volume delivery applications where fleet service teams, plant maintenance crews, utility operators, and mobile service setups need a strong reel platform for heavier hose without the added storage capacity of a 125 ft reel.

This model is supplied less hose, allowing the buyer to install a compatible 1-1/2" hose matched to the application's fluid, pressure, temperature, fittings, and power requirements. The electric DC non-explosion proof motor rewind reduces manual hose retrieval effort where compatible DC power is available, while Coxreels' all-welded steel 'A' frame supports heavier hose loads. The low profile outlet riser and open drum slot help guide the hose into a flatter, smoother wrap, and the adjustable tension brake helps control drum movement during operation.

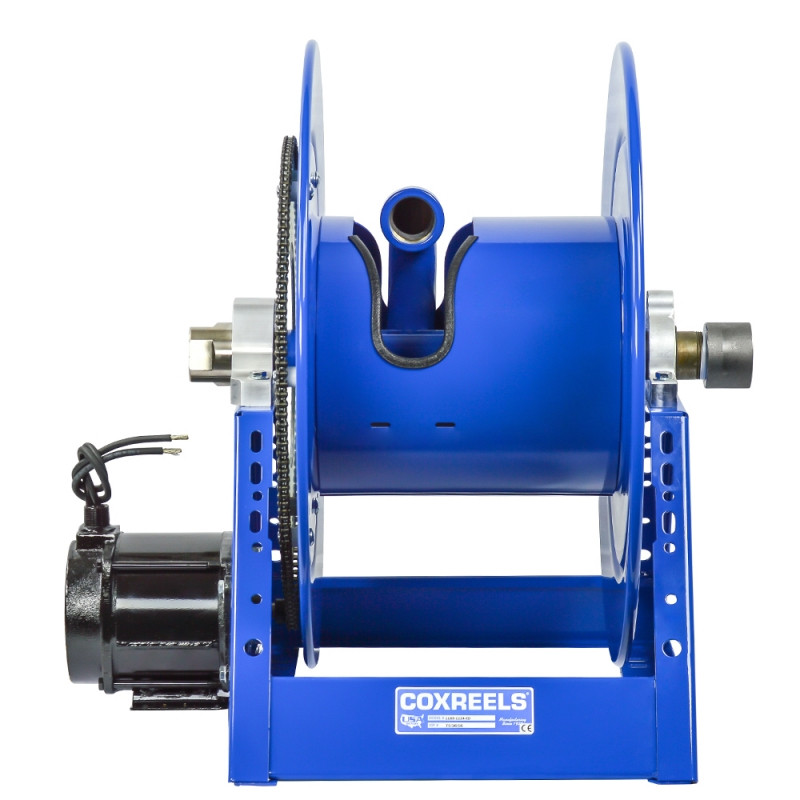

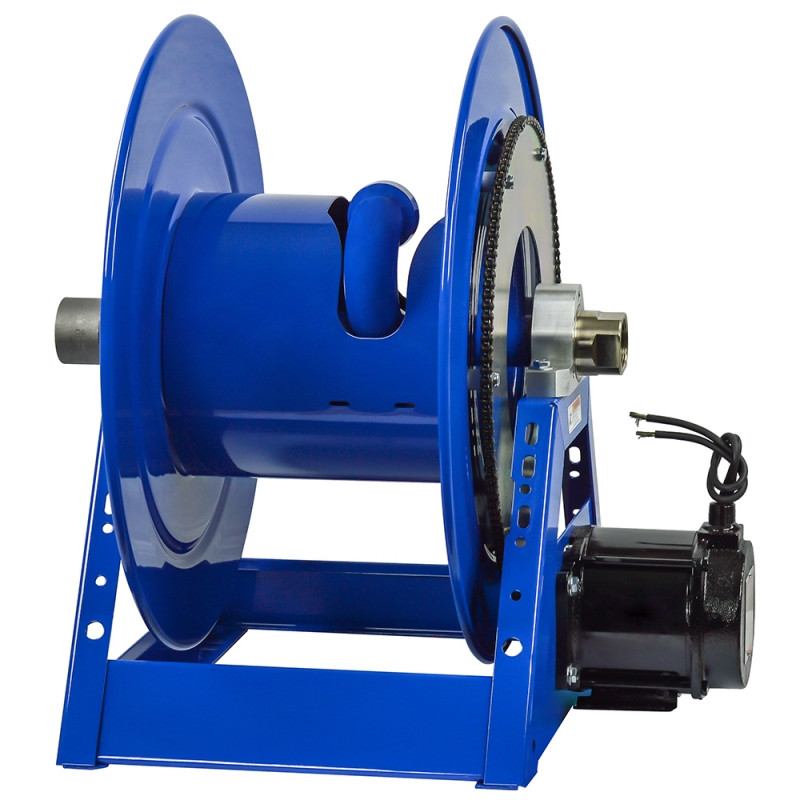

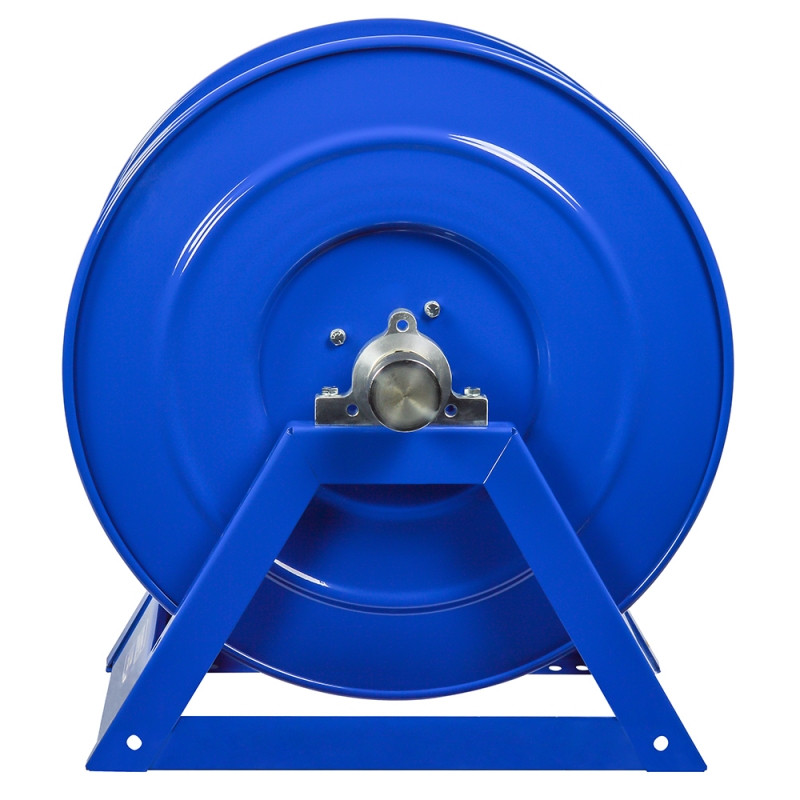

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric DC Non-Explosion Proof Motor Rewind Hose Reel | Series: 1185 Series | Model: 1185-2020-E | Configuration: Less Hose | Hose I.D.: 1-1/2" | Hose O.D.: 2-1/16" | Hose Capacity: 70 ft | Hose Included: No | Max Pressure: 1500 PSI | Ship Weight: 104 lbs | Overall Dimensions: 34.63" W x 30" H x 20" L | Mounting Pattern: 23.25" M x 18.5" N | Base: 25.5" X x 24.5" Y

Features:

• Electric DC non-explosion proof motor rewind provides powered hose retrieval where manual crank operation is not preferred.
• 1185 Series design handles long lengths of large diameter hose for increased volume delivery applications.
• 1-1/2" x 70 ft hose capacity supports large hose installations where a shorter capacity is preferred over 125 ft configurations.
• All welded steel 'A' frame construction provides strength for heavier hose loads and mobile applications.
• Exclusive low profile outlet riser and open drum slot design provide a non-crimping, flat, smooth hose wrap.
• External fluid path with full-flow NPT swivel inlet supports efficient flow through the reel and simplifies seal access.
• Lubricated horizontal surface mount bearings support smooth drum rotation during payout and motorized rewind.
• Adjustable tension brake helps prevent free-wheeling during operation.
• Reliable chain and sprocket drive supports motor-driven rewind operation.
• Rolled edges and ribbed discs provide strength, hose protection, and safer handling around the reel drum.
• CPC powder coat finish helps resist chips and rust in industrial, fleet, utility, and service environments.

Made in USA:

2 Year Warranty

Applications:

• Industrial fluid transfer stations requiring 70 ft of large 1-1/2" hose capacity with powered DC rewind.
• Fleet and heavy equipment service areas where large-diameter hose needs to be retrieved and stored neatly after maintenance or utility work.
• Mobile service trucks and trailers where DC motor rewind is preferred over air motor rewind or hand crank operation.
• Plant maintenance and MRO departments handling high-volume air, water, oil, or compatible fluid transfer through customer-supplied hose.
• Construction, utility, and field service operations that need a rugged 'A' frame reel platform with moderate hose capacity.

FAQs:

• Q: Does the Coxreels 1185-2020-E include hose?
  A: No. This model is supplied less hose. The buyer must install a compatible 1-1/2" I.D. hose that matches the application’s pressure, temperature, fluid, and fitting requirements.
• Q: What does electric DC non-explosion proof motor rewind mean?
  A: It means the reel uses a DC electric motor to rewind the hose and is not configured as an explosion-proof motor reel. Do not select this version for classified hazardous locations unless the complete installation has been reviewed and approved for that environment.
• Q: What hose size will this reel hold?
  A: This reel is listed for 1-1/2" I.D. hose with a 2-1/16" O.D. and 70 ft capacity. Hose outside diameter matters because larger O.D. hose can reduce the amount of hose the reel can safely store.
• Q: Can this reel be used at 1500 PSI?
  A: The reel is rated to 1500 PSI, but the final system pressure must not exceed the lowest-rated component in the hose assembly. Confirm the installed hose, fittings, swivel, and system requirements before pressurizing.
• Q: Why choose the 70 ft electric DC version instead of a 125 ft model?
  A: The 70 ft version is useful when the reel is mounted closer to the work area and the extra storage capacity of a 125 ft reel is not needed. It keeps the same 1-1/2" hose I.D. and 1500 PSI reel rating while adding powered DC rewind.
