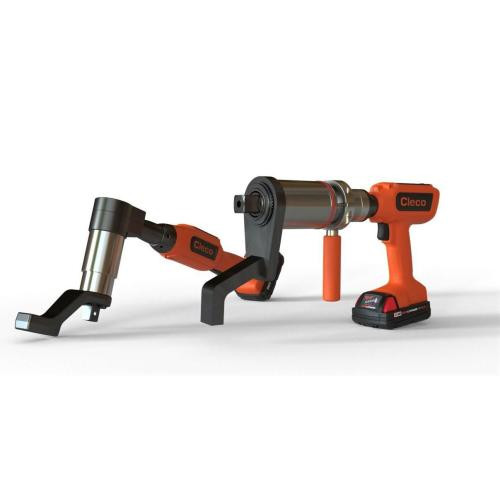

Cleco CCBAWN1000NB6 CellCore Cordless Electric High Torque Nutrunner | 7 RPM | 147.5 - 737.6 (ft-lbs) Torque Range | 3/4" Square Drive

Built for the upper end of Cleco’s 3/4" drive CellCore angle-nutrunner range, the Cleco CCBAWN1000NB6 cordless electric high torque nutrunner delivers a 147.5–737.6 ft-lbs torque range for controlled tightening on large industrial fasteners. Its 7 RPM output speed supports deliberate final torque application at higher load, while the 3/4" square drive accepts compatible sockets used on structural bolts, equipment frames, and large machinery assemblies. The right-angle head places the drive at 90 degrees to the tool body, helping operators reach fasteners close to fixtures, housings, rails, and other obstructions.

As part of the CellCore cordless high torque family, the CCBAWN1000NB6 gives production teams a cable-free fastening option where torque control, access, and assembly workflow all matter. Cleco lists this model at 200–1000 Nm, with a 5.0 kg / 11.0 lb tool weight without battery, 609.6 mm / 24.0" overall length, 31.8 mm / 1.25" side-to-center distance, and 260.4 mm / 10.25" height. The side-to-center value is a key clearance measurement on angle nutrunners because it helps confirm whether the socket centerline can fit between the joint and nearby structure.

Type: Cordless Electric High Torque Right Angle Nutrunner | Series: CellCore | Model: CCBAWN1000NB6 | Torque Range: 200–1000 Nm / 147.5–737.6 ft-lbs | Speed: 7 r/min | Output Drive: 3/4" Square Drive | Weight: 5.0 kg / 11.0 lb, values do not include battery | Length: 609.6 mm / 24.0" | Side to Center: 31.8 mm / 1.25" | Height: 260.4 mm / 10.25"

Features:

• Right-angle head improves access to large fasteners positioned near frames, brackets, fixtures, and machinery housings.
• FastApps programming stores up to 10 applications directly on the tool for common rundown strategies without requiring a controller for basic setup.
• Connects to a controller when maximum functionality, advanced fastening setup, or additional process control is required.
• Norbar torque multiplier uses internal gearing to amplify torque at the output drive for high-torque cordless fastening.
• CellCore high torque family covers 40–2000 Nm, allowing plants to standardize across multiple torque levels within the same tool platform.
• 360° rotating head and handle support improved positioning around workpieces and assembly fixtures.
• 3/4" square drive output matches larger industrial socket sizes used in heavy fastening applications.

Note: Cordless Battery and Charger Sold Separately. Batteries and Chargers can be purchased from the following links:

Batteries:

• Cleco T50-1000497 Smart Lithium-Ion Battery
• Cleco T50-1000498 Smart Lithium-Ion Battery

Chargers:

• Cleco T50-1000499 Rapid Charger
• Cleco T50-1000500 6-Bay Sequential Charger

Made in USA:

Applications:

• Heavy equipment manufacturing: tightening high-torque fasteners on frames, axles, lift arms, brackets, hydraulic mounts, and machinery structures.
• Automotive and heavy truck assembly: controlled fastening on chassis, driveline, suspension, axle, and frame-related joints.
• Rail, aerospace, and transportation production: cordless right-angle fastening around fixtures, subassemblies, and restricted-clearance bolted joints.
• Industrial machinery builders: installing large nuts and bolts on equipment bases, guards, tooling frames, presses, and fabricated assemblies.
• Plant maintenance and MRO: controlled tightening during equipment rebuilds, fixture service, and shop repair work that calls for 1000 Nm capacity.

FAQs:

• Q: What torque range does the Cleco CCBAWN1000NB6 cover?
  A: This model covers 200–1000 Nm, equal to 147.5–737.6 ft-lbs. It is the 1000 Nm right-angle model in this 3/4" square drive CellCore high torque group.
• Q: When should I choose this 1000 Nm model instead of the 750 Nm version?
  A: Choose the CCBAWN1000NB6 when the required tightening specification exceeds the 750 Nm model’s maximum range or when you want additional torque capacity within the same right-angle form factor. Confirm the joint torque specification before selecting the tool.
• Q: Why does this tool run at 7 RPM?
  A: Higher torque cordless nutrunners operate more slowly because the tool is applying greater controlled force at the drive. The 7 r/min speed is intended for final tightening of large fasteners, not rapid low-torque screwdriving.
• Q: What does side-to-center mean on an angle nutrunner?
  A: Side-to-center is the distance from the side of the angle head to the socket centerline. For this model, the listed side-to-center distance is 31.8 mm / 1.25", which helps buyers check clearance around nearby walls, rails, brackets, or fixtures.
• Q: Are the battery and charger included with this SKU?
  A: The available product data lists the tool specifications and notes that weight values do not include the battery. Battery, charger, reaction accessories, and kit contents should be verified before publishing or ordering.
