Cleco CCBAWN750NB6 CellCore Cordless Electric High Torque Nutrunner | 11 RPM | 113.6 - 553.2 (ft-lbs) Torque Range | 3/4" Square Drive

Built for high-torque fastening where a straight tool body may not reach the joint cleanly, the Cleco CCBAWN750NB6 CellCore cordless electric high torque angle nutrunner delivers a 113.6–553.2 ft-lbs torque range for controlled tightening on large industrial fasteners. Its 11 RPM output speed supports deliberate final torque application, while the 3/4" square drive accepts compatible industrial sockets used on larger bolts, nuts, and structural assemblies. The angle-head configuration places the output at 90 degrees to the tool body, helping operators access side-facing or recessed fasteners around fixtures, frames, and machinery where pistol tools can be difficult to align.

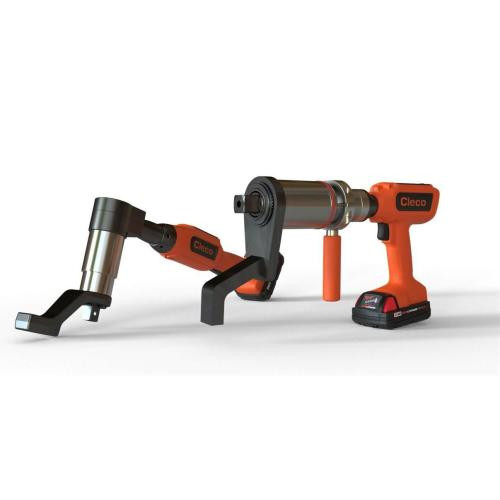

As part of Cleco’s CellCore cordless assembly tool family, the CCBAWN750NB6 combines battery-powered mobility with high torque fastening capability for production, maintenance, and assembly environments. Cleco lists this model at 154–750 Nm, with a 5.0 kg / 11.0 lb tool weight without battery, 596.9 mm / 23.5" overall length, 31.8 mm / 1.25" side-to-centre distance, and 260.4 mm / 10.25" height. The side-to-centre measurement is especially important on angle nutrunners because it helps buyers confirm clearance between the socket centerline and nearby obstructions.

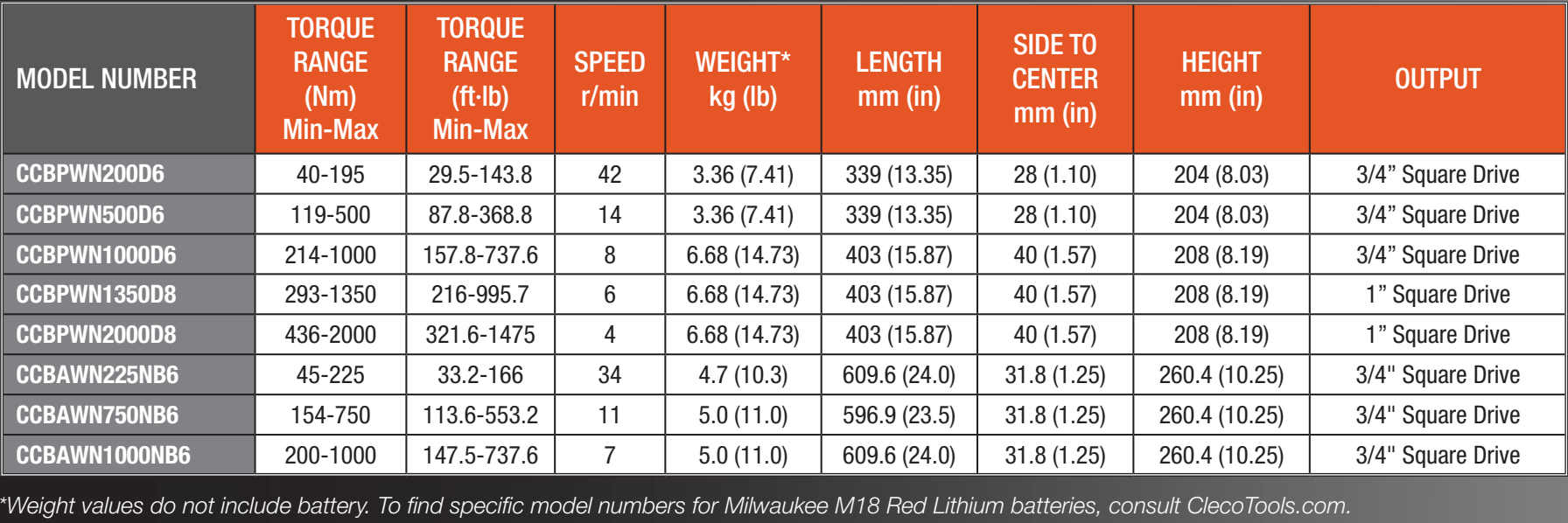

Type: Cordless Electric High Torque Angle Nutrunner | Series: CellCore | Model: CCBAWN750NB6 | Torque Range: 154–750 Nm / 113.6–553.2 ft-lbs | Speed: 11 r/min | Output Drive: 3/4" Square Drive | Weight: 5.0 kg / 11.0 lb, values do not include battery | Length: 596.9 mm / 23.5" | Side to Center: 31.8 mm / 1.25" | Height: 260.4 mm / 10.25"

Features:

• Angle-head output helps reach fasteners positioned along frames, fixtures, equipment housings, and other restricted-access assemblies.
• CellCore cordless platform reduces dependence on air hoses or tool cables in production cells and maintenance areas.
• FastApps programming allows up to 10 rundown strategies to be set directly on the tool for common fastening jobs.
• Compatible with Cleco controller-based workflows when more advanced rundown programming and fastening data capture are required.
• Norbar® torque multiplier supports high torque output by using internal gearing to amplify fastening force at the square drive.
• 3/4" square drive output matches larger industrial socket sizes used for high-torque bolting.
• Listed tool weight does not include battery, helping buyers compare the base tool across CellCore high torque models.

Note: Cordless Battery and Charger Sold Separately. Batteries and Chargers can be purchased from the following links:

Batteries:

• Cleco T50-1000497 Smart Lithium-Ion Battery
• Cleco T50-1000498 Smart Lithium-Ion Battery

Chargers:

• Cleco T50-1000499 Rapid Charger
• Cleco T50-1000500 6-Bay Sequential Charger

Made in USA:

Applications:

• Heavy equipment assembly: tightening large fasteners on frames, axles, brackets, hydraulic components, and machinery structures.
• Automotive and heavy truck production: controlled fastening on chassis, suspension, driveline, and structural assemblies where torque accuracy and access both matter.
• Aerospace and transportation manufacturing: cordless angle-head fastening around fixtures, subassemblies, and restricted-clearance production joints.
• Industrial machinery builders: installing large bolts and nuts on equipment bases, tooling frames, guards, and fabricated assemblies.
• Plant maintenance and MRO: controlled tightening during equipment rebuilds, fixture repairs, and shop service work requiring 3/4" drive torque capability.

FAQs:

• Q: What makes the CCBAWN750NB6 different from a pistol-style high torque nutrunner?
  A: This model uses an angle-head layout, so the output drive is positioned at 90 degrees to the tool body. That layout is useful when the fastener is close to a wall, frame rail, fixture, or nearby component that blocks straight-line access.
• Q: What torque range does this Cleco CellCore model cover?
  A: The CCBAWN750NB6 covers 154–750 Nm, equal to 113.6–553.2 ft-lbs. That range places it above the 500 Nm models and below the 1000 Nm class in Cleco’s high torque lineup.
• Q: Why is the 11 RPM speed lower than smaller cordless nutrunners?
  A: High torque nutrunners trade speed for controlled force. The 11 r/min speed is intended for controlled tightening at higher torque levels, not rapid screwdriving or light assembly run-down.
• Q: What socket drive does this model use?
  A: The CCBAWN750NB6 uses a 3/4" square drive. Use compatible 3/4" drive sockets rated for the torque and fastening conditions of the application.
• Q: Does this listing include the battery and charger?
  A: The available source data lists tool specifications and states weight values do not include the battery. Battery and charger inclusion should be verified before publishing or ordering.

Looking for more information about Cleco Nutrunner? Click here to view the Catalog

Need help selecting the correct Cleco Nutrunners for your application? Please call (800) 608-5210 or email info@intlairtool.com
