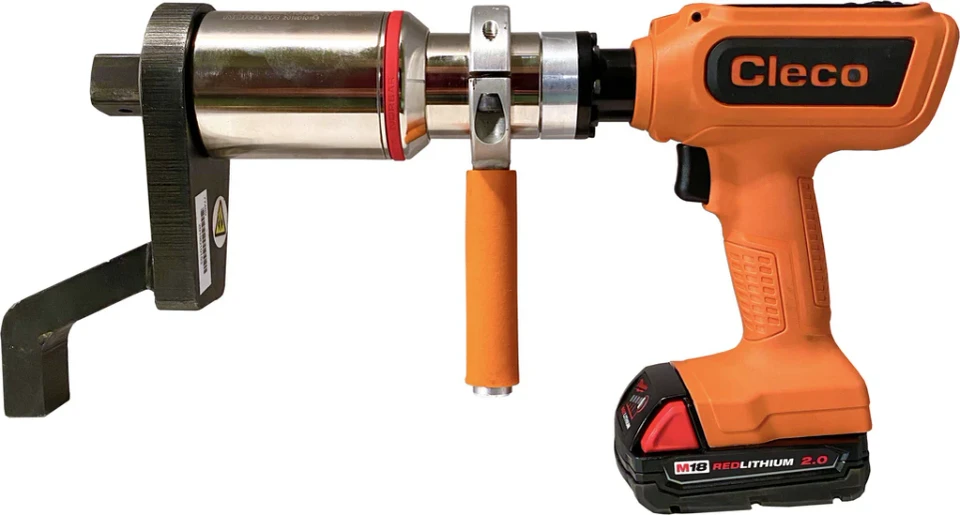

Cleco CCBPWN1000D6 CellCore Cordless Electric High Torque Nutrunner | 8 RPM | 157.8 - 737.6 (ft-lbs) Torque Range | 3/4" Square Drive

Built for high-torque assembly where controlled fastening matters more than impact force, the Cleco CCBPWN1000D6 CellCore Cordless Electric High Torque Nutrunner delivers a 157.8–737.6 ft-lbs torque range for large bolted joints in production, maintenance, and equipment assembly environments. Its 8 RPM output gives operators a slow, controlled rundown for high-load fastening, while the 3/4" square drive fits common high-torque sockets used on larger industrial fasteners. CellCore is Cleco’s cordless programmable assembly platform, giving users torque control without an air line or cord across the work area.

The CCBPWN1000D6 is a pistol-style high torque nutrunner with a 214–1000 Nm torque range, 15.87" length, and 1.57" side-to-centre distance for positioning the tool around fixtures, frames, and bolted assemblies. CellCore tools support on-tool programming for up to 10 applications, commonly called FastApps, and can be connected to Cleco controller platforms for expanded programming, traceability, and batch-counting functionality where supported by the system configuration.

Type: Cordless Electric High Torque Nutrunner | Series: CellCore | Model: CCBPWN1000D6 | Configuration: Pistol | Torque Range: 157.8–737.6 ft-lbs / 214–1000 Nm | Speed: 8 RPM | Output Drive: 3/4" Square Drive | Weight: 14.73 lb / 6.68 kg, without battery | Length: 15.87" / 403 mm | Side to Center: 1.57" / 40 mm | Height: 8.19" / 208 mm

Features:

• Programmable torque control helps reduce over-torque damage on large fasteners and safety-critical bolted joints.
• Contactless electronic switch shuts off tightening rotation when the required torque is reached, supporting repeatable assembly results.
• Preset torque settings with green “OK” and red “not OK” indicators help operators identify accepted and rejected rundowns quickly.
• Programmable speeds and rundown strategies help reduce cross-threading and fastening errors during assembly work.
• Milwaukee M18 Red Lithium battery platform compatibility helps standardize cordless power across the Cleco cordless range.
• Large user interface allows on-tool programming without a controller for standalone setup.
• High torque version allows up to 10 applications to be programmed directly on the tool or connected to a controller for expanded FastApps functionality.
• Assembly line tough construction is drop tested up to 5 feet for use in active production environments.

Note: Cordless Battery and Charger Sold Separately. Batteries and Chargers can be purchased from the following links:

Batteries:

• Cleco T50-1000497 Smart Lithium-Ion Battery
• Cleco T50-1000498 Smart Lithium-Ion Battery

Chargers:

• Cleco T50-1000499 Rapid Charger
• Cleco T50-1000500 6-Bay Sequential Charger

Made in USA:

Applications:

• Heavy equipment assembly — tightening large frame, bracket, and structural fasteners where controlled torque is required.
• Railway and transit maintenance — fastening bolted joints on rail cars, bogies, support structures, and service assemblies.
• Automotive and off-highway production — controlled rundown on high-torque joints where cordless mobility improves station access.
• Industrial MRO and plant maintenance — servicing large machinery, fixtures, conveyors, presses, and mounted equipment without relying on an air supply line.
• Energy and infrastructure assembly — fastening larger bolted connections on skids, frames, towers, and fabricated support structures.

FAQs:

• Q: What type of fastening work is the CCBPWN1000D6 used for?
  A: This tool is used for controlled high-torque fastening on large bolted joints. It is not an impact wrench; it is a programmable electric nutrunner for applications where torque control and repeatability matter.
• Q: What does the 157.8–737.6 ft-lbs torque range mean?
  A: The torque range shows the minimum and maximum tightening torque the tool is specified to deliver. Use this range to match the nutrunner to the torque requirement of the joint, fastener size, and assembly process.
• Q: Is this tool compatible with 3/4" drive sockets?
  A: Yes. The CCBPWN1000D6 has a 3/4" square drive output, so it is intended for compatible 3/4" drive impact-rated sockets and fastening accessories.
• Q: Does this model require a controller?
  A: The CellCore high torque platform allows programming of up to 10 applications directly on the tool. Controller connection may be used for expanded functionality such as advanced programming, live reporting, traceability, and batch counting when matched with the appropriate Cleco controller setup.
• Q: Are the battery and charger included?
  A: The provided title and catalog data do not confirm battery or charger inclusion for this SKU. Please verify kit contents before publishing or ordering, especially if the tool is being purchased for a new cordless fastening station.
