Cleco 8RSA-7BQ Push Button Reverse Inline Screwdriver | 8-Series | 550 RPM | 0.5 - 6.2 (ft-lbs) Torque Range

Built for lower-speed, higher-control production fastening, the Cleco 8RSA-7BQ push button reverse inline screwdriver gives assembly operators a compact pneumatic tool for repeatable screw rundown. Its 550 RPM free speed provides a slower, more controlled pace than higher-speed models, which is useful when the fastener, material, or joint stack-up calls for careful seating rather than rapid rundown. The 0.5 - 6.2 ft-lbs torque range, equal to 0.8 - 8.5 Nm, supports small fasteners in light manufacturing, appliance assembly, automotive subassembly, and bench repair work.

This 8-Series inline screwdriver uses a Clecomatic clutch, a shut-off style torque-control clutch that helps stop the tool at the set torque for better part-to-part consistency. The push-to-start throttle activates when the operator presses the bit into the fastener, helping simplify repetitive work, while the push-button reverse allows quick screw removal or correction. A 1/4" hex quick change output accepts common screwdriver bits and helps reduce bit-change time at the workstation.

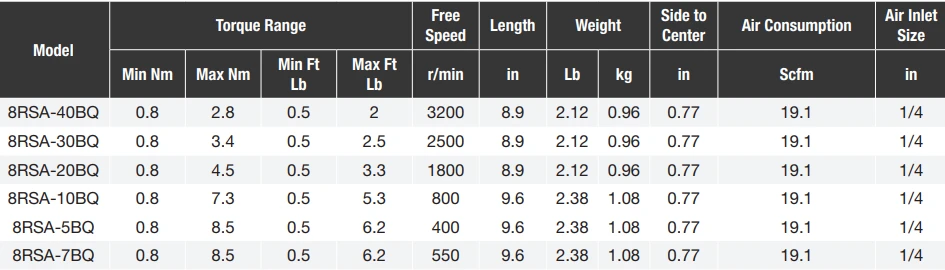

Type: Pneumatic Inline Screwdriver | Series: 8-Series | Model: 8RSA-7BQ | Start Type: Push-to-Start | Reverse Type: Push Button Reverse | Output Drive: 1/4" Hex Quick Change | Clutch: Clecomatic | Free Speed: 550 RPM | Torque Range: 0.5 - 6.2 ft-lbs / 0.8 - 8.5 Nm | Length: 9.6" | Weight: 2.38 lb / 1.08 kg | Side to Center: 0.77" | Air Consumption: 19.1 SCFM | Air Inlet: 1/4" NPT | Minimum Hose I.D.: 3/8" | Rated Air Pressure: 90 PSI

Features:

• 550 RPM free speed gives operators added control during screw seating and final rundown.
• Clecomatic clutch supports dependable repetitive torque accuracy for production fastening.
• Push-to-start operation helps streamline repeated screwdriving tasks by starting the tool through axial pressure on the bit.
• Push button reverse allows fast backing-out of screws during rework, adjustment, or disassembly.
• 1/4" hex quick change output works with common screwdriver bits and supports faster bit swaps.
• Compact inline configuration helps save space at assembly stations and keeps the tool aligned with the fastener.
• Cleco motor construction supports reliable service in pneumatic production tool environments.
• High parts interchangeability across compatible Cleco products helps simplify service planning and replacement parts support.

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Appliance assembly — fastening housings, brackets, covers, and small hardware where controlled torque helps protect parts.
• Automotive subassembly — installing interior components, trim hardware, fixtures, and light-duty fasteners before final vehicle integration.
• Light manufacturing — repetitive screwdriving on benches, fixtures, panels, and assembled products within the tool’s torque range.
• Electronics-adjacent assembly — fastening frames, enclosures, and non-micro components that require repeatable screw seating.
• MRO and repair benches — removing and reinstalling screws during maintenance, inspection, and small equipment repair.

FAQs:

• Q: Why choose the 550 RPM version instead of a faster 8-Series screwdriver?
  A: The 550 RPM speed gives the operator more control during rundown, especially when working with smaller parts, softer materials, or joints that need careful seating. Faster models may be better when cycle time is the main concern and the application can tolerate quicker rundown.
• Q: What does the Clecomatic clutch do?
  A: The Clecomatic clutch helps the tool shut off at the selected torque setting. This improves repeatability compared with relying only on operator feel, especially in repetitive assembly work.
• Q: What bits fit the Cleco 8RSA-7BQ?
  A: This model uses a 1/4" hex quick change output. Use compatible 1/4" hex screwdriver bits matched to the fastener style, torque level, and production requirements.
• Q: Can this screwdriver remove screws as well as install them?
  A: Yes. The push button reverse allows the operator to back out screws for correction, rework, or disassembly, provided the fastener is within the tool’s capability.
• Q: What air setup should be used with this tool?
  A: The tool is rated for 90 PSI and lists 19.1 SCFM air consumption. Use a properly sized air line, 3/8" minimum hose I.D., and clean regulated air for consistent performance.
