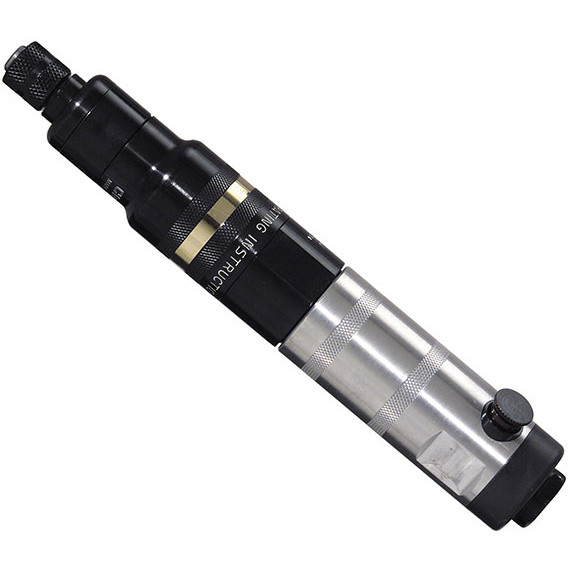

Cleco 8RSA-30BQ Push Button Reverse Inline Screwdriver | 8-Series | 2,500 RPM | 0.5 - 2.5 (ft-lbs) Torque Range

Built for fast, repeatable fastening in production assembly work, the Cleco 8RSA-30BQ push button reverse inline screwdriver gives operators a balanced option between high-speed rundown and controlled torque output. Its 2,500 RPM free speed helps shorten cycle time on smaller screws, while the 0.5 - 2.5 ft-lbs torque range supports low-torque assembly where repeatability matters more than breakaway force. The 1/4" hex quick change drive allows fast bit changes at the workstation, making this 8-Series model a practical fit for assembly lines using multiple screw styles or frequent bit changes.

The inline push-to-start layout activates the tool when forward pressure is applied, helping operators keep a steady fastening rhythm without using a separate trigger. Push button reverse allows quick screw removal or correction during rework, inspection, or adjustment. With a Clecomatic clutch (a mechanical clutch system used to improve torque repeatability at shutoff), 19.1 SCFM air consumption, and a compact inline body, the 8RSA-30BQ is suited for electronics, appliances, aerospace subassemblies, automotive trim, and general manufacturing stations that need controlled pneumatic screwdriving.

Type: Pneumatic Inline Screwdriver | Series: 8-Series | Model: 8RSA-30BQ | Throttle Style: Push-to-Start with Push Button Reverse | Drive Type: 1/4" Hex Quick Change | Torque Range: 0.5 - 2.5 ft-lbs | Torque Range: 0.8 - 3.4 Nm | Free Speed: 2,500 RPM | Length: 8.9 in. | Weight: 2.12 lbs. | Side to Center: 0.77 in. | Air Consumption: 19.1 SCFM | Air Inlet: 1/4" NPT | Minimum Hose I.D.: 3/8" | Air Pressure: 90 PSI

Features:

• 2,500 RPM free speed supports efficient rundown on smaller fasteners while maintaining more torque capacity than the faster 8RSA-40BQ model.
• Clecomatic clutch provides repeatable torque shutoff for production screwdriving and quality-focused assembly work.
• Push-to-start operation activates the screwdriver through forward pressure, helping reduce extra hand movement during repetitive cycles.
• Push button reverse allows operators to remove, correct, or reposition screws without switching tools.
• 1/4" hex quick change drive supports fast bit changes for stations handling different screw sizes or drive styles.
• Compact inline body helps improve access at bench, fixture, and assembly-line workstations.
• Standard equipment includes operating instructions, service manual, suspension bail, and torque springs required to meet the indicated torque range.

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Electronics assembly: Driving screws into covers, housings, brackets, and light component assemblies where controlled fastening is required.
• Appliance production: Installing screws in trim, panels, internal supports, and light mechanical subassemblies at repetitive workstations.
• Automotive interior and trim work: Fastening clips, covers, small brackets, and interior components that require consistent low-torque rundown.
• Aerospace subassembly: Repetitive screw installation in light assembly areas where inline access and clutch-controlled shutoff are important.
• General manufacturing and rework: Bench assembly, fixture-based fastening, inspection correction, and small-part repair using pneumatic screwdriver stations.

FAQs:

• Q: How does the 8RSA-30BQ compare with the 8RSA-40BQ?

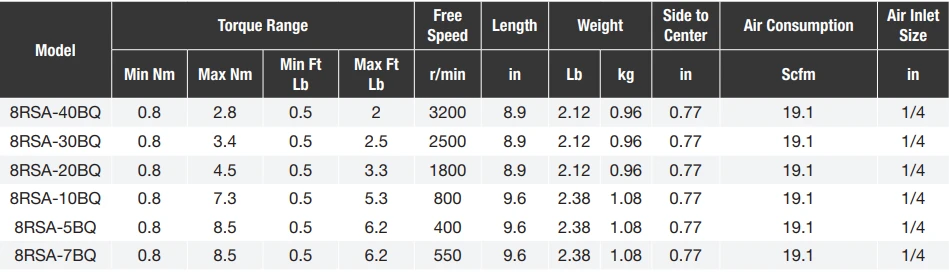

  A: The 8RSA-30BQ runs at 2,500 RPM with a 0.5 - 2.5 ft-lbs torque range. The 8RSA-40BQ runs faster at 3,200 RPM but has a lower maximum torque rating of 2 ft-lbs, so the 8RSA-30BQ is the better choice when the application needs slightly more torque with still-fast rundown speed.
• Q: What does “BQ” mean for this screwdriver?
  A: For this model, the BQ configuration uses a 1/4" hex quick-change drive. This lets operators change compatible screwdriver bits quickly without using a chuck key.
• Q: Is the Cleco 8RSA-30BQ reversible?
  A: Yes. The 8RSA-30BQ includes push-button reverse, allowing the operator to back out screws, correct misalignment, or handle light rework without changing tools.
• Q: What type of air setup is required?
  A: This screwdriver is rated for 90 PSI operation and lists 19.1 SCFM air consumption, a 1/4" NPT air inlet, and a 3/8" minimum hose I.D. The workstation air supply should maintain the required flow during repeated fastening cycles.
• Q: Can this tool remove seized screws or bolts?
  A: No. The 8RSA-30BQ is a clutch-controlled assembly screwdriver for repetitive screw installation and light rework. Stuck fasteners, bolts, or breakaway jobs require a properly selected removal tool, such as an impact wrench or drill.
