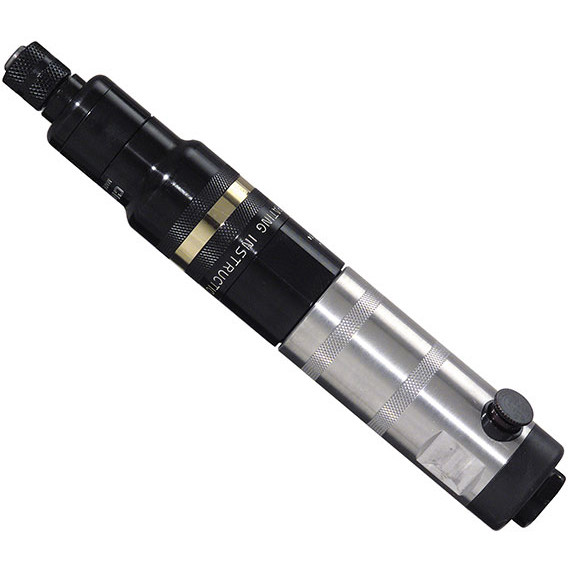

Cleco 8RSA-5BQ Push Button Reverse Inline Screwdriver | 8-Series | 400 RPM | 0.5 - 6.2 (ft-lbs) Torque Range

Built for light-to-medium assembly work where repeatable fastening matters, the Cleco 8RSA-5BQ Push Button Reverse Inline Screwdriver combines an inline body style with 400 RPM free speed and a 0.5 - 6.2 ft-lbs torque range for controlled screwdriving in production environments. The inline configuration keeps the tool aligned with the fastener, while the push-to-start operation helps reduce unnecessary trigger movement during repetitive rundown tasks. A push-button reverse function supports fast removal or correction of fasteners without changing tools.

Part of Cleco’s 8-Series, this pneumatic screwdriver uses a Clecomatic clutch (a torque-control clutch that helps deliver repeatable shut-off performance once the set torque is reached) for assembly applications where consistency is more important than raw speed. The 1/4" hex quick-change output drive allows fast bit changes, making the 8RSA-5BQ a practical choice for appliance assembly, electronics production, light manufacturing, and bench assembly stations that require controlled fastening with minimal tool repositioning.

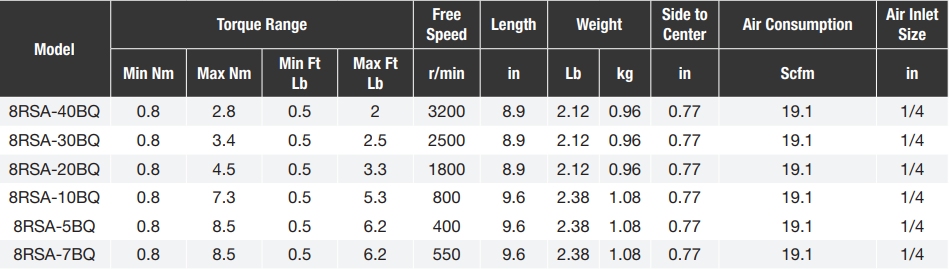

Type: Inline Pneumatic Screwdriver | Series: 8-Series | Start Type: Push-to-Start | Reverse Type: Push Button Reverse | Free Speed: 400 RPM | Torque Range: 0.5 - 6.2 ft-lbs / 0.8 - 8.5 Nm | Length: 9.6" | Weight: 2.38 lbs | Side to Center: 0.77" | Output Drive: 1/4" Hex Quick Change | Air Consumption: 19.1 SCFM | Air Inlet: 1/4" NPT | Minimum Hose I.D.: 3/8" | Rated Air Pressure: 90 PSI / 620 kPa

Features:

• Compact inline design supports efficient use at bench stations, assembly cells, and fixture-based work areas.
• Push-to-start operation activates the tool when the bit is pressed into the fastener, helping reduce hand movement during repetitive fastening.
• Push button reverse allows quick fastener removal or correction without switching tools or changing setup.
• Dependable Clecomatic clutch provides consistent torque accuracy and repeatability for controlled assembly work.
• Cleco motor construction supports reliable pneumatic performance in production fastening environments.
• 1/4" hex quick change output drive allows fast bit swaps for different screw types and assembly tasks.
• Easy to repair and maintain, with high parts interchangeability with other Cleco products.
• Standard equipment includes operating instructions and service manual, suspension bail, and all torque springs required to meet the indicated torque range.

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Appliance assembly: Fastening panels, brackets, covers, and internal components where repeatable torque control helps protect parts and threads.
• Electronics production: Running screws into enclosures, frames, and light assemblies, where controlled rundown is preferred over impact-style fastening.
• Automotive interior and component assembly: Installing trim, small brackets, housings, and subassemblies that require moderate torque and consistent repeatability.
• General manufacturing: Bench assembly, light fabrication, and repetitive fastening tasks using 1/4" hex screwdriver bits.
• Repair and rework stations: Removing and reinstalling screws during inspection, service, and production correction work.

FAQs:

• Q: What does push-to-start mean on the Cleco 8RSA-5BQ?
  A: Push-to-start means the screwdriver begins running when the bit is pressed into the fastener. This helps operators work quickly during repetitive assembly because there is no separate trigger motion required.
• Q: What is the benefit of the push button reverse?
  A: Push button reverse lets the operator back out screws or correct a fastener without changing tools. It is useful in assembly and rework areas where fastener removal is part of the normal process.
• Q: What type of bits does this screwdriver accept?
  A: The 8RSA-5BQ uses a 1/4" hex quick change output drive. Use compatible 1/4" hex screwdriver bits matched to the fastener style and application.
• Q: Is this tool for high-torque bolting?
  A: No. This is a controlled pneumatic screwdriver with a 0.5 - 6.2 ft-lbs torque range. It is intended for screwdriving and light-to-medium assembly fastening, not impact wrench or large bolt applications.
• Q: What air pressure is required for rated performance?
  A: Cleco rates this tool at 90 PSI / 620 kPa. Use a properly sized air supply, 3/8" minimum hose I.D., and clean regulated air to maintain consistent tool performance.

Looking for more information about Cleco Screwdriver? Click here to view the Catalog.

Need help selecting the correct Cleco Screwdrivers for your application? Please call (800) 608-5210 or email info@intlairtool.com
