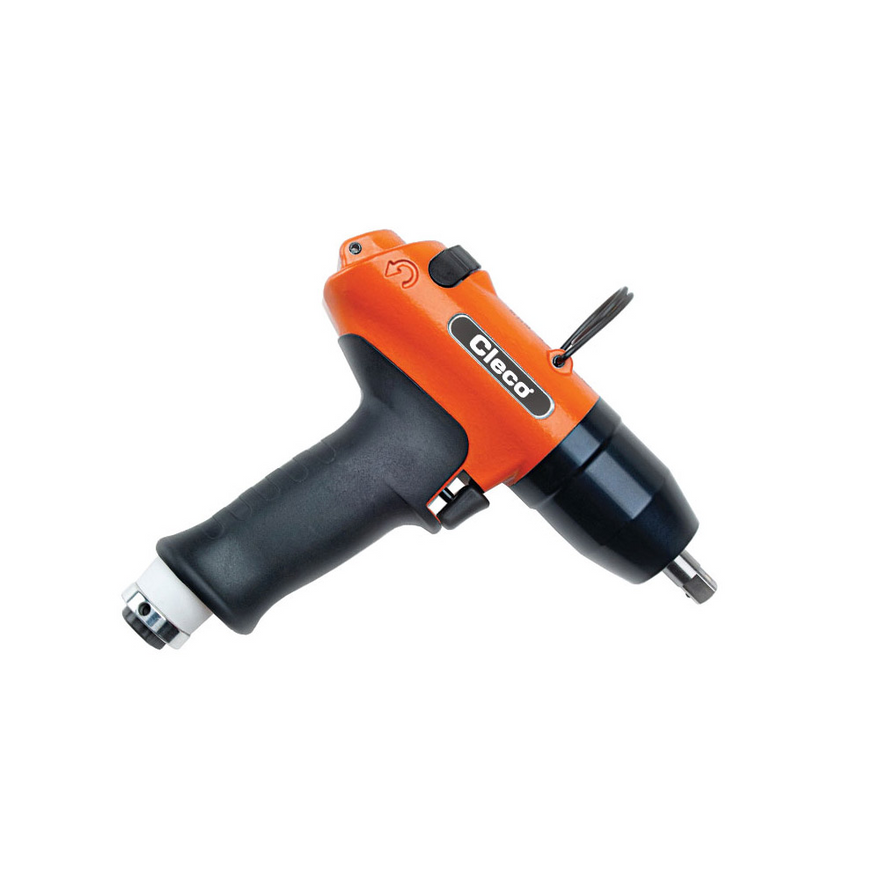

Cleco 7PTHH35Q Shut-Off Model Pneumatic Pulse Tool | H-Series | 3,500 RPM | 1/4" Quick Change Drive | 2.95 - 5.2 (ft-lbs) Torque Range

Built for controlled fastening on production lines, appliance assembly, automotive component work, and light industrial manufacturing, the Cleco 7PTHH35Q H-Series shut-off pneumatic pulse tool delivers a 2.95 - 5.2 ft-lbs torque range with a 1/4" quick change drive for fast bit changes between repeated fastening tasks. Its 3,500 RPM free speed helps run fasteners down quickly before final torque, while the hydraulic pulse mechanism reduces reaction force compared with conventional impact tools, helping operators maintain control through repetitive cycles.

The 7PTHH35Q uses an inertia shut-off system, meaning the tool automatically stops when the preset torque is reached to support repeatable fastening and reduce over-tightening risk. With 7.06 SCFM air consumption, a 1/4" air inlet, and a recommended 3/8" hose I.D., this H-Series pulse tool fits assembly stations where speed, low reaction, and torque consistency matter more than breakaway power.

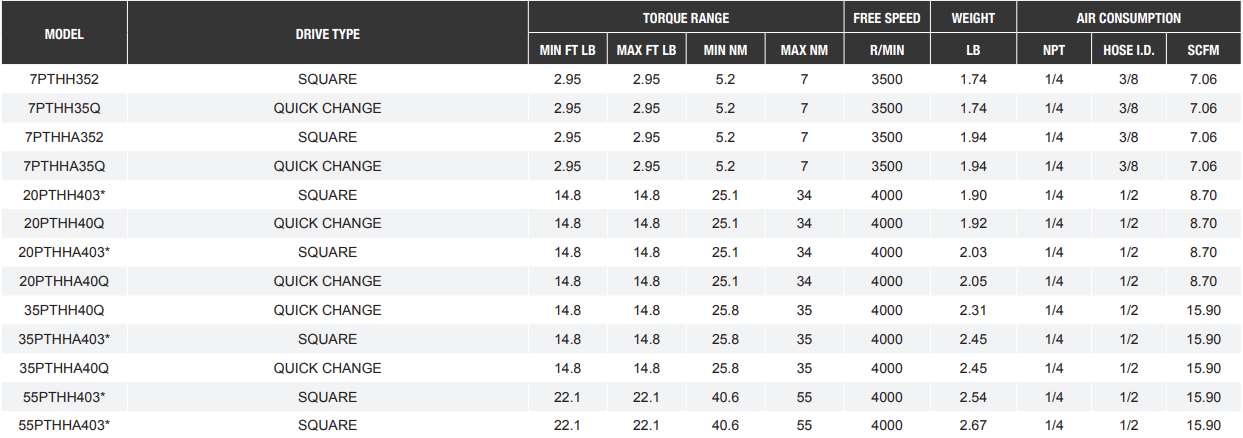

Type: Shut-Off Pneumatic Pulse Tool | Series: H-Series | Model: 7PTHH35Q | Drive Size: 1/4" | Drive Type: Quick Change | Torque Range: 2.95 - 5.2 ft-lbs | Torque Range: 4 - 7 Nm | Free Speed: 3,500 RPM | Air Consumption: 7.06 SCFM | Air Inlet: 1/4" | Recommended Hose I.D.: 3/8"

Features:

• Market leading repeatability, unmatched accuracy, and low maintenance construction for recurring assembly fastening.
• Inertia shut-off system stops the tool at the preset torque to help reduce over-tightening and support consistent rundown results.
• Hydraulic pulse mechanism delivers low-reaction fastening, making the tool easier to control during repeated production cycles.
• Low noise level supports assembly environments where operator exposure and workstation communication matter.
• Efficient 3-chamber air motor provides fast rundown speed while keeping air demand at 7.06 SCFM.
• External speed control lets the user adjust rundown behavior without opening the tool.
• Oilless blades and reversible torque signal port support cleaner operation and integration into controlled fastening processes.
• Lightweight pistol-grip configuration helps reduce strain during frequent starts, stops, and bit changes.

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Production assembly: Repetitive fastening where shut-off control helps keep torque output consistent from part to part.
• Automotive component assembly: Installing small fasteners on brackets, interior components, subassemblies, and light mechanical assemblies.
• Appliance and electronics manufacturing: Running screws into housings, frames, panels, and fixtures where a 1/4" quick change drive speeds bit swaps.
• Industrial workstations: Low-reaction fastening at benches, jigs, and fixtures where operators complete frequent fastening cycles.
• MRO and repair departments: Controlled fastening for small assemblies when an impact wrench would be too aggressive.

FAQs:

• Q: What is a pneumatic pulse tool used for?
  A: A pneumatic pulse tool is used for controlled fastening where lower reaction force and repeatable torque are important. It is commonly used on assembly lines and workstation fastening jobs rather than high-torque bolt removal.
• Q: What does shut-off mean on the Cleco 7PTHH35Q?
  A: Shut-off means the tool stops automatically when the preset torque is reached. This helps reduce over-tightening and improves consistency on repeated fastening cycles.
• Q: What bits work with the 1/4" quick change drive?
  A: The 1/4" quick change drive accepts compatible 1/4" hex power bits and bit holders. Always match the bit style and fastener size to the application and torque setting.
• Q: Is this tool suitable for removing lug nuts or heavy fasteners?
  A: No. The 7PTHH35Q has a 2.95 - 5.2 ft-lbs torque range and is intended for light controlled fastening. Use an impact wrench or higher-torque nutrunner for lug nuts, structural bolts, or seized fasteners.
• Q: What air setup is recommended?
  A: Use clean, regulated compressed air through a properly sized air line. This model lists 7.06 SCFM air consumption, a 1/4" air inlet, and a recommended 3/8" hose I.D.

Looking for more information about Cleco Pulse Tool? Click here to view the Catalog.

Need help selecting the correct Cleco Pulse Tools for your application? Please call (800) 608-5210 or email info@intlairtool.com
