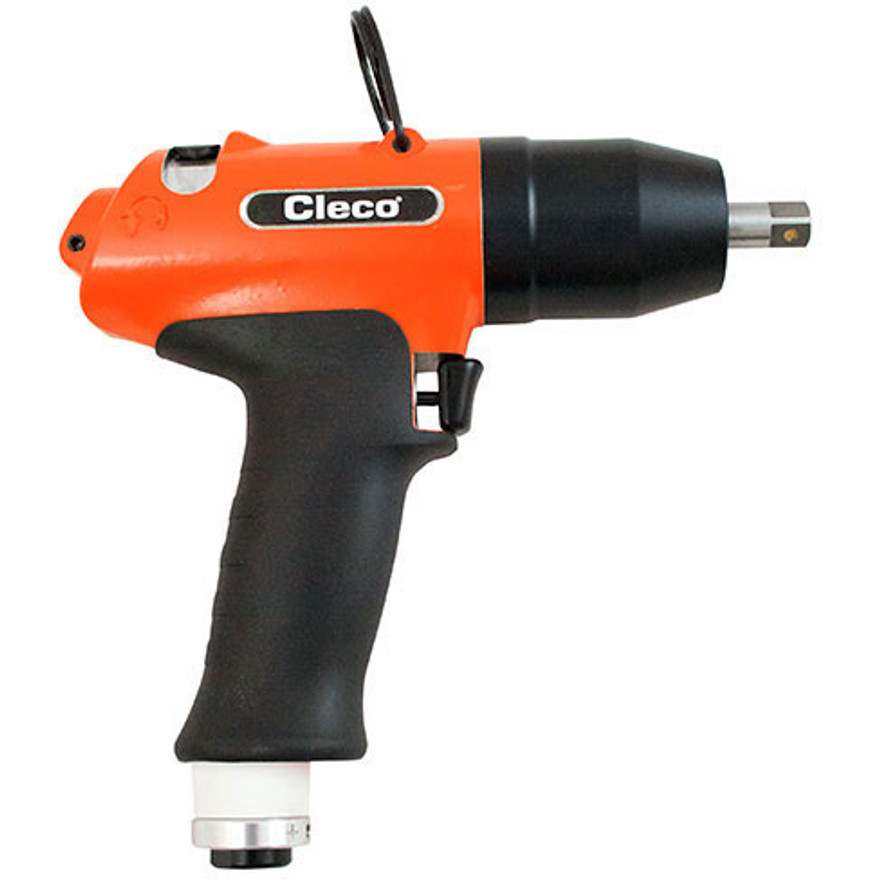

Cleco 11PTHH35Q Shut-Off Model Pneumatic Pulse Tool | H-Series | 3,500 RPM | 1/4" Quick Change Drive | 4.43 - 8.1 (ft-lbs) Torque Range

When your assembly station needs controlled fastening in a slightly higher low-torque range, the Cleco 11PTHH35Q H-Series shut-off pneumatic pulse tool delivers a 4.43 - 8.1 ft-lbs torque range with a 1/4" quick change drive for fast bit changes during repetitive production work. Its 3,500 RPM free speed helps run fasteners down efficiently before final torque, while the hydraulic pulse mechanism reduces reaction force compared with traditional impact tools, helping operators maintain control over repeated fastening cycles.

The 11PTHH35Q uses a shut-off mechanism, meaning the tool stops once the preset torque is reached to support repeatable fastening and help prevent over-tightening. With 7.06 SCFM air consumption, a 1/4" NPT air inlet, and a recommended 3/8" hose I.D., this pistol-grip pulse tool is well-suited for light assembly, component installation, and workstation fastening where torque control matters more than breakaway force.

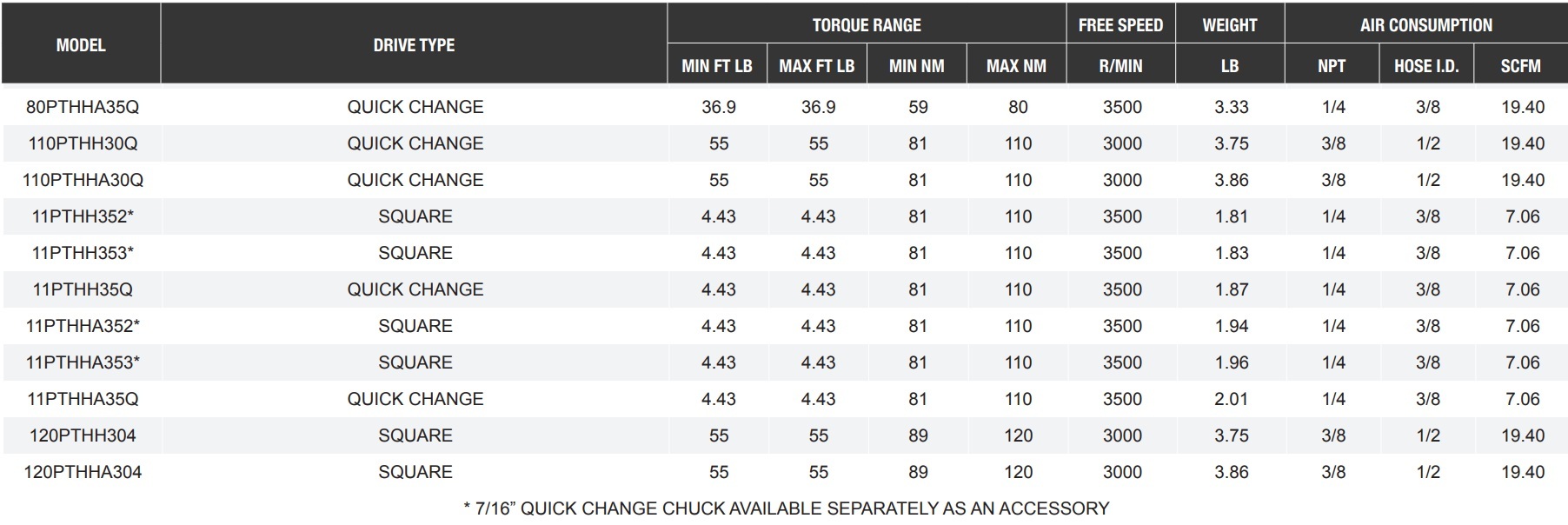

Type: Shut-Off Pneumatic Pulse Tool | Series: H-Series | Model: 11PTHH35Q | Drive Size: 1/4" | Drive Type: Quick Change | Torque Range: 4.43 - 8.1 ft-lbs | Torque Range: 6 - 11 Nm | Free Speed: 3,500 RPM | Weight: 1.87 lbs | Air Consumption: 7.06 SCFM | Air Inlet: 1/4" NPT | Recommended Hose I.D.: 3/8"

Features:

• Shut-off model helps stop the tool at the preset torque for repeatable fastening in production environments.
• Hydraulic pulse mechanism delivers low-reaction torque output, reducing the kickback commonly associated with impact fastening.
• 1/4" quick change drive supports fast bit swaps for assembly stations using multiple fastener styles.
• 3,500 RPM free speed helps improve rundown time before the tool reaches final torque.
• Compact 1.87 lb body supports frequent fastening cycles without adding unnecessary tool weight at the workstation.
• 7.06 SCFM air consumption helps simplify integration into properly sized compressed air systems.
• Pistol-grip configuration provides familiar handling for horizontal, vertical, and fixture-based fastening positions.

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Light industrial assembly: Fastening small bolts and screws where the 4.43 - 8.1 ft-lbs torque range matches the joint requirement.
• Automotive component work: Installing brackets, interior parts, small housings, and subassemblies with controlled torque.
• Appliance and electronics production: Running fasteners into panels, covers, frames, and equipment housings without using an oversized impact tool.
• Bench and fixture stations: Repetitive fastening where low reaction force and quick bit changes help keep assembly flow consistent.
• Maintenance and repair departments: Controlled small-fastener work on equipment covers, guards, brackets, and serviceable assemblies.

FAQs:

• Q: What is the Cleco 11PTHH35Q used for?
  A: The 11PTHH35Q is used for controlled low-torque fastening in assembly and maintenance work. It is best suited for repeated fastening cycles where consistent torque and reduced reaction force are more important than high breakaway torque.
• Q: What does shut-off mean on this pulse tool?
  A: Shut-off means the tool automatically stops when the preset torque is reached. This helps reduce over-tightening and supports more consistent fastening from one cycle to the next.
• Q: What is the benefit of a hydraulic pulse tool?
  A: A hydraulic pulse tool delivers torque in pulses with lower reaction force than a conventional impact wrench. This can make repetitive fastening easier to control, especially on production lines and bench assembly stations.
• Q: What bits fit the 1/4" quick change drive?
  A: The 1/4" quick change drive is intended for compatible 1/4" hex power bits and bit holders. Match the bit style, fastener size, and torque setting to the application before use.
• Q: Is the 11PTHH35Q appropriate for automotive lug nuts?
  A: No. This model has a 4.43 - 8.1 ft-lbs torque range and is intended for small controlled fastening. Lug nuts, seized bolts, and high-torque service work require a properly sized impact wrench or higher-torque nutrunner.

Looking for more information about Cleco Pulse Tool? Click here to view the Catalog.

Need help selecting the correct Cleco Pulse Tools for your application? Please call (800) 608-5210 or email info@intlairtool.com
