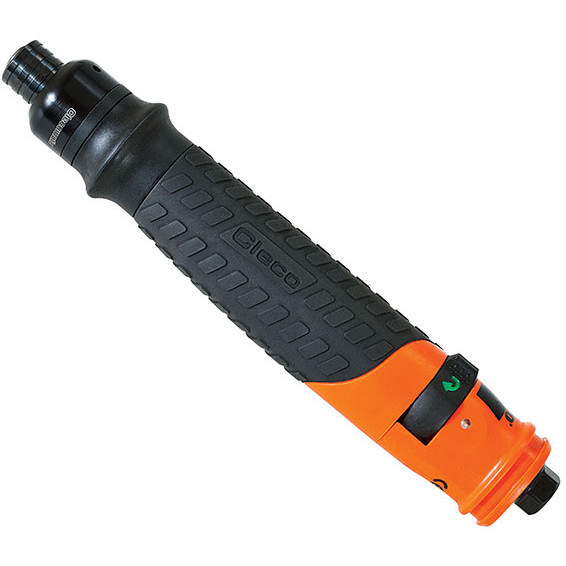

Cleco 19SCA06Q Collar Reverse Inline Pneumatic Screwdriver | 19 Series | 260 RPM | 0.3 - 3.7 (ft-lbs) Torque Range | 1/4" Hex Quick Change Drive

Built for light and medium assembly fastening, the Cleco 19SCA06Q Collar Reverse Inline Pneumatic Screwdriver gives technicians controlled rundown speed and repeatable torque in a compact inline format. This 19 Series model runs at 260 RPM, making it a good fit for assemblies where controlled fastening matters more than high-speed production rundown. Its 1/4" hex quick change drive accepts common insert bits and allows faster bit changes between jobs, while the collar reverse function lets operators switch direction at the tool for fastener removal or correction.

The CLECOMatic clutch is Cleco’s precision shut-off clutch system, meaning the tool stops driving once the preset torque is reached instead of dwelling on the fastener like a stall tool. That helps reduce fastener damage, tool wear, and operator fatigue during repetitive assembly work. Manufacturer data lists a tool torque range of 10–45 in-lbs. and a standard spring torque range of 10–38 in-lbs., giving buyers a controlled fastening window for electronics, appliances, automotive interiors, aerospace, and general light manufacturing applications.

Type: Inline Pneumatic Screwdriver | Series: Cleco 19 Series | Model: 19SCA06Q | Start Type: Push and Lever Start | Reverse Type: Collar Reverse | Drive: 1/4" Hex Quick Change | Free Speed: 260 RPM | Tool Torque Range: 10–45 in-lbs. / 1.1–5.1 Nm | Standard Spring Torque Range: 10–38 in-lbs. / 1.1–4.3 Nm | Overall Length: 10.2" / 259 mm | Weight: 1.6 lbs. / 0.74 kg | Air Inlet: 1/8" NPT | Minimum Hose I.D.: 3/16" | Air Consumption: 11 SCFM

Features:

• CLECOMatic clutch provides controlled shut-off at the preset torque for repeatable fastening results.
• Collar reverse allows quick directional changes without repositioning the tool in the operator’s hand.
• Push and lever start configuration supports flexible operation based on the fastening position and user preference.
• 1/4" hex quick change drive speeds bit changes for mixed fastener work and frequent bit replacement.
• External torque adjustment helps simplify setup when changing fastener sizes or assembly requirements.
• Easy access torque verification port supports routine checks in production and quality-controlled environments.
• Grip material is tested to withstand a range of industrial chemicals used in assembly and maintenance areas.
• CLECOMatic clutch design does not dwell on the fastener, helping reduce tool wear and operator fatigue compared with stall-style screwdrivers.

Made in USA:

Applications:

• Electronics assembly — controlled fastening of housings, covers, brackets, and small machine screws.
• Appliance manufacturing — repetitive screwdriving on panels, trim, brackets, and light-duty assemblies.
• Automotive interior assembly — fastening clips, trim components, interior panels, and low-torque hardware.
• Aerospace and precision manufacturing — controlled assembly work where torque repeatability and lightweight handling matter.
• Maintenance and repair benches — bit-driven fastening tasks where an inline pneumatic screwdriver is easier to control than a pistol grip tool.

FAQs:

• Q: What type of clutch does the Cleco 19SCA06Q use?
  A: It uses Cleco’s CLECOMatic shut-off clutch, which stops the tool when the preset torque is reached. This is preferred for repeatable assembly fastening where torque control matters.
• Q: What bits fit this screwdriver?
  A: The 19SCA06Q uses a 1/4" hex quick change drive, so it accepts compatible 1/4" hex insert bits used for common screwdriving applications.
• Q: What does collar reverse mean?
  A: Collar reverse means the operator changes direction using a collar on the tool body. It is useful when backing out screws, correcting mis-started fasteners, or moving between install and removal tasks.
• Q: Is this screwdriver for high-torque bolts?
  A: No. This is a precision pneumatic screwdriver for light and medium assembly fastening. For bolts, nuts, or larger threaded fasteners, use an impact wrench, nutrunner, or higher-torque assembly tool matched to the application.
• Q: What air supply does this tool require?
  A: Manufacturer data lists 11 SCFM air consumption, a 1/8" NPT air inlet, and a 3/16" minimum hose I.D. Use a properly regulated and lubricated air supply for consistent fastening performance.
