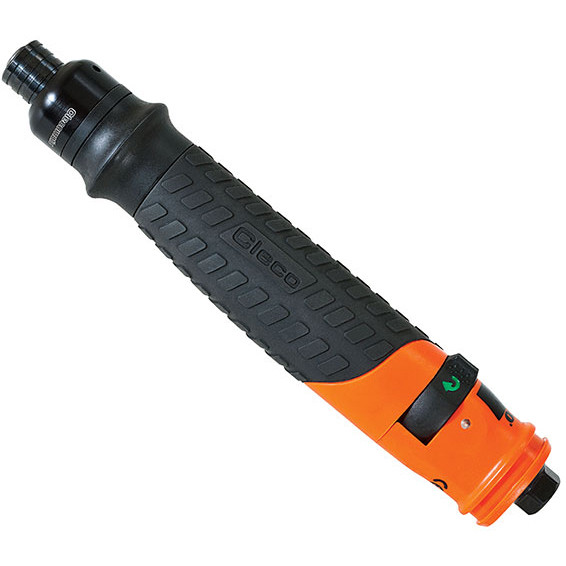

Cleco 19SCA02Q Collar Reverse Inline Pneumatic Screwdriver | 19 Series | 2,800 RPM | 0.3 - 1.6 (ft-lbs) Torque Range | 1/4" Hex Quick Change Drive

Built for repetitive light-to-medium assembly fastening, the Cleco 19SCA02Q collar reverse inline pneumatic screwdriver combines a slim inline body with a 1/4" hex quick-change drive for fast bit changes at the bench or on the production line. Its 2,800 RPM free speed helps reduce cycle time on smaller screws, while the 0.3 - 1.6 ft-lbs torque range gives assemblers controlled fastening output for electronics, appliances, aerospace, and general manufacturing work where repeatability matters more than raw power.

This 19 Series model uses Cleco’s CLECOmatic clutch, a shut-off style clutch that stops air flow when the preset torque is reached to help reduce fastener over-tightening and unnecessary tool dwell. The collar reverse configuration lets the operator change direction at the tool, and the inline shape supports straight-on screwdriving where a pistol grip may interfere with fixture access or part clearance.

Type: Inline Pneumatic Screwdriver | Series: 19 Series | Model: 19SCA02Q | Start / Reverse Style: Collar Reverse, Push and Lever Start | Drive Type: 1/4" Hex Quick Change | Torque Range: 0.3 - 1.6 ft-lbs | Free Speed: 2,800 RPM | Length: 9.8" | Weight: 1.5 lbs | Air Inlet: 1/8" NPT | Air Consumption: 11 SCFM | Required Air Pressure: 90 PSI

Features:

• Durable CLECOmatic clutch supports torque repeatability and a long calibration cycle in repetitive fastening work
• Shut-off clutch action helps stop the tool at the preset torque instead of dwelling on the fastener like a stall-type screwdriver
• 2,800 RPM free speed supports fast run-down on small screws before final torque shut-off
• 1/4" hex quick-change drive allows fast bit changes without a separate chuck key
• Inline handle configuration keeps the tool aligned with the fastener for bench assembly, fixture work, and straight-access fastening
• Collar reverse control lets the operator switch direction at the tool for installation and removal tasks
• Grip material is tested to withstand a range of industrial chemicals commonly encountered in production environments
• Standard equipment includes operating instructions, service manual, suspension bail, and torque springs required to meet the indicated torque range

Made in USA:

Applications:

• Electronics assembly — fastening small screws into housings, panels, brackets, and light-duty subassemblies where torque control is important
• Appliance manufacturing — repetitive screwdriving on covers, trim pieces, access panels, and production-line components
• Aerospace and precision assembly — controlled fastening in bench, fixture, and light structural assembly tasks within the tool’s torque range
• General manufacturing — installing and removing screws in small assemblies, fixtures, and workstations using compatible 1/4" hex bits
• Maintenance and repair benches — repetitive disassembly and reassembly work where an inline air screwdriver improves speed over hand tools

FAQs:

• Q: What type of screwdriver is the Cleco 19SCA02Q?
  A: The 19SCA02Q is an inline pneumatic screwdriver with a collar reverse control and 1/4" hex quick change drive. It is built for repetitive light-to-medium assembly fastening rather than high-torque bolting.
• Q: What does the CLECOmatic clutch do?
  A: The CLECOmatic clutch is a shut-off clutch that stops the tool when the preset torque is reached. This helps improve fastening consistency and reduces unnecessary dwell on the screw after torque is achieved.
• Q: What bits fit this screwdriver?
  A: This model uses a 1/4" hex quick change drive, so it accepts compatible 1/4" hex screwdriver bits. Bit selection should match the screw head style and the fastening torque required for the assembly.
• Q: How much air does this tool require?
  A: The tool requires 90 PSI for maximum rated torque and has an air consumption rating of 11 SCFM. Use properly sized air supply components to avoid pressure drop during repetitive fastening.
• Q: Is this a good choice for automotive lug nuts or large fasteners?
  A: No. This is a precision assembly screwdriver with a 0.3 - 1.6 ft-lbs torque range. For lug nuts, structural bolts, or larger service fasteners, use an impact wrench or nutrunner sized for that torque requirement.
