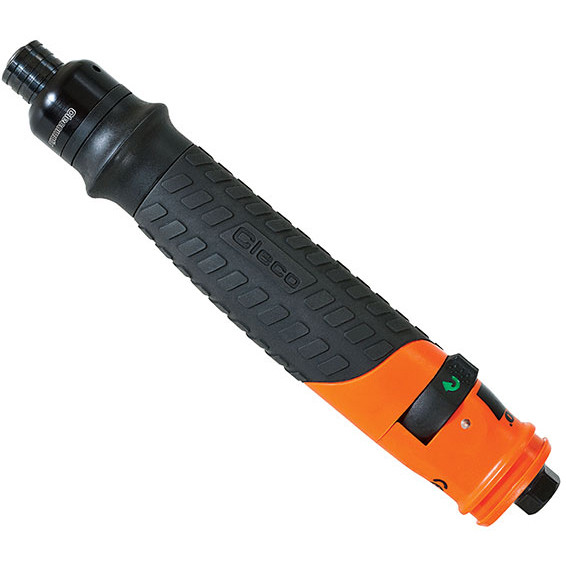

Cleco 19SCA05Q Collar Reverse Inline Pneumatic Screwdriver | 19 Series | 660 RPM | 0.3 - 3.7 (ft-lbs) Torque Range | 1/4" Hex Quick Change Drive

Built for controlled fastening in light- and medium-duty assembly stations, the Cleco 19SCA05Q inline pneumatic screwdriver combines a 660 RPM free speed with a 10–45 in.-lbs. torque range for slower, more controlled screw run-down than higher-speed models in the same 19 Series family. Its 1/4" hex quick change drive accepts common screwdriver bits, making it practical for repetitive fastening where bit changes, torque repeatability, and clean inline access are daily requirements.

The 19SCA05Q uses a Clecomatic clutch (Cleco’s automatic shut-off clutch that stops the tool once the preset torque is reached) to help reduce over-tightening and improve assembly consistency. The collar reverse configuration places directional control at the tool body, while lever push-to-start operation helps the operator keep the bit seated before the tool begins driving. At 10.2" overall length and 1.6 lbs., this model fits production benches, fixture work, and precision assembly areas where a compact inline screwdriver is preferred.

Type: Inline Pneumatic Screwdriver | Series: 19 Series | Model: 19SCA05Q | Start Type: Lever Push-to-Start | Reverse Type: Collar Reverse | Clutch Type: Clecomatic Shut-Off Clutch | Drive: 1/4" Hex Quick Change | Torque Range: 10–45 in.-lbs. / 1.1–5.1 Nm | Torque Range with Standard Spring: 10–38 in.-lbs. / 1.1–4.3 Nm | Free Speed: 660 RPM | Length: 10.2" / 259 mm | Weight: 1.6 lbs. / 0.73 kg | Air Inlet: 1/8" NPT | Minimum Hose I.D.: 3/16" | Air Consumption: 11 SCFM | Required Air Pressure: 90 PSI / 620 kPa

Features:

• Durable Clecomatic clutch supports repeatable torque control and long calibration intervals in production fastening environments.
• Automatic shut-off action helps stop the tool at the selected torque, reducing fastener damage and improving assembly consistency.
• 660 RPM free speed gives operators more controlled screw run-down on applications where slower speed is preferred.
• 1/4" hex quick change drive allows quick bit swaps for common assembly screwdriver bits.
• Lever push-to-start operation helps the operator seat the bit before activating the tool.
• Collar reverse design provides forward and reverse control directly at the tool body.
• Grip material is tested to withstand a range of industrial chemicals commonly found in manufacturing and maintenance areas.
• Standard equipment includes operating instructions and service manual, suspension bail, all torque springs required to meet the indicated torque, and lever-only conversion kit 301409.

Made in USA:

Applications:

• Electronics and appliance assembly — fastening covers, brackets, panels, and small components where controlled screw run-down is important.
• Automotive interior and subassembly work — installing trim hardware, electrical brackets, light fasteners, and small production components.
• Aerospace and precision manufacturing — controlled fastening on light assemblies where repeatable torque helps protect parts and threaded inserts.
• General production benches — repetitive screwdriving in fixtures, cells, and workstations using compatible 1/4" hex insert bits.
• Maintenance and tool crib replacement — updating older inline pneumatic screwdriver setups with a current Cleco 19 Series shut-off clutch model.

FAQs:

• Q: What is the torque range of the Cleco 19SCA05Q?
  A: The manufacturer-listed tool torque range is 10–45 in.-lbs. / 1.1–5.1 Nm. With the standard spring, the listed range is 10–38 in.-lbs. / 1.1–4.3 Nm.
• Q: What does the Clecomatic clutch do?
  A: The Clecomatic clutch is an automatic shut-off clutch. It stops the screwdriver when the preset torque is reached, helping improve repeatability and reduce the chance of over-driving fasteners.
• Q: What bits fit this model?
  A: The 19SCA05Q uses a 1/4" hex quick change drive for compatible 1/4" hex screwdriver bits. Select the bit style and length based on the fastener head, access, and assembly fixture.
• Q: Why choose the 660 RPM version instead of a faster 19 Series screwdriver?
  A: The 660 RPM speed is useful when the application benefits from more controlled run-down, especially on smaller assemblies, sensitive materials, or fastening stations where overspeed can make alignment harder.
• Q: What air supply does this screwdriver require?
  A: Cleco lists the tool at 90 PSI / 620 kPa, with 11 SCFM air consumption, a 1/8" NPT air inlet, and a 3/16" minimum hose I.D. Use clean, regulated air and a properly sized FRL for best performance.
