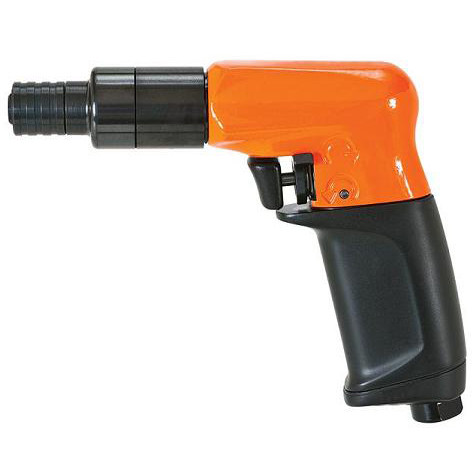

Cleco 19PTS04Q P-Handle Pneumatic Screwdriver | Trigger Start | 19 Series | 1,100 RPM | 3.3 (ft-lbs) Max Torque | 1/4" Hex Quick Change Drive

Built for low-speed, higher-torque fastening in light assembly environments, the Cleco 19PTS04Q P-handle pneumatic screwdriver delivers 1,100 RPM free speed with 3.3 ft-lbs maximum torque. This model is suited to applications where the fastener needs more driving force than the faster 19 Series variants can provide, while still keeping the tool compact enough for bench work, production cells, and repetitive screwdriving tasks.

The 1/4" hex quick change drive accepts common industrial power bits and helps reduce changeover time when operators move between screw styles. Its stall clutch stops by motor resistance at the selected torque level, giving the operator straightforward control during final seating. The P-handle configuration helps apply steady forward pressure into the joint, which is especially useful for thread-forming screws, thread-cutting screws, and small fasteners that require positive engagement before rundown.

Type: Pneumatic Screwdriver | Series: Cleco 19 Series | Model: 19PTS04Q | Handle Style: P-Handle | Start Type: Trigger Start | Clutch Type: Stall | Drive: 1/4" Hex Quick Change | Free Speed: 1,100 RPM | Max Torque: 40 in-lbs / 4.5 Nm / 3.3 ft-lbs | Air Inlet: 1/4" NPT | Air Pressure: 90 PSI | Air Consumption: 11 SCFM

Features:

• Stall clutch fastening provides simple torque control for assembly work where the operator manages the final screw seating.
• 1,100 RPM free speed supports controlled rundown when more driving force is needed than higher-speed 19 Series models provide.
• 3.3 ft-lbs maximum torque makes this model suitable for larger low-torque screws, small machine screws, and light production fastening.
• 1/4" hex quick change drive accepts compatible power bits and supports faster bit swaps between assembly tasks.
• Trigger start operation gives the operator direct fingertip control for intermittent or repetitive fastening cycles.
• P-handle shape helps maintain forward pressure during push-sensitive fastening applications.
• Reverse capability supports screw removal, correction, and rework without changing tools.
• Compact 19 Series pneumatic design fits workstations where tool size, speed, and handling control all matter.

Applications:

• General assembly production — driving screws into brackets, covers, housings, and small mechanical assemblies.
• Appliance and equipment manufacturing — fastening panels, guards, trim pieces, and light structural components.
• Automotive component work — installing small hardware in interior assemblies, accessory brackets, and light-duty subassemblies.
• MRO and repair benches — removing and reinstalling screws during rebuilds, inspections, and service operations.
• Workshop fastening — controlled pneumatic screwdriving for small fixtures, repair projects, and repeat fastener installation.

FAQs:

• Q: When should I choose the 19PTS04Q instead of a faster 19 Series screwdriver?
  A: Choose the 19PTS04Q when the application needs more torque and a more controlled rundown speed. Its 1,100 RPM speed and 3.3 ft-lbs maximum torque make it better suited to higher-resistance low-torque fastening than the faster, lower-torque 19PTS02Q or 19PTS03Q models.
• Q: What does the stall clutch do?
  A: A stall clutch stops the tool when motor resistance rises at the selected torque level. It is a practical clutch style for assembly operations where the operator can feel and control the final seating of the screw.
• Q: What bits are compatible with this Cleco screwdriver?
  A: The 19PTS04Q uses a 1/4" hex quick change drive. Use compatible 1/4" hex power bits matched to the screw head, fastener size, and material being assembled.
• Q: Can this model be used for removing screws?
  A: Yes. Reverse operation allows the tool to back out screws for rework, repair, or fastener correction.
• Q: What air supply should be used with the 19PTS04Q?
  A: Manufacturer data lists 90 PSI operating pressure, 11 SCFM air consumption, and a 1/4" NPT air inlet. Use clean, regulated, lubricated air and confirm that the compressor can maintain airflow during repeated fastening cycles.
