Cleco 19PTS02Q P-Handle Pneumatic Screwdriver | Trigger Start | 19 Series | 2,800 RPM | 1.5 (ft-lbs) Max Torque | 1/4" Hex Quick Change Drive

Built for light assembly fastening, small hardware installation, and controlled rundown work, the Cleco 19PTS02Q P-handle pneumatic screwdriver combines a 19 Series stall clutch with 2,800 RPM free speed for fast screw seating on low-torque applications. Its 1.5 ft-lbs max torque rating, equivalent to approximately 19 in-lbs / 2.1 Nm, makes it a practical choice for lighter threaded fasteners where speed, repeatability, and handling control matter more than high breakaway force.

The 1/4" hex quick change drive accepts common power bits and allows faster bit swaps between jobs, while the trigger start layout gives the operator familiar fingertip control. The P-handle configuration helps apply forward pressure during fastening, especially when working with thread-forming or thread-cutting screws that require a steady push force into the joint.

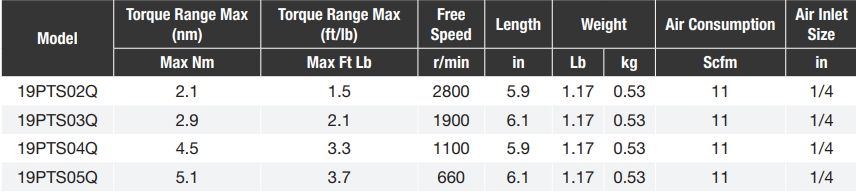

Type: Pneumatic Screwdriver | Series: Cleco 19 Series | Model: 19PTS02Q | Handle Style: P-Handle | Start Type: Trigger Start | Clutch Type: Stall | Drive: 1/4" Hex Quick Change | Free Speed: 2,800 RPM | Max Torque: 19 in-lbs / 2.1 Nm / 1.5 ft-lbs | Overall Length: 5.9" / 150 mm | Weight: 1.16 lbs / 0.5 kg | Air Inlet: 1/4" NPT | Minimum Hose I.D.: 3/8" | Air Consumption: 11 SCFM

Features:

• Stall clutch operation stops the tool by motor resistance at the set torque, making it suitable for controlled fastening where the operator manages final seating.
• 2,800 RPM free speed supports fast rundown on small screws and repetitive assembly work.
• 1/4" hex quick change drive allows quick bit changes without a separate chuck key.
• Trigger start control gives the operator familiar, responsive actuation during intermittent fastening tasks.
• P-handle style helps the operator maintain forward pressure during thread-forming, thread-cutting, or push-sensitive fastening jobs.
• External torque adjustment supports faster setup changes when moving between compatible fastener sizes or joint conditions.
• Adjustable reverse lever supports true one-hand operation for left- or right-handed users.
• Two interchangeable soft-touch grip sizes help match the handle feel to operator preference.

Made in USA:

Applications:

• Light manufacturing assembly — driving small screws into housings, brackets, covers, and subassemblies where repeatable low torque is required.
• Electronics and appliance production — fastening panels, guards, trim pieces, and light-duty components without moving to a larger, higher-torque tool.
• Automotive interior and component work — installing small fasteners in dashboards, trim assemblies, light brackets, and accessory components.
• Maintenance and repair benches — repetitive screw removal and installation in shop, MRO, and repair-cell environments.
• DIY garage and workshop use — controlled fastening for small hardware, assemblies, and repair projects when a properly sized air supply is available.

FAQs:

• Q: What does a stall clutch do on this Cleco screwdriver?
  A: A stall clutch stops driving when the tool reaches resistance at the selected torque. It is a simple, durable clutch style often used for low-torque assembly work where the operator can control the final seating of the fastener.
• Q: What bits fit the 19PTS02Q?
  A: This model uses a 1/4" hex quick change drive, so it accepts compatible 1/4" hex power bits. Always match the bit style and length to the screw head and application.
• Q: Is the 1.5 ft-lbs torque rating suitable for larger screws or bolts?
  A: No. The 19PTS02Q is a low-torque assembly screwdriver rated around 19 in-lbs / 2.1 Nm. It is intended for smaller fasteners, not larger bolts or high breakaway fastening tasks.
• Q: What air setup is required?
  A: Manufacturer data lists 11 SCFM, a 1/4" NPT air inlet, and a 3/8" minimum hose I.D. Use a properly sized air line and clean, regulated, lubricated air for consistent performance.
• Q: Why choose the P-handle version instead of an inline screwdriver?
  A: The P-handle shape gives the operator more leverage and forward push force, which can be useful when driving thread-forming or thread-cutting fasteners. Inline models are often preferred when straight-line access and pencil-style handling are more important.
