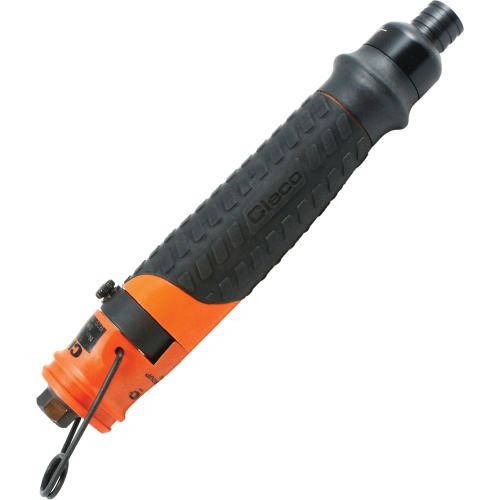

Cleco 19BPA05Q Push Button Reverse Inline Pneumatic Screwdriver | 19 Series | 560 RPM | 0.3 - 3.7 (ft-lbs) Torque Range | 1/4" Hex Quick Change Drive

Built for repeatable screwdriving in assembly cells, bench workstations, and fixture-supported fastening, the Cleco 19BPA05Q combines a straight inline body with push-to-start operation and push-button reverse. Its 560 RPM free speed gives operators controlled rundown speed for medium-torque fasteners, while the 1/4" hex quick change drive supports fast bit swaps between common screw styles. The Clecomatic clutch (a torque-control clutch that shuts the tool off when the preset torque is reached) helps improve fastening consistency compared with running screws by feel.

The 19BPA05Q fits production environments where torque control, straight access, and station-to-station repeatability matter. Its 10-45 in-lbs / 1.1-5.1 Nm torque range covers light assembly screws through moderate fastening work, while the compact 9.5" overall length and 1.5 lb tool weight make it practical for repetitive use at workbenches, vertical fastening positions, and line-side maintenance stations.

Type: Inline Pneumatic Screwdriver | Series: 19 Series | Model: 19BPA05Q | Start Type: Push-to-Start | Reverse Type: Push Button Reverse | Drive: 1/4" Hex Quick Change | Free Speed: 560 RPM | Torque Range: 10-45 in-lbs / 1.1-5.1 Nm | Torque Range with Standard Spring: 10-38 in-lbs / 1.1-4.3 Nm | Overall Length: 9.5" / 241 mm | Weight: 1.5 lbs / 0.68 kg | Air Inlet: 1/8" NPT | Minimum Hose I.D.: 1/4" | Air Consumption: 11 SCFM | Required Air Pressure: 90 PSI / 620 kPa

Features:

• Clecomatic clutch provides automatic shut-off at the selected torque setting for controlled fastening in repetitive assembly work.
• Push-to-start actuation starts the screwdriver when the bit is pressed into the fastener, reducing extra hand movement during high-cycle screwdriving.
• Push button reverse lets operators back out screws quickly for rework, alignment correction, or service tasks.
• 1/4" hex quick change drive accepts compatible quick-change screwdriver bits for efficient setup changes.
• Inline configuration supports straight-on access to fasteners in bench fixtures, recessed locations, and vertical fastening positions.
• Grip material is tested to withstand a range of industrial chemicals commonly encountered in production and maintenance environments.
• Standard equipment includes operating instructions and service manual, suspension bail, and all torque springs required to meet the indicated torque range.

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Appliance manufacturing — fastening covers, panels, brackets, housings, and internal components where repeatable torque is required.
• Automotive interior and trim assembly — installing light hardware, clips, brackets, and panel fasteners with controlled rundown speed.
• Electronics and light industrial assembly — driving screws into enclosures, subassemblies, and fixture-held components at bench stations.
• Aerospace and transportation subassembly — controlled fastening on smaller assemblies where an inline approach helps maintain bit alignment.
• Repair benches and MRO work — removing and reinstalling machine screws, covers, guards, and light hardware during routine service.

FAQs:

• Q: What is the torque range of the Cleco 19BPA05Q?
  A: The listed tool torque range is 10-45 in-lbs / 1.1-5.1 Nm. With the standard spring, the listed range is 10-38 in-lbs / 1.1-4.3 Nm.
• Q: What does push-to-start mean on this screwdriver?
  A: Push-to-start means the tool begins running when the operator presses the bit into the fastener. This is useful for repetitive assembly because it eliminates a separate trigger motion.
• Q: Can this screwdriver remove tight or stuck fasteners?
  A: This tool can reverse fasteners within its operating range, but it is not an impact driver or breakaway tool. For seized screws or high breakaway torque, use a tool designed for removal work.
• Q: What type of screwdriver bits does it use?
  A: The 19BPA05Q uses a 1/4" hex quick change drive. Select compatible 1/4" hex bits that match the fastener recess and the torque level of the application.
• Q: When should I choose the 560 RPM model instead of a faster 19 Series screwdriver?
  A: A lower-speed model gives more control during rundown and is often preferred for higher-torque screws, sensitive assemblies, or work where fastener seating consistency is more important than maximum cycle speed.
