Ingersoll Rand W5330-K22 Cordless Socket Retainer Ring Anvil Impact Wrench Kit | 3/8" Drive Size | 180 (ft-lbs) Max Torque

Ingersoll Rand W5330-K22 IQV20 Series Cordless Right Angle Impact Wrench Kit is configured for technicians who need impact performance and ratchet-like reach in confined fastening locations. The kit centers on the 3/8" hog ring drive W5330 and supplies two BL2012 20V lithium-ion batteries, a charger, and case, providing a complete cordless package for automotive repair, general industrial work, and facility maintenance.

With the BL2012 battery specified for this kit, the W5330 delivers 180 ft-lbs (245 Nm) of maximum torque and a variable 0–1,900 RPM no-load speed. The Inline battery design keeps the battery aligned with the tool body for improved access, while reactionless impact torque, a variable-speed trigger, and a conveniently located forward/reverse switch provide control during fastening and removal.

Type: Cordless Right Angle Impact Wrench Kit | Series: IQV20 Series | Model: W5330-K22 | Voltage: 20V DC | Drive Size: 3/8" | Drive Type: Hog Ring | Battery: 2 BL2012 Li-Ion Batteries | Battery Capacity: 2.5 Ah | No-Load Speed: 0–1,900 RPM | Max Torque with BL2012: 180 ft-lbs (245 Nm) | Tool & Battery Weight: 4.55 lb (2.06 kg) | Length with Battery: 17.25" (439 mm) | Kit Includes: W5330 3/8" Impactool, Charger, 2 BL2012 Li-Ion Batteries & Case

Features:

• Right-angle Impactool configuration combines impact fastening performance with reach comparable to a ratchet.
• Inline battery design keeps the battery in line with the tool body, helping the wrench reach fasteners in restricted spaces.
• Reactionless impact torque delivers fastening power without the reaction associated with conventional ratcheting action.
• Variable-speed trigger provides control throughout the 0–1,900 RPM no-load speed range.
• Conveniently located forward/reverse switch gives the operator direct control when changing between fastening and removal.
• Ergonomic handle and comfort grip support controlled handling while maintaining the extended reach of the right-angle design.
• Steel-lined aluminum hammer case and tough nylon housing help protect the tool against repeated drops and exposure to shop fluids.

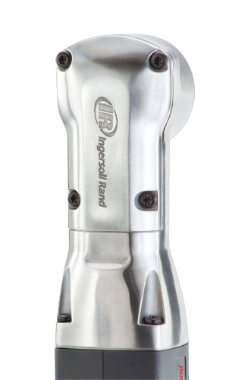

• Fully serviceable head provides improved accessibility to internal components when service is required.
• Two included BL2012 batteries allow one battery to be available as a replacement while the other is charging or in use.
• Included charger is compatible with the supplied IQV20 Series™ lithium-ion batteries.

Applications:

• General automotive repair involving fasteners located around crowded vehicle components.
• General industrial fastening and equipment service where cordless mobility is beneficial.
• Facility maintenance requiring portable fastening and removal capability in restricted work areas.
• Service tasks where a conventional impact wrench is difficult to position but greater fastening capability than a traditional ratchet is desired.

FAQs:

• Q: What is included with the Ingersoll Rand W5330-K22 kit?
  A: The manufacturer brochure specifies a W5330 3/8" Impactool, charger, two BL2012 lithium-ion batteries, and a case.
• Q: How much torque does the W5330-K22 provide with its included batteries?
  A: The W5330 is rated at 180 ft-lbs (245 Nm) of maximum torque when used with the BL2012 battery supplied in this kit.
• Q: Does the W5330-K22 include one or two batteries?
  A: The K22 configuration includes two BL2012 2.5 Ah lithium-ion batteries. The W5330-K12 configuration includes one BL2012 battery.
• Q: What drive configuration does the W5330 use?
  A: The W5330 uses a 3/8" hog ring drive. The related W5350 right-angle Impactool™ uses a 1/2" hog ring drive.
• Q: What is the speed range of the W5330?
  A: The IQV20 Series brochure specifies a variable 0–1,900 RPM no-load speed.
• Q: How much does the W5330 weigh with a BL2012 battery installed?
  A: The manufacturer lists the combined tool-and-battery weight at 4.55 lb (2.06 kg) with a BL2012 battery.

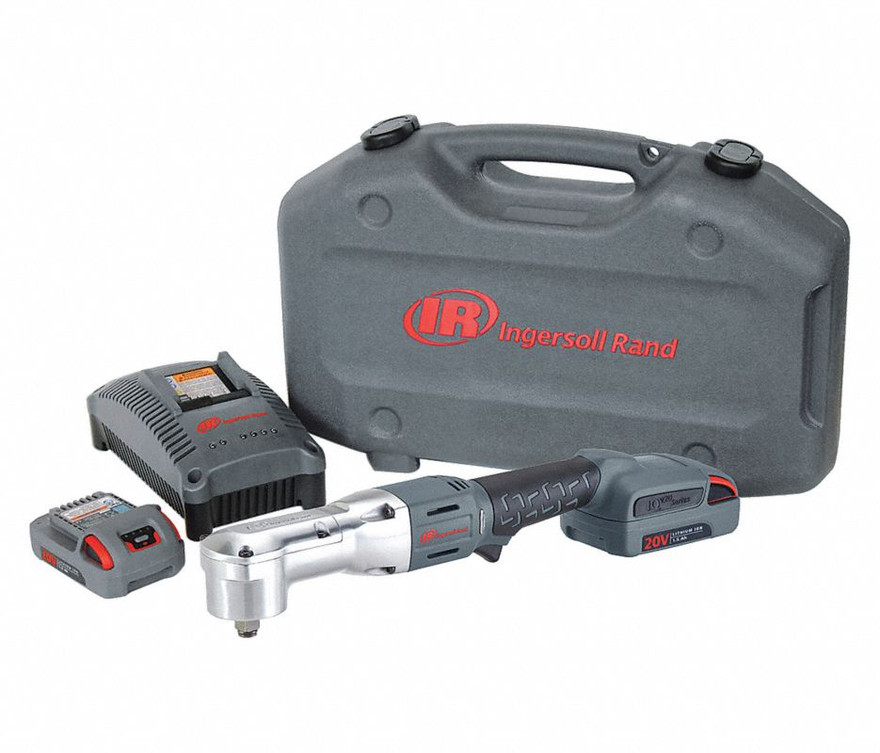

Kit includes: 3/8" Drive W5330 Impact Wrench, Charger, 2 BL2012 Li-ion Batteries & Case

Looking for more information about Ingersoll Rand IQv20 Series Cordless Tools? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Impact Wrenches Kit for your assembly application, call (800) 608-5210 or email info@intlairtool.com
