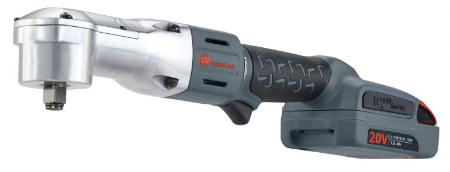

Ingersoll Rand W5330-K12 Cordless Socket Retainer Ring Anvil Impact Wrench Kit | 3/8" Drive Size | 180 (ft-lbs) Max Torque

Ingersoll Rand W5330-K12 IQV20 Series Cordless Right Angle Impact Wrench Kit combines a compact right-angle tool profile with a 3/8" drive for fastening and removal work in confined locations. Supplied with a BL2012 20V lithium-ion battery, charger, and case, this kit provides a ready-to-use cordless setup for automotive repair, industrial service, and facility maintenance applications.

With the included BL2012 battery, the W5330 delivers up to 180 ft-lbs (245 Nm) of torque and operates at up to 1,900 RPM no-load speed. Its Inline battery arrangement keeps the battery aligned with the tool body to improve access, while reactionless impact torque, a variable-speed trigger, and a conveniently positioned forward/reverse switch help the operator maintain control in restricted work areas.

Type: Cordless Right Angle Impact Wrench Kit | Series: IQV20 Series | Model: W5330-K12 | Voltage: 20V DC | Drive Size: 3/8" | Drive Type: Hog Ring | Battery: 1 BL2012 Li-Ion Battery | No-Load Speed: 0–1,900 RPM | Max Torque: 180 ft-lbs (245 Nm) | Tool & Battery Weight: 4.55 lb (2.06 kg) | Length with Battery: 17.25" (439 mm) | Kit Includes: W5330 3/8" Impact Wrench, Charger, 1 BL2012 Li-Ion Battery & Case

Features:

• Right-angle impact wrench design combines ratchet-like reach with cordless impact performance for fasteners in confined locations.
• Inline™ battery configuration positions the battery along the tool body to improve access around closely spaced components.
• Reactionless impact torque provides fastening power without the reaction associated with conventional ratcheting action.
• Variable-speed trigger provides control from zero to maximum no-load speed according to the fastening or removal task.
• Convenient forward/reverse switch allows rotation direction to be changed directly from the tool.
• Ergonomic handle and comfort grip provide the reach of a ratchet while supporting controlled handling.
• Steel-lined aluminum hammer case helps protect internal impact components during demanding service work.
• Tough nylon housing is designed to withstand repeated drops and exposure to common shop fluids.
• Fully serviceable head provides improved component accessibility when maintenance or service is required.
• Kit configuration supplies the impact wrench with one BL2012 lithium-ion battery, charger, and carrying case.

Applications:

• Automotive repair involving fasteners positioned around engines, suspension components, and other confined areas.
• Fleet and vehicle maintenance where cordless mobility and restricted-access fastening capability are beneficial.
• General industrial fastening and equipment service.
• Facility and MRO maintenance requiring a portable right-angle impact wrench.

FAQs:

• Q: What is included with the Ingersoll Rand W5330-K12 kit?
  A: The W5330-K12 kit includes the W5330 3/8" right-angle impact wrench, one BL2012 lithium-ion battery, a charger, and a case.
• Q: How much torque does the W5330-K12 provide?
  A: With the BL2012 battery specified for this kit, the source brochure rates the W5330 at a maximum torque of 180 ft-lbs (245 Nm).
• Q: What is the drive size of the W5330-K12?
  A: The W5330 uses a 3/8" drive with a hog ring retainer configuration.
• Q: What is the speed range of the W5330?
  A: The manufacturer brochure specifies a variable 0–1,900 RPM no-load speed.
• Q: How much does the W5330 weigh with the included BL2012 battery?
  A: The tool and BL2012 battery together are specified at 4.55 lb (2.06 kg). This is the combined operating weight rather than the bare-tool weight.
• Q: Why choose the W5330-K12 instead of the bare W5330?
  A: The W5330-K12 packages the 3/8" right-angle impact wrench with one BL2012 lithium-ion battery, charger, and case, while the bare-tool W5330 is supplied without those kit components.

Kit includes: 3/8" Drive W5330 Impact Wrench, Charger, 1 BL2012 Li-ion Battery & Case

Looking for more information about Ingersoll Rand IQv20 Series Cordless Tools? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Impact Wrenche Kit for your assembly application, call (800) 608-5210 or email info@intlairtool.com
