Ingersoll Rand W5350-K22 Cordless Socket Retainer Ring Anvil Impact Wrench Kit | 1/2" Drive Size | 180 (ft-lbs) Max Torque

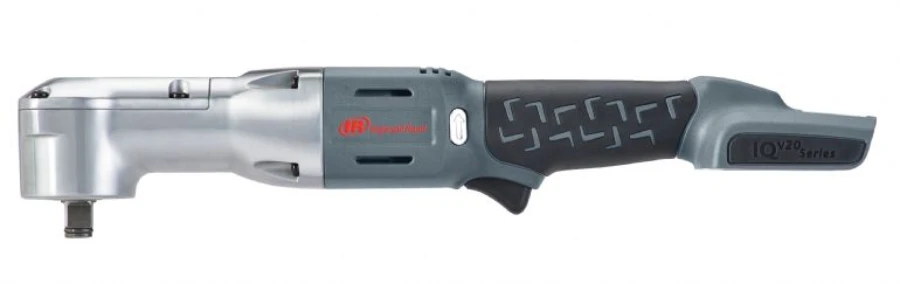

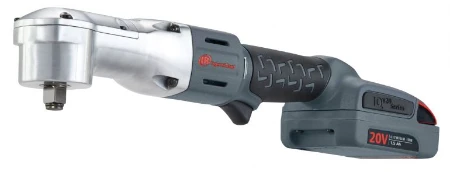

Ingersoll Rand W5350-K22 IQV20 Series Cordless Right Angle Impact Wrench Kit combines a 1/2" hog ring drive with a slim right-angle profile for fastening and removal work where access is limited. This kit packages the W5350 with two BL2012 20V lithium-ion batteries, a charger, and case, providing a complete cordless setup with a second battery available for extended work cycles.

With the BL2012 battery specified for the K22 kit, the W5350 delivers 180 ft-lbs (245 Nm) of maximum torque and operates across a variable 0–1,900 RPM no-load speed range. Its Inline™ battery configuration keeps the battery aligned with the tool body to improve reach around crowded components, while reactionless impact torque, variable-speed control, and forward/reverse operation support controlled fastening and removal.

Type: Cordless Right Angle Impact Wrench Kit | Series: IQV20 Series | Model: W5350-K22 | Voltage: 20V DC | Drive Size: 1/2" | Drive Type: Hog Ring | Battery: 2 BL2012 Li-Ion Batteries | Battery Capacity: 2.5 Ah | No-Load Speed: 0–1,900 RPM | Max Torque with BL2012: 180 ft-lbs (245 Nm) | Tool & Battery Weight: 4.55 lb (2.06 kg) | Length with Battery: 17.25" (439 mm) | Kit Includes: W5350 1/2" Impactool, Charger, 2 BL2012 Li-Ion Batteries & Case

Features:

• Right-angle Impactool configuration combines impact fastening capability with ratchet-like reach for restricted-access work.
• 1/2" hog ring drive provides the larger drive configuration within the W5330/W5350 right-angle Impactool family.
• Inline battery design positions the battery along the tool body to help reach fasteners in confined areas.
• Reactionless impact torque delivers fastening power without the reaction associated with conventional ratcheting action.
• Variable-speed trigger gives the operator control throughout the 0–1,900 RPM no-load speed range.
• Conveniently positioned forward/reverse switch allows quick changes between fastening and removal.
• Ergonomic handle and comfort grip support controlled operation when reaching around closely spaced components.
• Steel-lined aluminum hammer case helps protect the impact mechanism during demanding service work.
• Tough nylon housing is designed to withstand repeated drops and exposure to common shop fluids.
• Two included BL2012 batteries provide a second battery for swapping between charging and tool operation.

Applications:

• General automotive repair where a 1/2" drive is required and surrounding components limit fastener access.
• General industrial fastening and equipment maintenance requiring cordless mobility.
• Facility maintenance involving fasteners located in confined or difficult-to-reach areas.
• Service work where a right-angle profile and impact action are needed in the same cordless tool.

FAQs:

• Q: What is included with the Ingersoll Rand W5350-K22 kit?
  A: The manufacturer brochure specifies the W5350 1/2" Impactool, two BL2012 lithium-ion batteries, a charger, and a case.
• Q: How much torque does the W5350-K22 provide with the included batteries?
  A: With the BL2012 battery supplied in this kit, the W5350 is rated at 180 ft-lbs (245 Nm) of maximum torque.
• Q: Does the W5350-K22 include one or two batteries?
  A: The K22 configuration includes two BL2012 2.5 Ah lithium-ion batteries. The W5350-K12 configuration includes one BL2012 battery.
• Q: What drive size does the W5350-K22 use?
  A: The W5350 uses a 1/2" hog ring drive. The related W5330 uses a 3/8" drive.
• Q: What is the no-load speed of the W5350?
  A: Ingersoll Rand specifies a variable 0–1,900 RPM no-load speed.
• Q: How much does the W5350 weigh with a BL2012 battery installed?
  A: The manufacturer brochure lists a combined tool-and-battery weight of 4.55 lb (2.06 kg) with the BL2012 battery.

Kit includes: 1/2" Drive W5350 Impact Wrench, Charger, 2 BL2012 Li-ion Batteries & Case

Looking for more information about Ingersoll Rand IQv20 Series Cordless Tools? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Impact Wrenches for your assembly application, call (800) 608-5210 or email info@intlairtool.com
