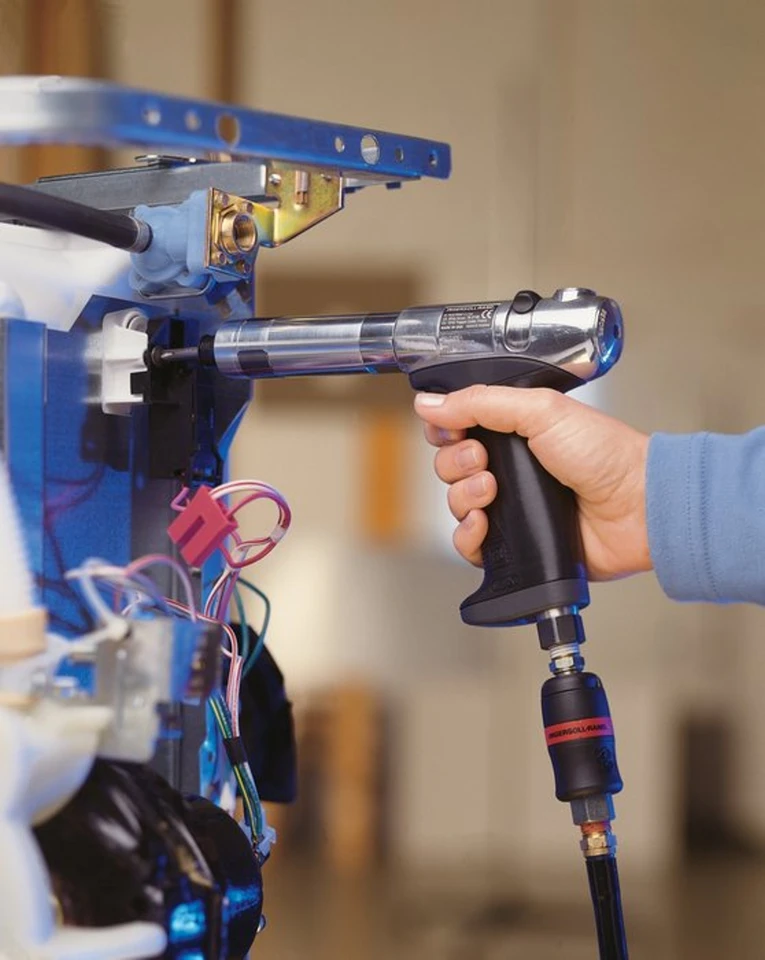

Built for precision fastening in assembly lines, production environments, and light industrial applications, the Ingersoll Rand QP1P20S1D Pneumatic Screwdriver delivers controlled fastening performance with a 3–22.1 in-lbs torque range and 2,000 RPM free speed. Featuring a push-to-start configuration, this air screwdriver activates when axial pressure is applied to the bit, helping operators maintain consistent workflow during repetitive fastening tasks. Its inline design provides direct access for applications requiring accurate screw installation, including electronics, appliances, and general manufacturing assembly.

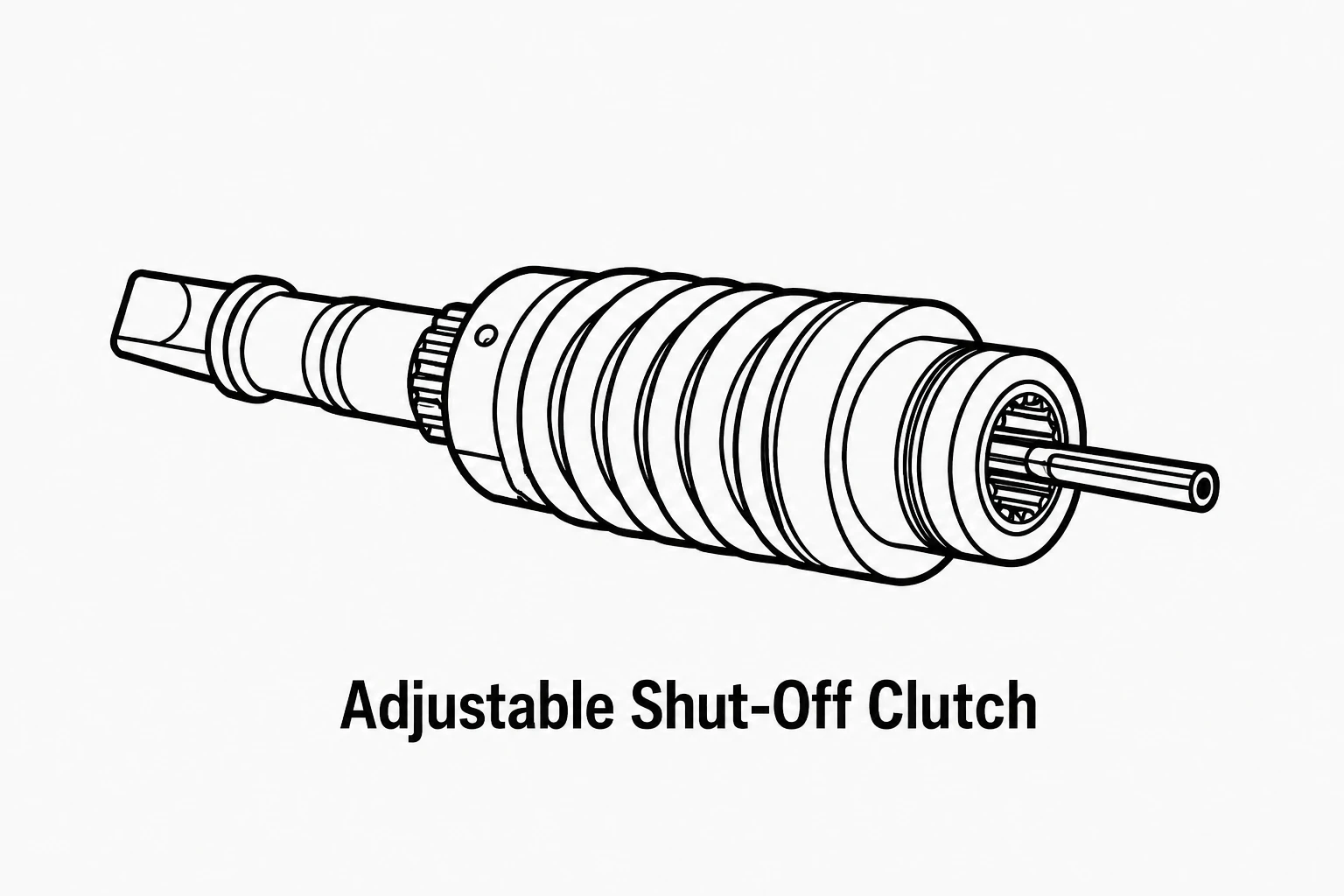

The QP1P20S1D is part of Ingersoll Rand’s precision assembly tool lineup and uses a positive clutch mechanism (a torque-controlled clutch system that helps disengage when the preset torque level is reached) to improve fastening repeatability. The compact inline body supports controlled handling in production environments where consistent torque application and operator efficiency are important.
Type: Pneumatic Screwdriver | Series: QP Series | Configuration: Inline | Actuation: Push-to-Start | Free Speed: 2,000 RPM | Torque Range: 3–22.1 in-lbs | Drive: 1/4" Hex | Air Inlet: 1/4" NPT
|
Feature:
|
|
Made in USA:
Applications:
- Electronics assembly requiring controlled screw fastening.
- Appliance manufacturing and light equipment assembly.
- Production workstations performing repetitive fastening operations.
- General industrial assembly requiring consistent low-torque installation.
- Maintenance and repair tasks involving small fasteners and threaded components.
FAQs:
- Q: What does push-to-start mean on a pneumatic screwdriver?
A: Push-to-start operation means the tool begins running when the operator applies forward pressure against the fastener, allowing quick activation without using a separate trigger. - Q: What type of applications is the QP1P20S1D designed for?
A: This model is intended for precision, low-torque fastening applications such as electronics, appliances, and light manufacturing assembly. - Q: What is the torque range of this screwdriver?
A: The QP1P20S1D provides an adjustable torque range of 3–22.1 in-lbs for controlled fastening of smaller screws and components. - Q: What size bits does this screwdriver use?
A: The tool uses a 1/4-inch hex drive compatible with standard screwdriver bits.
| SKU | in-lbs (Nm) | in-lbs (Nm) | in-lbs (Nm) | rpm | lbs (kg) | in (mm) | in (mm) | in | cfm (L/Min) |
|---|---|---|---|---|---|---|---|---|---|
| PUSH-TO-START | |||||||||
| QP1P20S1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | – | 2,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1P10S1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 27.3 (0.9 – 3.1) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1P10S1TD | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 27.3 (0.9 – 3.1) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Screwdrivers for your application, please call (800) 608-5210 or email info@intlairtool.com
