Built for precision assembly, production fastening, and light industrial applications, the Ingersoll Rand QP1P10S1TD Pistol Grip Air Screwdriver provides controlled fastening performance with a 2.7–39.8 in-lbs torque range and 1,000 RPM free speed. Featuring an adjustable shut-off clutch (a torque-control mechanism that automatically disengages the tool when the preset torque value is reached), this pneumatic screwdriver helps improve fastening repeatability while reducing the risk of over-tightening during repetitive assembly operations.
The QP1P10S1TD combines a pistol grip configuration with trigger start operation for familiar handling and direct control during screw installation. Its shut-off clutch design allows operators to adjust torque output to match specific assembly requirements, making it suitable for applications where consistent fastening accuracy is more important than high-speed material removal or high-torque output.
Type: Pneumatic Screwdriver | Series: QP Series | Configuration: Pistol Grip | Actuation: Trigger Start | Clutch Type: Adjustable Shut-Off Clutch | Free Speed: 1,000 RPM | Torque Range: 2.7–39.8 in-lbs | Drive: 1/4" Hex
|
Feature:
|
|
Made in USA:
Applications:
- Electronics assembly requiring repeatable low-torque fastening.
- Appliance and light equipment manufacturing applications.
- Production workstations performing repetitive screw installation.
- General industrial assembly involving small threaded fasteners.
- Maintenance and repair operations requiring controlled torque output.
FAQs:
- Q: What does an adjustable shut-off clutch do?
A: The adjustable shut-off clutch stops the screwdriver after reaching the selected torque setting, helping maintain consistent fastening results and reducing the chance of over-tightening. - Q: What is the difference between a shut-off clutch and a standard clutch?
A: A shut-off clutch automatically stops the tool at the preset torque level, while other clutch types may continue operating after reaching the set torque depending on their design. - Q: What torque range does the QP1P10S1TD provide?
A: This model provides an adjustable torque range of 2.7–39.8 in-lbs for precision fastening applications. - Q: What size bits are compatible with this screwdriver?
A: The QP1P10S1TD uses a 1/4-inch hex drive compatible with standard screwdriver bits.

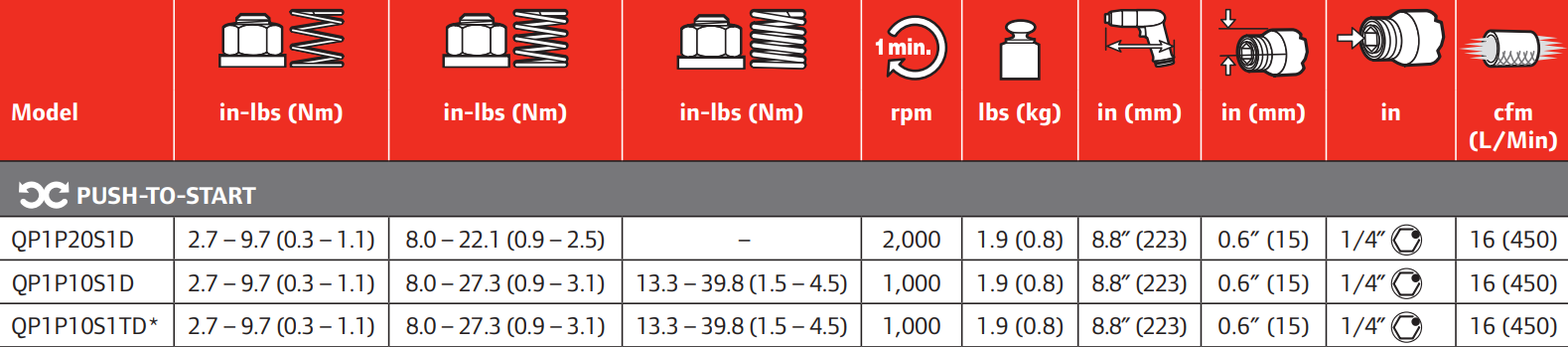

| SKU | Torque Range | Torque Range | Torque Range | Free Speed | Weight | Length | Side to Center | Air Inlet | Air Consumption |
|---|---|---|---|---|---|---|---|---|---|
| in-lbs (Nm) | in-lbs (Nm) | in-lbs (Nm) | rpm | lbs (kg) | in (mm) | in (mm) | in | cfm (L/min) | |
| Push-To-Start | |||||||||
| QP1P20S1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | – | 2,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1P10S1D | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 27.3 (0.9 – 3.1) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
| QP1P10S1TD* | 2.7 – 9.7 (0.3 – 1.1) | 8.0 – 27.3 (0.9 – 3.1) | 13.3 – 39.8 (1.5 – 4.5) | 1,000 | 1.9 (0.8) | 8.8" (223) | 0.6" (15) | 1/4" | 16 (450) |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Screwdrivers for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Screwdriver
- Actuation
- Push to Start
- Torque Range (in-lbs)
- 2.7 - 39.8
- RPM
- 1000
- Side to Center (in.)
- 0.6
- Drive Type
- Hex Quick Change
- Drive Size (in.)
- 1/4
- Sound Level (dbA)
- 75
- Air Inlet
- 1/4" NPT
- Length (in.)
- 8.8
- Min Hose Size (in.)
- 1/4
