Designed for precision fastening in fixtured assembly operations, the Ingersoll Rand QA6ASRD055NF41S08 Inline Air Nutrunner delivers a 40.6 ft-lb (55 Nm) recommended torque, 315 RPM free speed, and a 1/2 in. square drive. Featuring Remote Start and a stall clutch, this inline pneumatic nutrunner is engineered for pressure-controlled fastening applications requiring consistent torque output and repeatable assembly performance.
Built as part of the QA6 Series, this tool combines a compact inline profile with a lube-free motor to reduce maintenance while simplifying integration into automated and fixtured assembly systems. Torque is regulated through air pressure, making it well suited for non-critical and pressure-controlled production applications.
Type: Inline Air Nutrunner | Series: QA6 Series | Model: QA6ASRD055NF41S08 | SKU: QA6ASRD055NF41S08 | Drive Size: 1/2 in. Square | Start Type: Remote Start | Clutch Type: Stall | Recommended Torque (90 PSI): 40.6 ft-lb (55 Nm) | Torque @ 77 PSI: 35.4 ft-lb (48 Nm) | Maximum Torque: 47.2 ft-lb (64 Nm) | Free Speed: 315 RPM | Weight: 4.19 lb (1.90 kg) | Length: 15.7 in. (399 mm) | Housing Diameter: 1.34 in. (34 mm) | Air Inlet: 3/8 in. NPT | Minimum Hose I.D.: 3/8 in. | Air Consumption: 37 CFM (1048 L/min) | Sound Level: 85 dBA
|
Features:
Made in USA: |
 |
Applications:
- Automotive assembly operations.
- Industrial manufacturing lines.
- Electronics and appliance assembly.
- Fixtured fastening systems.
- Pressure-controlled production applications.
- General manufacturing and mechanical assembly.
FAQs:
- Q: What is the recommended torque output?
A: This model provides a recommended torque of 40.6 ft-lb (55 Nm) at 90 PSI. - Q: What clutch type does this tool use?
A: It utilizes a stall clutch with torque controlled through air pressure. - Q: What drive size is provided?
A: This model features a 1/2 in. square drive. - Q: Is this tool intended for automated assembly systems?
A: Yes. The Remote Start configuration is designed for fixtured and automated production applications. - Q: Does the motor require lubrication?
A: No. The QA6 Series features a lube-free motor that helps reduce maintenance.

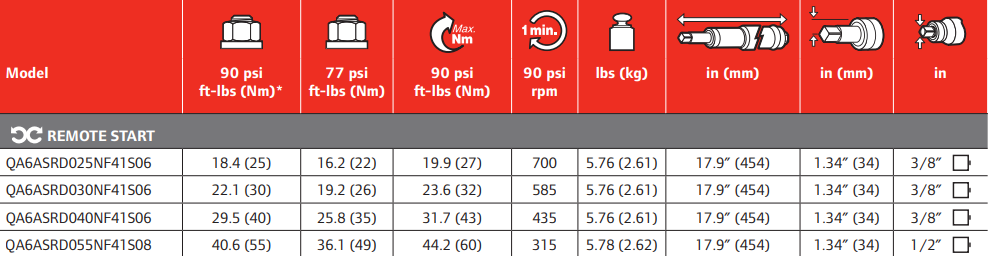

| SKU | ||||||||
|---|---|---|---|---|---|---|---|---|
| 90 PSI FT-LBS (NM)* |
77 PSI FT-LBS (NM) |
90 PSI FT-LBS (NM) |
90 PSI RPM |
LBS (KG) | IN (MM) | IN (MM) | IN | |
| REMOTE START | ||||||||
| QA6ASRD025NF41S06 | 18.4 (25) | 16.2 (22) | 19.9 (27) | 700 | 5.76 (2.61) | 17.9" (454) | 1.34" (34) | 3/8" |
| QA6ASRD030NF41S06 | 22.1 (30) | 19.2 (26) | 23.6 (32) | 585 | 5.76 (2.61) | 17.9" (454) | 1.34" (34) | 3/8" |
| QA6ASRD040NF41S06 | 29.5 (40) | 25.8 (35) | 31.7 (43) | 435 | 5.76 (2.61) | 17.9" (454) | 1.34" (34) | 3/8" |
| QA6ASRD055NF41S08 | 40.6 (55) | 36.1 (49) | 44.2 (60) | 315 | 5.78 (2.62) | 17.9" (454) | 1.34" (34) | 1/2" |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
