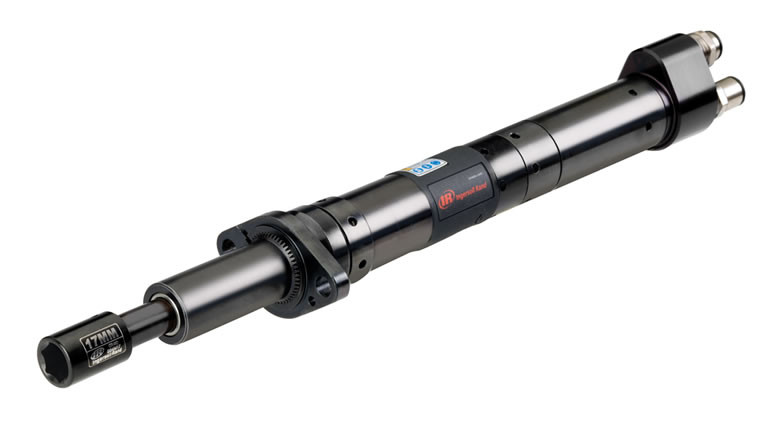

Ingersoll Rand QA6ASRD030NF41S06 Inline Air Nutrunner | 3/8" Drive Size | 22.1 (ft-lbs) Torque | 585 RPM | Remote Start

Designed for precision fastening in fixtured assembly operations, the Ingersoll Rand QA6ASRD030NF41S06 Inline Air Nutrunner delivers a 22.1 ft-lb (30 Nm) recommended torque, 585 RPM free speed, and a 3/8 in. square drive. Featuring Remote Start and a stall clutch, this inline pneumatic nutrunner is engineered for pressure-controlled fastening applications requiring consistent torque output and repeatable assembly performance.

Built as part of the QA6 Series, this tool combines a compact inline profile with a lube-free motor to reduce maintenance while simplifying integration into automated and fixtured assembly systems. Torque is regulated through air pressure, making it well suited for non-critical and pressure-controlled production applications.

Type: Inline Air Nutrunner | Series: QA6 Series | Model: QA6ASRD030NF41S06 | SKU: QA6ASRD030NF41S06 | Drive Size: 3/8 in. Square | Start Type: Remote Start | Clutch Type: Stall | Recommended Torque (90 PSI): 22.1 ft-lb (30 Nm) | Torque @ 77 PSI: 19.2 ft-lb (26 Nm) | Maximum Torque: 25.8 ft-lb (35 Nm) | Free Speed: 585 RPM | Weight: 4.19 lb (1.90 kg) | Length: 15.7 in. (399 mm) | Housing Diameter: 1.34 in. (34 mm) | Air Inlet: 3/8 in. NPT | Minimum Hose I.D.: 3/8 in. | Air Consumption: 37 CFM (1048 L/min) | Sound Level: 85 dBA

Features: Compact inline configuration provides excellent accessibility in fixtured assembly applications. Remote Start allows seamless integration into automated production systems. Stall clutch delivers repeatable torque through air pressure regulation. Lube-free motor helps minimize routine maintenance. 585 RPM free speed balances fastening speed and torque control. 3/8 in. square drive accepts standard production sockets. Suitable for pressure-controlled and non-critical fastening applications. Lightweight inline design simplifies fixture installation. Built for continuous industrial production environments. Compatible with optional mounting flanges and piped-away exhaust accessories. Made in USA:

Applications:

• Automotive assembly operations.
• Industrial manufacturing lines.
• Electronics and appliance assembly.
• Fixtured fastening systems.
• Pressure-controlled production applications.
• General manufacturing and mechanical assembly.

FAQs:

• Q: What is the recommended torque output?
  A: This model provides a recommended torque of 22.1 ft-lb (30 Nm) at 90 PSI.
• Q: What clutch type does this tool use?
  A: It utilizes a stall clutch with torque controlled through air pressure.
• Q: What drive size is provided?
  A: This model features a 3/8 in. square drive.
• Q: Is this tool intended for automated assembly systems?
  A: Yes. The Remote Start configuration is designed for fixtured and automated production applications.
• Q: Does the motor require lubrication?
  A: No. The QA6 Series features a lube-free motor that helps reduce maintenance.

Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
