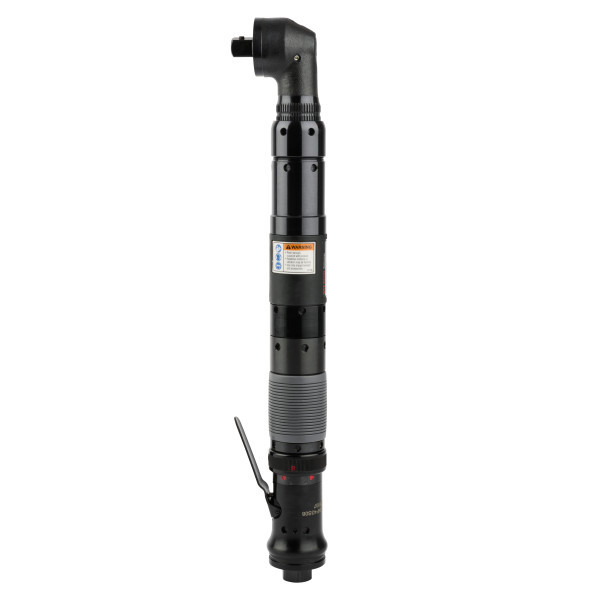

Ingersoll Rand QA4AALS020NP28S06 Angle Air Nutrunner is a pneumatic fastening tool designed for assembly operations where controlled torque and angled access to the fastener are required. Featuring a 3/8" drive, 7.4–14.8 ft-lbs torque range, and 625 RPM operating speed, this model supports repetitive fastening tasks that require a balance of torque capability and efficient fastener rundown.
Ingersoll Rand QA4AALS020NP28S06 uses an angle-head configuration to help position the tool around adjacent components and other access restrictions. Its 3/8" square drive accepts compatible sockets, while the defined torque range helps buyers match the tool to fastening applications that fall within its rated capability.
Type: Angle Air Nutrunner | Drive Size: 3/8" | Torque Range: 7.4–14.8 ft-lbs | Speed: 625 RPM | Series: QA4A Series
|
Features:
Made in USA: |
 |
Applications:
- Repetitive assembly operations requiring torque within the 7.4–14.8 ft-lbs range.
- Production workstations where angled tool access is useful for reaching fasteners around adjacent parts.
- Fastening of machinery components, brackets, fabricated assemblies, and similar components using compatible 3/8" drive sockets.
- Compressed-air assembly processes where a 625 RPM operating speed aligns with the required fastening cycle.
FAQs:
- Q: What torque range does the QA4AALS020NP28S06 provide?
A: This model has a specified torque range of 7.4–14.8 ft-lbs. - Q: What drive size does this angle air nutrunner use?
A: It is equipped with a 3/8" square drive for compatible sockets. - Q: What is the benefit of an angle-head configuration?
A: An angle head can provide more practical tool positioning when surrounding components restrict direct access to the fastener. - Q: What is the operating speed of this model?
A: The QA4AALS020NP28S06 is rated at 625 RPM. - Q: How do I determine whether this nutrunner is suitable for my application?
A: Confirm that the required fastening torque falls within the 7.4–14.8 ft-lbs range and that the 3/8" drive size and angle configuration meet the socket and access requirements of the assembly.
| SKU | 90 psi ft-lbs (Nm) | 90 psi rpm | 77 psi ft-lbs (Nm) | 77 psi rpm | lbs (kg) | in (mm) | in (mm) | in (mm) | in |
|---|---|---|---|---|---|---|---|---|---|
| Lever Start | |||||||||
| QA4AALS011NP25S06 | 3.7 – 8.5 (5.0 – 11) | 1,025 | 3.7 – 7.2 (5.0 – 9.7) | 953 | 3.17 (1.44) | 13.5” (342) | 0.50” (13) | 1.28” (33) | 3/8” |
| QA4AALS015NP25S06 | 5.2 – 11.1 (7.0 – 15) | 800 | 5.2 – 9.4 (7.0 – 12.7) | 744 | 3.17 (1.44) | 13.5” (342) | 0.50” (13) | 1.28” (33) | 3/8” |
| QA4AALS020NP25S06 | 7.4 – 14.8 (10 – 20) | 625 | 7.4 – 12.5 (10 – 17) | 581 | 3.17 (1.44) | 13.5” (342) | 0.50” (13) | 1.28” (33) | 3/8” |
| QA4AALS020NP28S06 | 7.4 – 14.8 (10 – 20) | 625 | 7.4 – 12.5 (10 – 17) | 581 | 3.35 (1.52) | 14.3” (363) | 0.55” (14) | 1.39” (35) | 3/8” |
| QA4AALS030NP28S06 | 11.1 – 22.1 (15 – 30) | 425 | 11.1 – 18.8 (15 – 25.5) | 395 | 3.6 (1.6) | 14.3” (363) | 0.55” (14) | 1.39” (35) | 3/8” |
| QA4AALS040NP35S06 | 14.8 – 29.5 (20 – 40) | 325 | 14.8 – 25.1 (20 – 34) | 302 | 3.98 (1.81) | 15.6” (395) | 0.69” (18) | 1.71” (44) | 3/8” |
| QA4AALS040NP35S08 | 14.8 – 29.5 (20 – 40) | 325 | 14.8 – 25.1 (20 – 34) | 302 | 4.00 (2.04) | 15.6” (418) | 0.69” (18) | 1.71” (44) | 1/2” |
| QA4AALS055NP35S08 | 18.4 – 40.6 (25 – 55) | 200 | 18.4 – 33.6 (25 – 45.5) | 186 | 4.50 (2.04) | 16.4” (418) | 0.69” (18) | 1.71” (44) | 1/2” |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Angle Air Nutrunner
- Actuation
- Lever Start
- Torque Range (nm)
- 10 - 20
- Torque Range (ft-lbs)
- 7.4 - 14.8
- RPM
- 625
- Length (in.)
- 14.3
- Angle Head Side to Center (in.)
- 0.55
- Spindle Type
- Square
- Spindle Size (in.)
- 3/8
- Common Fastener Size
- M6 - M8
- Air Inlet
- 1/4" NPT
- Air Consumption (CFM)
- 27
- Angle Head Height (in.)
- 1.39
- Clutch Type
- Adjustable Shut-Off Clutch
- Series
- QA4
