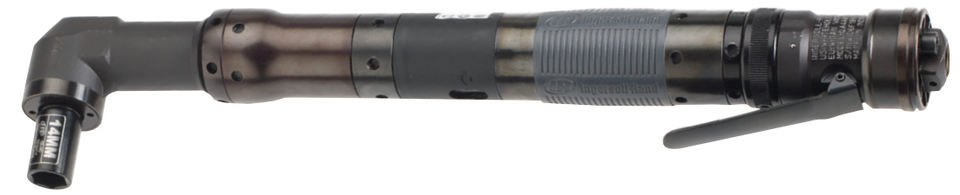

Ingersoll Rand QA4AALS015NP25S06 Angle Air Nutrunner is a pneumatic fastening tool configured for assembly operations that require controlled torque and practical access to fasteners positioned around surrounding components. With a 3/8" drive, 5.2–11.1 ft-lbs torque range, and 800 RPM operating speed, this model provides a balance of fastening control and rundown speed for repetitive production applications.
Ingersoll Rand QA4AALS015NP25S06 uses an angle-head configuration to help operators engage fasteners where straight-line tool access may be limited. Its 3/8" square drive accepts compatible sockets, while the specified torque range makes it suitable for fastening requirements that fall within its rated 5.2–11.1 ft-lbs capability.
Type: Angle Air Nutrunner | Drive Size: 3/8" | Torque Range: 5.2–11.1 ft-lbs | Speed: 800 RPM | Series: QA4A Series
|
Features:
Made in USA: |
 |
Applications:
- Production assembly operations requiring fastening within the 5.2–11.1 ft-lbs torque range.
- Workstations where an angle-head tool provides improved access around adjacent components or obstructions.
- Repetitive fastening of machinery components, fabricated assemblies, brackets, and similar parts using compatible 3/8" drive sockets.
- Compressed-air-powered assembly processes where an 800 RPM operating speed matches the required fastening cycle.
FAQs:
- Q: What torque range does the QA4AALS015NP25S06 provide?
A: This model has a specified torque range of 5.2–11.1 ft-lbs. - Q: What drive size does this angle air nutrunner use?
A: It is equipped with a 3/8" square drive for use with compatible sockets. - Q: What is the advantage of the angle-head configuration?
A: The angle configuration can make it easier to position the tool on fasteners when surrounding parts limit direct straight-line access. - Q: How fast does this model operate?
A: The QA4AALS015NP25S06 has a rated operating speed of 800 RPM. - Q: How do I determine whether this model fits my fastening application?
A: Confirm that the required torque falls within the 5.2–11.1 ft-lbs range and that the 3/8" drive size and angle configuration match the socket and access requirements of the assembly.
FAQs:
- Q: What is the torque range of the QA4AALS011NP25S06?
A: This model has a specified torque range of 3.7–8.5 ft-lbs. - Q: What size drive does this angle nutrunner use?
A: It uses a 3/8" square drive for compatible sockets. - Q: Why choose an angle nutrunner instead of an inline configuration?
A: An angle-head configuration can provide easier access when the fastener location or surrounding components make straight-line tool positioning difficult. - Q: What is the operating speed of this model?
A: The QA4AALS011NP25S06 is rated at 1025 RPM. - Q: How should I confirm that this model is appropriate for my assembly?
A: Verify that the required fastening torque falls within the 3.7–8.5 ft-lbs range and that the 3/8" drive and angle-head configuration match the socket and access requirements of the application.
| SKU | 90 psi ft-lbs (Nm) | 90 psi rpm | 77 psi ft-lbs (Nm) | 77 psi rpm | lbs (kg) | in (mm) | in (mm) | in (mm) | in |
|---|---|---|---|---|---|---|---|---|---|
| Lever Start | |||||||||
| QA4AALS011NP25S06 | 3.7 – 8.5 (5.0 – 11) | 1,025 | 3.7 – 7.2 (5.0 – 9.7) | 953 | 3.17 (1.44) | 13.5” (342) | 0.50” (13) | 1.28” (33) | 3/8” |
| QA4AALS015NP25S06 | 5.2 – 11.1 (7.0 – 15) | 800 | 5.2 – 9.4 (7.0 – 12.7) | 744 | 3.17 (1.44) | 13.5” (342) | 0.50” (13) | 1.28” (33) | 3/8” |
| QA4AALS020NP25S06 | 7.4 – 14.8 (10 – 20) | 625 | 7.4 – 12.5 (10 – 17) | 581 | 3.17 (1.44) | 13.5” (342) | 0.50” (13) | 1.28” (33) | 3/8” |
| QA4AALS020NP28S06 | 7.4 – 14.8 (10 – 20) | 625 | 7.4 – 12.5 (10 – 17) | 581 | 3.35 (1.52) | 14.3” (363) | 0.55” (14) | 1.39” (35) | 3/8” |
| QA4AALS030NP28S06 | 11.1 – 22.1 (15 – 30) | 425 | 11.1 – 18.8 (15 – 25.5) | 395 | 3.6 (1.6) | 14.3” (363) | 0.55” (14) | 1.39” (35) | 3/8” |
| QA4AALS040NP35S06 | 14.8 – 29.5 (20 – 40) | 325 | 14.8 – 25.1 (20 – 34) | 302 | 3.98 (1.81) | 15.6” (395) | 0.69” (18) | 1.71” (44) | 3/8” |
| QA4AALS040NP35S08 | 14.8 – 29.5 (20 – 40) | 325 | 14.8 – 25.1 (20 – 34) | 302 | 4.00 (2.04) | 15.6” (418) | 0.69” (18) | 1.71” (44) | 1/2” |
| QA4AALS055NP35S08 | 18.4 – 40.6 (25 – 55) | 200 | 18.4 – 33.6 (25 – 45.5) | 186 | 4.50 (2.04) | 16.4” (418) | 0.69” (18) | 1.71” (44) | 1/2” |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
