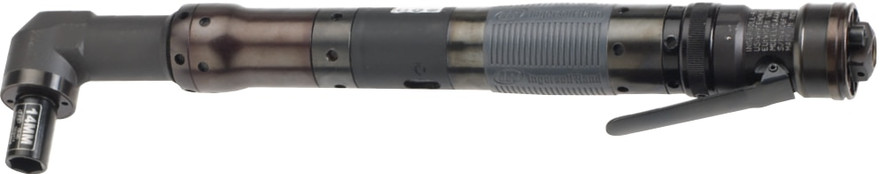

Ingersoll Rand QA4AALD055NP35S08 Angle Air Nutrunner is a high-torque pneumatic fastening tool engineered for demanding assembly applications in industrial and manufacturing settings. Featuring a 1/2" drive size, 40 ft-lbs torque, and a 200 RPM operating speed, this lever-start angle nutrunner delivers precise, repeatable fastening performance for large or heavy-duty assembly tasks.
Ingersoll Rand QA4AALD055NP35S08 lever-start design provides immediate tool activation with controlled torque delivery. Its 1/2" drive ensures compatibility with standard sockets and heavy-duty fastening accessories, while pneumatic operation offers reliable power for assembly applications requiring consistent high torque.
Type: Angle Air Nutrunner | Drive Size: 1/2" | Torque: 40 ft-lbs | Speed: 200 RPM | Start Type: Lever Start | Series: QA4A Series
|
Features:
Made in USA: |
 |
Applications:
- Industrial assembly requiring controlled high torque on 1/2" fasteners.
- Manufacturing — fastening machinery components, heavy brackets, or metal assemblies.
- Confined space assembly — angled design provides better access than straight nutrunners.
- Production line maintenance — repetitive fastening tasks with consistent torque output.
- Metal fabrication — assembly of large components where accurate torque is critical for safety and performance.
FAQs:
- Q: What is the benefit of the lever-start design?
A: Lever-start allows instant activation while maintaining precise control over torque application. - Q: What fasteners are compatible with this tool?
A: The 1/2" drive accommodates standard sockets and heavy-duty fastening accessories. - Q: Can this nutrunner be used in tight spaces?
A: Yes, the angled configuration allows operation in confined or hard-to-reach areas. - Q: How can I ensure consistent torque application?
A: Verify calibration and use torque-compatible accessories. The lever-start design helps maintain precise torque delivery. - Q: Is this tool suitable for high-volume production?
A: Yes, the 200 RPM pneumatic operation provides reliable performance for repetitive industrial assembly tasks.
| SKU | 90 PSI FT-LBS (NM)* | 90 PSI RPM | 77 PSI FT-LBS (NM) | 77 PSI RPM | LBS (KG) | IN (MM) | IN (MM) | IN (MM) | IN |
|---|---|---|---|---|---|---|---|---|---|
| LEVER START | |||||||||
| QA4AALD011NP25S06 | 8 (11) | 9.6 (10) | 7 (10) | 1,025 | 2.47 (1.12) | 11.1” (342) | 1.28” (33) | 0.50” (13) | 3/8” |
| QA4AALD015NP25S06 | 11 (15) | 11.8 (20) | 9 (13) | 800 | 2.47 (1.12) | 11.1” (342) | 1.28” (33) | 0.50” (13) | 3/8” |
| QA4AALD020NP25S06 | 15 (20) | 15.5 (20) | 13 (17) | 625 | 2.47 (1.12) | 11.1” (342) | 1.28” (33) | 0.50” (13) | 3/8” |
| QA4AALD030NP28S06 | 22 (30) | 22.9 (30) | 19 (26) | 425 | 2.63 (1.20) | 11.1” (363) | 1.39” (35) | 0.55” (14) | 3/8” |
| QA4AALD040NP35S06 | 30 (40) | 30.2 (40) | 25 (34) | 325 | 3.25 (1.48) | 13.2” (363) | 1.71” (44) | 0.69” (18) | 3/8” |
| QA4AALD055NP35S08 | 40 (55) | 42.8 (60) | 34 (46) | 200 | 3.88 (1.76) | 14.1” (395) | 1.71” (44) | 0.69” (18) | 1/2” |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Nutrunner
- Actuation
- Lever Start
- Torque (Nm)
- 55
- Torque (ft-lbs)
- 40
- RPM
- 200
- Angle Head Side to Center (mm)
- 18
- Angle Head Side to Center (in.)
- 0.69
- Drive Type
- Square Drive
- Sound Level (dbA)
- 79.3
- Air Inlet
- 1/4" NPT
- Air Consumption (CFM)
- 27
- Drive Size (in.)
- 1/2
- Length (in.)
- 14.1
- Side to Center (in.)
- 1.71
