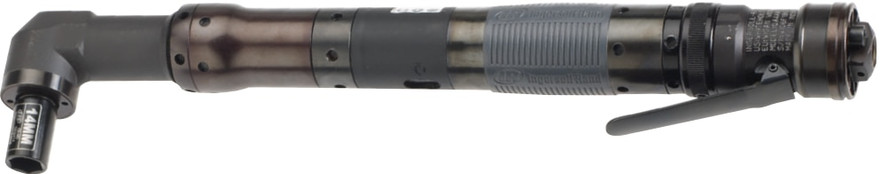

Ingersoll Rand QA4AALD020NP25S06 Angle Air Nutrunner is a pneumatic fastening tool engineered for precise torque applications in assembly and manufacturing settings. Featuring a 3/8" drive size, 15 ft-lbs torque, and a 625 RPM operating speed, this lever-start angle nutrunner provides controlled, repeatable fastening performance for industrial assembly tasks.
Ingersoll Rand QA4AALD020NP25S06 lever-start design allows immediate tool activation and accurate torque application. Its 3/8" drive ensures compatibility with standard sockets and fastening accessories, while the pneumatic operation provides consistent power for assembly operations requiring precise torque control.
Type: Angle Air Nutrunner | Drive Size: 3/8" | Torque: 15 ft-lbs | Speed: 625 RPM | Start Type: Lever Start | Series: QA4A Series
|
Features:
Made in USA: |
 |
Applications:
- Assembly line operations requiring precise torque control on 3/8" fasteners.
- Industrial manufacturing — fastening machinery components, brackets, or metal assemblies.
- Confined space assembly — angle configuration provides better access than straight nutrunners.
- Production maintenance — repetitive fastening tasks requiring consistent torque output.
- Metal fabrication — assembly of components where accurate torque is critical for safety and function.
FAQs:
- Q: What is the purpose of the lever-start mechanism?
A: Lever-start allows the operator to activate the tool instantly while maintaining precise control over torque application. - Q: What types of fasteners can this tool drive?
A: The 3/8" drive size is compatible with standard 3/8" sockets and fastening accessories. - Q: Is this tool suitable for high-speed production lines?
A: Yes, the 625 RPM speed and pneumatic operation allow consistent performance for repetitive industrial assembly tasks. - Q: Can this nutrunner be used in confined spaces?
A: Yes, the angled configuration provides access to tight or hard-to-reach locations. - Q: How do I ensure accurate torque application?
A: Always verify calibration and use torque-compatible accessories. The lever-start mechanism supports precise torque delivery during operation.
| SKU | 90 PSI FT-LBS (NM)* | 90 PSI RPM | 77 PSI FT-LBS (NM) | 77 PSI RPM | LBS (KG) | IN (MM) | IN (MM) | IN (MM) | IN |
|---|---|---|---|---|---|---|---|---|---|
| LEVER START | |||||||||
| QA4AALD011NP25S06 | 8 (11) | 9.6 (10) | 7 (10) | 1,025 | 2.47 (1.12) | 11.1” (342) | 1.28” (33) | 0.50” (13) | 3/8” |
| QA4AALD015NP25S06 | 11 (15) | 11.8 (20) | 9 (13) | 800 | 2.47 (1.12) | 11.1” (342) | 1.28” (33) | 0.50” (13) | 3/8” |
| QA4AALD020NP25S06 | 15 (20) | 15.5 (20) | 13 (17) | 625 | 2.47 (1.12) | 11.1” (342) | 1.28” (33) | 0.50” (13) | 3/8” |
| QA4AALD030NP28S06 | 22 (30) | 22.9 (30) | 19 (26) | 425 | 2.63 (1.20) | 11.1” (363) | 1.39” (35) | 0.55” (14) | 3/8” |
| QA4AALD040NP35S06 | 30 (40) | 30.2 (40) | 25 (34) | 325 | 3.25 (1.48) | 13.2” (363) | 1.71” (44) | 0.69” (18) | 3/8” |
| QA4AALD055NP35S08 | 40 (55) | 42.8 (60) | 34 (46) | 200 | 3.88 (1.76) | 14.1” (395) | 1.71” (44) | 0.69” (18) | 1/2” |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Stall
- Actuation
- Lever Start
- Torque (Nm)
- 20
- Torque (ft-lbs)
- 15
- RPM
- 625
- Angle Head Side to Center (mm)
- 13
- Angle Head Side to Center (in.)
- 0.5
- Drive Type
- Square Drive
- Sound Level (dbA)
- 79.3
- Air Inlet
- 1/4" NPT
- Air Consumption (CFM)
- 27
- Length (in.)
- 11.1
- Side to Center (in.)
- 1.28
- Drive Size (in.)
- 3/8
