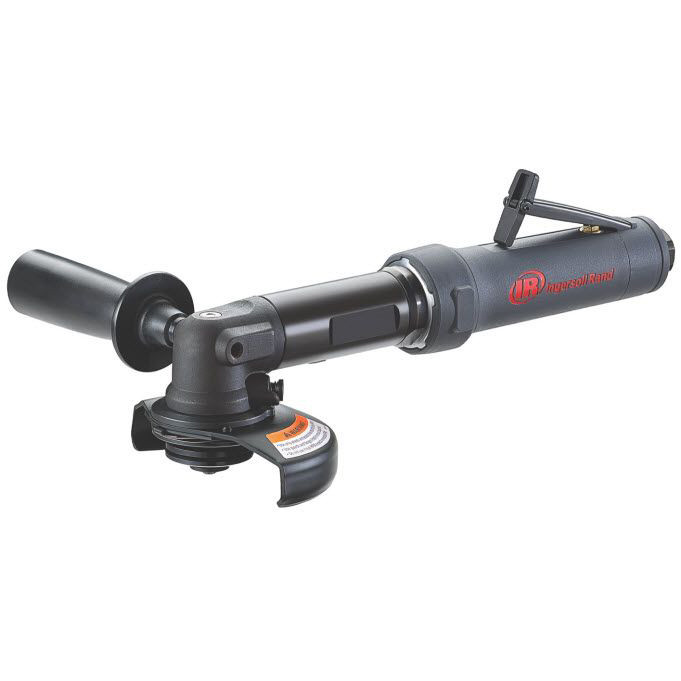

Ingersoll Rand M2L135RP64 Extended Angle Grinder | 1 HP | 13,500 RPM | 3/8" - 24 Thread | Rear Exhaust

Designed for demanding industrial grinding, cutting, and surface preparation applications, the Ingersoll Rand M2L135RP64 M2 Series Extended Angle Grinder combines a 1 HP motor with a 13,500 RPM rated speed and a 3/8"-24 spindle thread. Its extended-angle configuration provides additional reach for accessing areas around machinery, frames, and other assemblies where a conventional grinder may be difficult to position. The model is configured for a 4" x 1/4" Type 27 wheel for compatible grinding and material-removal applications.

The M2L135RP64 features a rear exhaust, lube-free 1 HP motor, speed-governed operation, and steel housing. Ingersoll Rand's M2 Series design also incorporates a spindle lock for faster accessory changes and a multi-positional guard that can be adjusted without tools. The extended body helps provide greater access while the angled configuration supports grinding work on difficult-to-reach surfaces.

Type: Pneumatic Extended Angle Grinder | Series: M2 Series | Model: M2L135RP64 | Motor Power: 1 HP | Rated Speed: 13,500 RPM | Spindle Thread: 3/8"-24 | Wheel Type: Type 27 | Wheel Size: 4" x 1/4" | Exhaust: Rear Exhaust | Air Consumption: 22 CFM | Overall Length: 12.4" | Height Over Spindle End: 3.39" | Weight: 4.55 lbs

Features:

• Extended-angle configuration provides additional reach for grinding around machinery, frames, and other difficult-to-access areas.
• 1 HP motor provides power for material removal and demanding grinding applications.
• Speed-governed motor helps maximize abrasive life while supporting grinder efficiency and productivity.
• Lube-free motor design reduces maintenance requirements during normal operation.
• Spindle lock allows faster and easier accessory changes.
• Multi-positional guard adjusts to four positions without tools for flexible wheel positioning.
• Steel housing provides durable construction for demanding industrial applications.
• Ergonomic handle design is intended to improve operator comfort and reduce fatigue.
• Rear exhaust directs discharged air toward the rear of the tool.

Applications:

• Grinding and finishing welds and fabricated metal surfaces.
• Material removal using compatible Type 27 abrasive wheels.
• Cleaning and surface preparation before coating or finishing.
• Grinding work around machinery, frames, and industrial assemblies where additional reach is useful.
• General industrial maintenance and metalworking applications requiring an extended angle grinder.

FAQs:

• Q: What wheel does the M2L135RP64 use?
  A: The catalog specifies a 4" x 1/4" Type 27 wheel for the M2L135RP64.
• Q: What is the advantage of an extended angle grinder?
  A: The extended configuration provides additional reach for accessing surfaces around machinery, frames, and other areas where a standard grinder may be difficult to position.
• Q: Does the M2L135RP64 have a lube-free motor?
  A: Yes. The M2 Series uses a lube-free 1 HP motor designed to reduce maintenance requirements.
• Q: How does the spindle lock help?
  A: The spindle lock makes accessory changes faster and easier by helping secure the spindle during the changeover.
• Q: Where is the exhaust located?
  A: The M2L135RP64 has a rear exhaust configuration.

Looking for more information about the Ingersoll Rand Grinder? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Grinders for your application, please call (800) 608-5210 or email info@intlairtool.com
