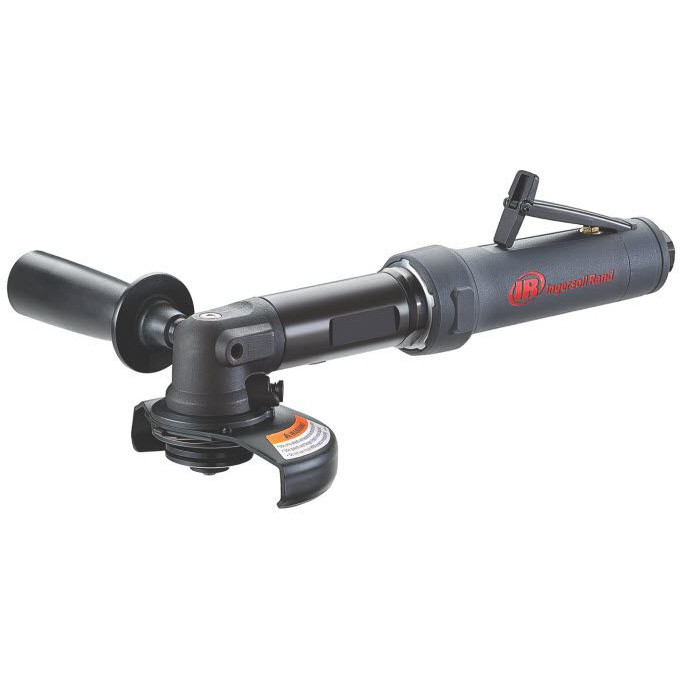

Ingersoll Rand M2L100RP106 Extended Angle Grinder | 1 HP | 10,000 RPM | 5/8" - 11 Thread | Rear Exhaust

Designed for demanding grinding, cutting, cleaning, and polishing applications, the Ingersoll Rand M2L100RP106 M2 Series Extended Angle Grinder combines a 1 HP motor with a 10,000 RPM free speed and a 5/8"-11 spindle thread. Its extended-angle configuration provides additional reach for accessing surfaces between structures, inside frames, and around machinery where a conventional grinder may be difficult to position. The model is designed for use with a 6-inch Type 27 wheel, providing a practical setup for heavier material-removal and finishing work.

The M2L100RP106 features a rear exhaust, a speed-governed motor, and a steel housing designed for demanding industrial service. Its lube-free motor design reduces the need for constant lubrication, although Ingersoll Rand recommends periodic lubrication for optimum service life. The tool also incorporates a spindle-lock system for easier accessory changes and a multi-position guard that can be adjusted to four positions without tools.

Type: Pneumatic Extended Angle Grinder | Series: M2 Series | Model: M2L100RP106 | Motor Power: 1 HP | Free Speed: 10,000 RPM | Spindle Thread: 5/8"-11 | Wheel Type: Type 27 | Wheel Size: 6" X 1/4" | Exhaust: Rear Exhaust | Air Consumption: 25 CFM | Overall Length: 12.4" | Weight: 5.46 lbs

Features:

• Extended-angle configuration provides additional reach for surfaces between structures, inside frames, and around machinery.
• 1 HP motor provides power for heavier grinding, cutting, cleaning, and polishing applications.
• Speed-governed motor helps maintain operating speed and supports efficient abrasive use.
• Lube-free motor design reduces the need for constant lubrication during normal operation.
• Spindle lock allows faster and easier accessory changes.
• Multi-position guard adjusts to four positions without tools for flexible wheel positioning.
• Low-profile throttle lever and ergonomic handle design support operator comfort during extended use.
• Rear exhaust directs discharged air away from the front of the tool and work area.
• Steel housing provides durable construction for demanding industrial environments.

Applications:

• Grinding and finishing welds and fabricated metal surfaces.
• Cutting and material removal on industrial components and assemblies.
• Cleaning and surface preparation before coating or finishing.
• Polishing and finishing operations where a 6-inch Type 27 wheel is appropriate.
• Grinding between structures, inside frames, and around machinery where additional tool reach is useful.

FAQs:

• Q: What type of wheel does the M2L100RP106 use?
  A: The manufacturer specification identifies a 6-inch by 1/4-inch Type 27 wheel for this model.
• Q: What is the advantage of the extended-angle configuration?
  A: The extended body provides additional reach for working between surfaces, inside frames, and around machinery where a standard angle grinder may not provide sufficient access.
• Q: Does the M2L100RP106 require constant lubrication?
  A: No. The M2 Series motor vanes use a material that does not require constant lubrication. Ingersoll Rand does recommend periodic lubrication for optimum service life.
• Q: How does the speed-governed motor benefit grinding work?
  A: The governed motor is designed to maximize productivity, efficiency, and abrasive life by controlling operating speed.
