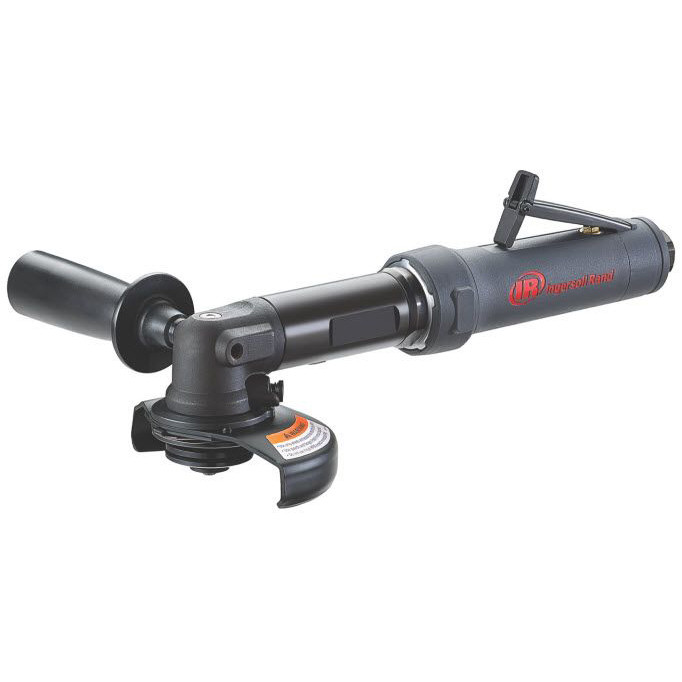

Ingersoll Rand M2L120RP1045 Extended Angle Grinder | 1 HP | 12,000 RPM | 5/8" - 11 Thread | Rear Exhaust

Designed for demanding industrial grinding, cutting, cleaning, and polishing applications, the Ingersoll Rand M2L120RP1045 M2 Series Extended Angle Grinder combines a 1 HP motor with a 12,000 RPM free speed and a 5/8"-11 spindle thread. Its extended-angle configuration provides additional reach for accessing surfaces between structures, inside frames, and around machinery where a conventional angle grinder may be difficult to position. The grinder is configured for a 4-1/2" x 1/4" Type 27 wheel, providing a practical setup for material removal and surface preparation.

The M2L120RP1045 features a rear exhaust, lube-free motor design, and steel housing for demanding industrial service. Its speed-governed motor helps manage airflow and maintain controlled operating speed, while the spindle lock allows faster accessory changes. The extended body and right-angle configuration make this grinder particularly useful when additional reach is needed around machinery, frames, and large assemblies.

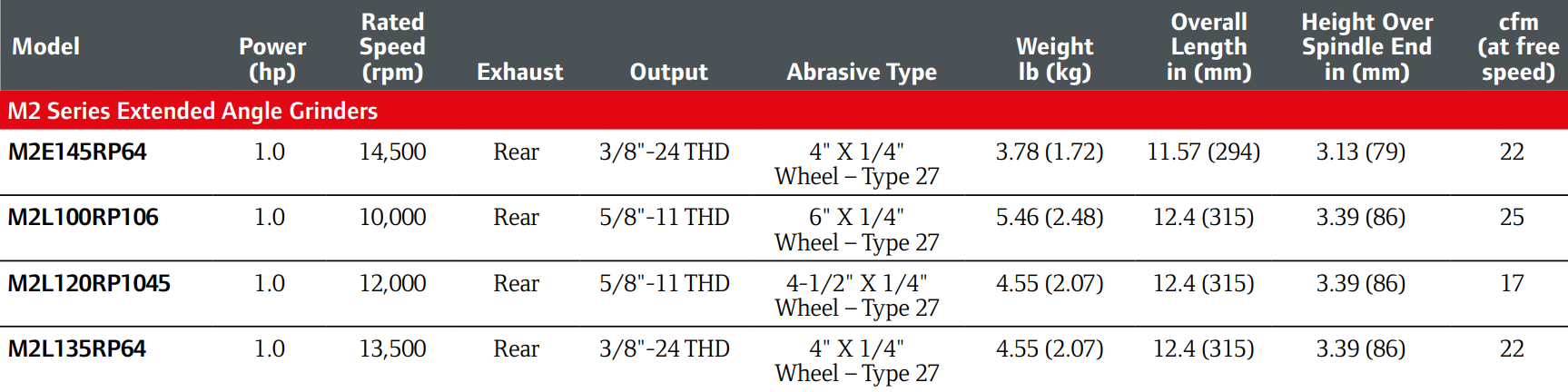

Type: Pneumatic Extended Angle Grinder | Series: M2 Series | Model: M2L120RP1045 | Motor Power: 1 HP | Free Speed: 12,000 RPM | Spindle Thread: 5/8"-11 | Wheel Type: Type 27 | Wheel Size: 4-1/2" x 1/4" | Exhaust: Rear Exhaust | Air Consumption: 17 CFM | Overall Length: 12.4" | Weight: 4.55 lbs

Features:

• Extended-angle configuration provides additional reach for grinding between structures, inside frames, and around machinery.
• 1 HP motor provides power for demanding grinding, cutting, cleaning, and polishing applications.
• Lube-free motor design reduces the need for constant lubrication during normal operation.
• Speed-governed motor helps maintain operating speed and manage airflow for efficient use.
• Spindle lock allows faster and easier accessory changes.
• Multi-position guard adjusts to four positions without tools for flexible wheel positioning.
• Steel housing provides durable construction for demanding industrial environments.
• Rear exhaust directs discharged air away from the front of the tool and work area.
• Easy motor access simplifies disassembly when service is required.

Applications:

• Grinding and finishing welds and fabricated metal surfaces.
• Material removal and cutting applications using compatible Type 27 abrasive wheels.
• Cleaning and surface preparation before coating or finishing.
• Polishing and finishing industrial components and assemblies.
• Grinding between structures, inside frames, and around machinery where extended reach is beneficial.
• General industrial maintenance and MRO applications requiring a 1 HP pneumatic angle grinder.

FAQs:

• Q: What wheel does the M2L120RP1045 use?
  A: The M2L120RP1045 is configured for a 4-1/2" x 1/4" Type 27 wheel.
• Q: What is the advantage of the extended-angle configuration?
  A: The extended body provides additional reach for working between surfaces, inside frames, and around machinery where a standard angle grinder may not provide sufficient access.
• Q: Does the M2L120RP1045 use a lube-free motor?
  A: Yes. The M2 Series uses a lube-free motor design that reduces the need for constant lubrication during normal operation.
• Q: What is the purpose of the spindle lock?
  A: The spindle lock helps make accessory changes faster and easier when changing compatible grinding wheels or other accessories.
• Q: Where is the exhaust located?
  A: The M2L120RP1045 uses a rear exhaust configuration that directs discharged air toward the rear of the tool.

Looking for more information about the Ingersoll Rand Grinder? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Grinders for your application, please call (800) 608-5210 or email info@intlairtool.com
