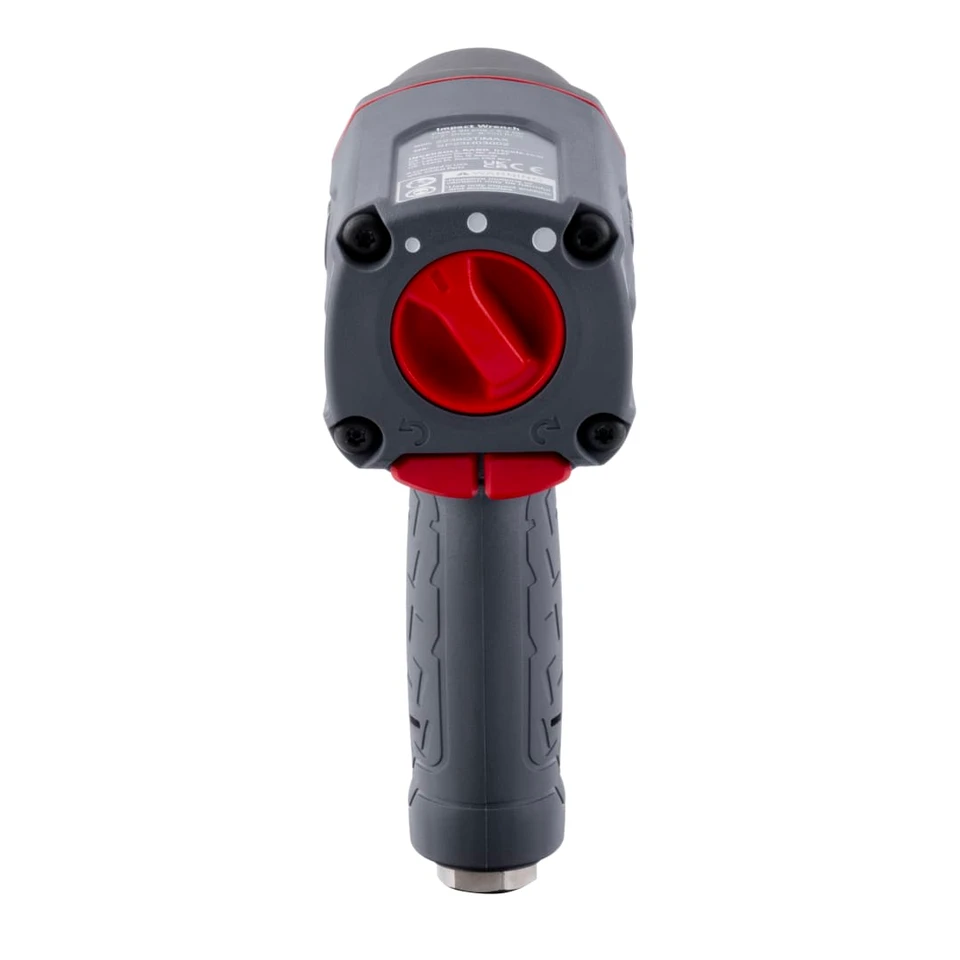

Ingersoll Rand DXS2 Air Impact Wrench | 2236QTIMAX-2 | 1500 (ft-lbs) Torque | 1/2" Square Drive

When recessed fasteners are difficult to reach with a standard impact wrench, the Ingersoll Rand 2236QTIMAX-2 DXS2 Air Impact Wrench provides additional access without sacrificing breakaway power. Equipped with a 1/2" square drive and 2" extended friction-ring anvil, this pneumatic impact wrench reaches deeper into wheel assemblies, suspension components, and mechanical equipment. Its 1,500 ft-lbs of nut-busting torque delivers substantial breakaway force for loosening stubborn bolts during automotive repair, fleet maintenance, and industrial servicing. The patented DXS Drive Xchange System (an interchangeable anvil system that allows direct drive changes) lets technicians switch between compatible anvil configurations without conventional socket adapters that add length and can reduce power transfer.

Part of the Ingersoll Rand 2236 MAX Series, the 2236QTIMAX-2 combines a patented motor design with a 7,500 RPM maximum free speed and 1,350 impacts per minute for efficient fastening and bolt removal. Its titanium hammer case protects the impact mechanism, while the patented direct hammer greasing design simplifies routine lubrication. Measuring 9.37 inches long and weighing 4.6 lbs, this extended-anvil configuration provides additional reach while maintaining manageable handling. Ingersoll Rand's quieter motor design reduces operating noise by four decibels compared with the 2235TIMAX, making this wrench a practical choice for professional service bays, heavy equipment workshops, and industrial maintenance facilities.

Type: Pneumatic Impact Wrench | Brand: Ingersoll Rand | Model: 2236QTIMAX-2 | Series: 2236 MAX Series | System: DXS Drive Xchange System | Drive Size: 1/2" | Drive Type: Square Drive | Anvil: 2" Extended Friction Ring | Configuration: Pistol Grip | Breakaway Torque: 1,500 ft-lbs (2,034 Nm) | Maximum Free Speed: 7,500 RPM | Impacts Per Minute: 1,350 | Impacting Sound Level: 94.2 dB(A) | Weight: 4.6 lbs (2.1 kg) | Overall Length: 9.37" (238 mm) | Air Inlet: 1/4" NPTF/NPT | Minimum Hose Size: 3/8" (10 mm)

Features:

• Delivers 1,500 ft-lbs of nut-busting torque to help remove stubborn fasteners during vehicle, equipment, and machinery maintenance.
• 2-inch extended friction-ring anvil provides additional reach for recessed bolts and mechanical connections without requiring a separate socket extension.
• Patented DXS Drive Xchange System allows compatible anvils to be changed directly without conventional adapters that can increase tool length and reduce power transfer.
• Additional interchangeable anvil options include 3/8-inch, 1/2-inch, and 3/4-inch drive sizes, with extended lengths from 2 to 10 inches available separately.
• Titanium hammer case provides lightweight protection for the internal impact mechanism during repeated workshop use.
• Patented direct hammer greasing design simplifies lubrication and supports reliable tool operation.
• Patented motor design delivers 1,350 impacts per minute and reduces operating noise by four decibels compared with the 2235TIMAX.
• Balanced pistol-grip construction and 4.6-pound weight help technicians manage repetitive fastening tasks while benefiting from the extended anvil reach.

Applications:

• Automotive repair and tire service - reaching recessed wheel fasteners, suspension bolts, and threaded connections during vehicle servicing.
• Fleet and commercial vehicle maintenance - loosening mechanical fasteners positioned deeper inside vehicle assemblies and service components.
• Industrial maintenance and MRO - removing and installing bolts on production machinery, equipment housings, and mechanical assemblies.
• Construction and agricultural equipment repair - servicing recessed fasteners on machinery components, equipment brackets, and mechanical connections.
• Garage and mechanical workshops - completing automotive restoration, equipment repairs, and fastening tasks where additional socket reach is beneficial.

FAQs:

• Q: How much torque does the 2236QTIMAX-2 deliver?
  A: It delivers 1,500 ft-lbs of nut-busting torque.
• Q: What is the advantage of the 2-inch extended anvil?
  A: It provides additional reach for recessed fasteners and deep mechanical assemblies.
• Q: Can the anvil be replaced with another drive size?
  A: Yes. The DXS system accepts compatible interchangeable anvils sold separately.
• Q: What air hose size does this wrench require?
  A: Ingersoll Rand specifies a minimum 3/8-inch air hose.
