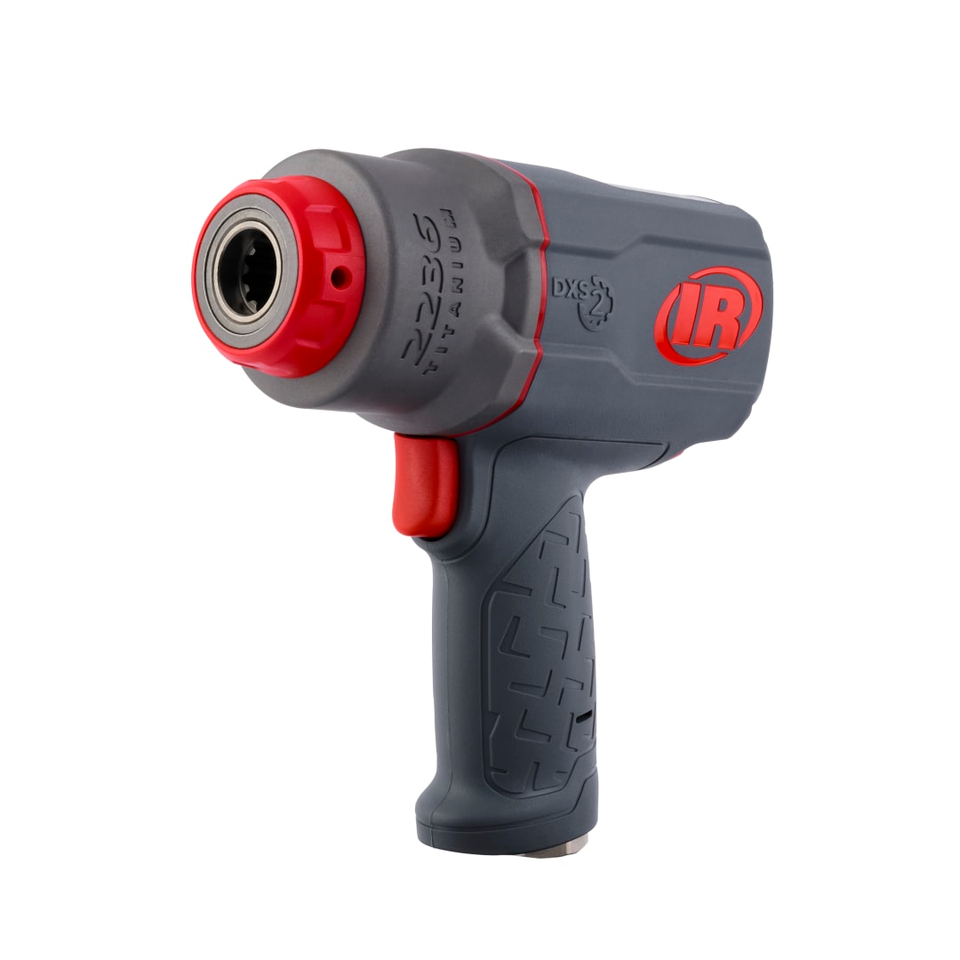

Ingersoll Rand DXS2 Air Impact Wrench | 2236QTIMAX | 1500 (ft-lbs) Torque | 1/2" Square Drive

When one impact wrench needs to handle different socket sizes and fastener positions, the Ingersoll Rand 2236QTIMAX DXS2 Air Impact Wrench delivers powerful removal capability with interchangeable drive versatility. Part of the 2236 MAX Series, this pneumatic impact wrench features a 1/2" square drive with standard friction-ring anvil and produces 1,500 ft-lbs of nut-busting torque (maximum breakaway force for loosening stubborn fasteners). Its patented DXS Drive Xchange System allows technicians to replace the drive anvil directly, changing socket drive sizes or reaching recessed fasteners without conventional adapters that add length and can reduce power transfer. This flexibility makes the tool particularly useful for automotive repair, fleet maintenance, and industrial equipment servicing.

The 2236QTIMAX combines a patented motor design with a 7,500 RPM maximum free speed and 1,350 impacts per minute, supporting efficient removal of resistant nuts and bolts. A titanium hammer case protects the impact mechanism, while the patented direct greasing design simplifies routine hammer lubrication. Weighing just 4.4 lbs (1.99 kg) and measuring 7.36 inches (187 mm) long, the wrench provides manageable handling and access around vehicle and machinery components. Ingersoll Rand reports operation four decibels quieter than the 2235TIMAX, helping reduce noise during workshop use. The compact pistol-grip configuration and interchangeable anvil system provide a practical combination of power, accessibility, and flexibility for professional maintenance work.

Type: Pneumatic Impact Wrench | Brand: Ingersoll Rand | Model: 2236QTIMAX | Series: 2236 MAX Series | System: DXS Drive Xchange System | Drive Size: 1/2" | Drive Type: Square Drive | Anvil: Standard Friction Ring | Configuration: Pistol Grip | Nut-Busting Torque: 1,500 ft-lbs (2,034 Nm) | Maximum Free Speed: 7,500 RPM | Impacts Per Minute: 1,350 | Impacting Sound Level: 94.2 dB(A) | Weight: 4.4 lbs (1.99 kg) | Overall Length: 7.36" (187 mm) | Air Inlet: 1/4" NPTF/NPT | Minimum Hose Size: 3/8" (10 mm)

Features:

• Delivers 1,500 ft-lbs of nut-busting torque through a patented motor design for removing stubborn fasteners during mechanical maintenance.
• Patented DXS Drive Xchange System allows interchangeable anvils to be installed directly without bulky socket adapters or unnecessary tool length.
• Standard 1/2-inch friction-ring anvil retains compatible impact sockets while allowing convenient socket changes.
• Compatible interchangeable anvil options include 3/8-inch, 1/2-inch, and 3/4-inch drive sizes, with extended lengths ranging from 2 to 10 inches.
• Titanium hammer case provides lightweight durability and protection for the internal impact mechanism.
• Patented direct hammer greasing design simplifies lubrication and helps support reliable tool operation.
• Compact 7.36-inch overall length and 4.4-pound weight provide improved balance and handling during repeated fastening tasks.
• Patented motor design reduces operating noise by four decibels compared with the 2235TIMAX while maintaining strong breakaway performance.

Applications:

• Automotive repair and tire service - removing wheel fasteners, suspension bolts, and threaded components during vehicle maintenance.
• Fleet and commercial vehicle maintenance - handling fastening and removal tasks on service vehicles and transportation equipment.
• Industrial maintenance and MRO - loosening and installing bolts on production machinery, equipment housings, and mechanical assemblies.
• Construction and agricultural equipment repair - servicing accessible fasteners on machinery components and mechanical equipment.
• Garage and mechanical workshops - performing vehicle restoration, equipment repairs, and fastening tasks requiring different drive sizes or socket reach.

FAQs:

• Q: How much torque does the 2236QTIMAX deliver?
  A: It delivers 1,500 ft-lbs of nut-busting torque.
• Q: What does the DXS Drive Xchange System do?
  A: It allows interchangeable anvils to be installed without conventional socket adapters.
• Q: What type of anvil comes with this model?
  A: It comes with a standard 1/2" friction-ring anvil.
• Q: Can the drive size be changed?
  A: Yes. Compatible 3/8", 1/2", and 3/4" drive anvils are available separately.
