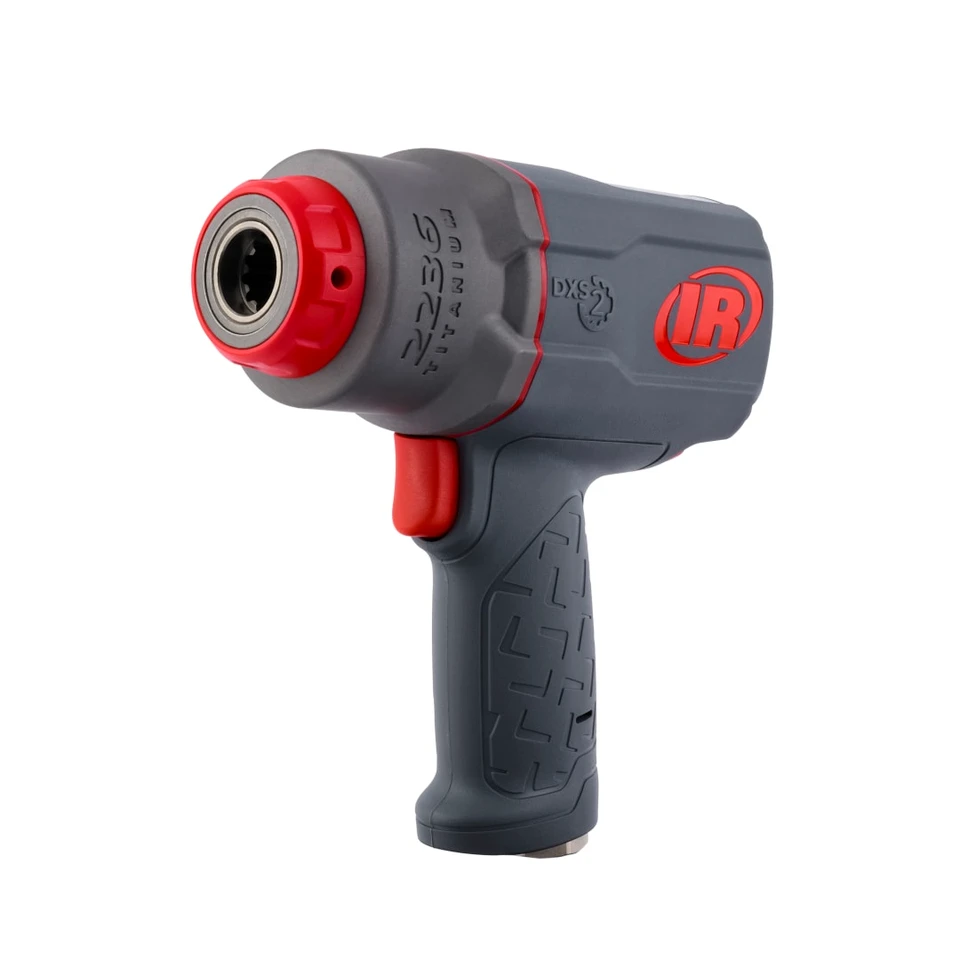

Ingersoll Rand DXS2 Air Impact Wrench | 2236QPTIMAX | 1500 (ft-lbs) Torque | 1/2" Square Drive

For service technicians who require secure socket attachment while removing stubborn fasteners, the Ingersoll Rand 2236QPTIMAX DXS2 Air Impact Wrench combines powerful breakaway performance with the flexibility of interchangeable drive anvils. Featuring a 1/2" square drive with standard pin-retainer anvil, this pneumatic impact wrench provides positive socket retention for compatible impact sockets during automotive repair, fleet servicing, and machinery maintenance. Delivering 1,500 ft-lbs of nut-busting torque (maximum breakaway force for loosening resistant fasteners), it offers 200 ft-lbs more breakaway torque than the 2235QTIMAX. The patented DXS Drive Xchange System allows technicians to replace compatible anvils directly without conventional socket adapters that add length and can reduce power transfer.

Part of the Ingersoll Rand 2236 MAX Series, the 2236QPTIMAX features a patented motor design delivering 7,500 RPM maximum free speed and 1,350 impacts per minute for productive fastener removal. Its 1,000 ft-lbs maximum reverse torque, listed in Ingersoll Rand's current specifications, further distinguishes its operating capability from the breakaway rating. A lightweight titanium hammer case protects the impact mechanism, while the patented direct greasing design makes routine hammer lubrication more accessible. Measuring 7.36 inches long and weighing 4.4 lbs, this pistol-grip wrench offers compact handling for maintenance tasks. Ingersoll Rand also reports a four-decibel noise reduction compared with the 2235TIMAX, making the tool a practical option for professional service bays and industrial workshops.

Type: Pneumatic Impact Wrench | Brand: Ingersoll Rand | Model: 2236QPTIMAX | Series: 2236 MAX Series | System: DXS Drive Xchange System | Drive Size: 1/2" | Drive Type: Square Drive | Anvil: Standard Pin Retainer | Configuration: Pistol Grip, Trigger Actuation | Nut-Busting Torque: 1,500 ft-lbs (2,034 Nm) | Maximum Reverse Torque: 1,000 ft-lbs (1,356 Nm) | Maximum Free Speed: 7,500 RPM | Impacts Per Minute: 1,350 | Impacting Sound Level: 94.2 dB(A) | Weight: 4.4 lbs (1.99 kg) | Overall Length: 7.36" (187 mm) | Air Inlet: 1/4" NPTF/NPT | Minimum Hose Size: 3/8" (10 mm)

Features:

• Delivers 1,500 ft-lbs of nut-busting torque for loosening stubborn bolts during vehicle and industrial equipment maintenance.
• Standard 1/2-inch pin-retainer anvil provides positive retention of compatible impact sockets during fastening and removal.
• Patented DXS Drive Xchange System enables direct anvil replacement, reducing the need for bulky socket adapters.
• Optional interchangeable anvils provide 3/8-inch, 1/2-inch, and 3/4-inch drive choices, including extended configurations for recessed fasteners.
• Patented motor design provides powerful impact performance in a compact, lightweight wrench.
• Titanium hammer case helps protect the internal impact mechanism against wear and impacts encountered during workshop use.
• Patented direct greasing design provides easier access for hammer lubrication and routine maintenance.
• Reduced operating noise, 4.4-pound weight, and balanced pistol-grip construction support repeated use in professional repair environments.

Applications:

• Automotive repair and tire service - removing wheel fasteners, suspension bolts, and threaded components where positive socket retention is preferred.
• Fleet and commercial vehicle maintenance - servicing mechanical connections, vehicle components, and equipment assemblies during routine repairs.
• Industrial maintenance and MRO - loosening stubborn bolts on production machinery, mechanical housings, and plant equipment.
• Construction and agricultural equipment servicing - removing accessible fasteners from machinery components and maintenance assemblies.
• Professional garages and mechanical workshops - completing vehicle restoration, equipment repairs, and fastening tasks requiring interchangeable drive options.

FAQs:

• Q: How much torque does the 2236QPTIMAX deliver?
  A: It delivers 1,500 ft-lbs of nut-busting torque and 1,000 ft-lbs of maximum reverse torque.
• Q: What type of socket retainer does it use?
  A: It uses a standard 1/2" pin-retainer anvil.
• Q: Can the drive anvil be changed?
  A: Yes. The DXS system accepts compatible interchangeable anvils sold separately.
• Q: What air hose size is required?
  A: Ingersoll Rand specifies a minimum 3/8-inch air hose.
