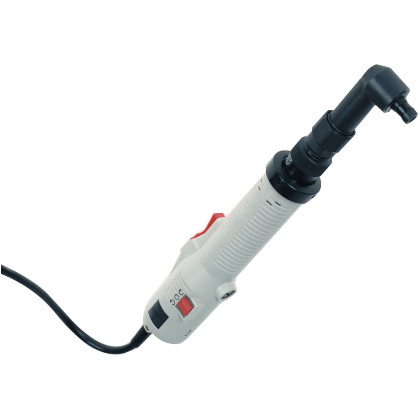

Ingersoll Rand ES90T2S3 High-Torque Electric Angle Screwdriver is designed for precision fastening applications that require fast cycle times, consistent torque delivery, and easy access to confined fastening locations. Featuring a 1,300 RPM free speed and a 6–19 in-lb torque range, this angle electric screwdriver is well suited for high-volume assembly operations in electronics, appliance manufacturing, automotive component production, and other industrial environments. Its angle-head configuration allows operators to reach difficult fastening points while maintaining accurate and repeatable assembly performance.
The ES90T2S3 combines high rotational speed with a controlled torque range to support efficient production while maintaining fastening consistency. Designed for repetitive manufacturing applications, this electric angle screwdriver helps improve productivity and assembly quality where dependable torque control is essential.
Type: High-Torque Electric Angle Screwdriver | Model: ES90T2S3 | Configuration: Angle | Free Speed: 1,300 RPM | Torque Range: 6–19 in-lb
|
Features:
Made in USA: |
 |
Applications:
- Electronics and electrical equipment assembly.
- Automotive component manufacturing.
- Appliance production and assembly.
- Industrial manufacturing and repetitive fastening operations.
- Assembly applications requiring controlled torque in restricted workspaces.
FAQs:
- Q: What is the benefit of an angle electric screwdriver?
A: The angle-head design improves access to fasteners in tight spaces where an inline screwdriver may be difficult to position. - Q: What torque range does the ES90T2S3 provide?
A: The catalog confirms a fastening torque range of 6–19 in-lb. - Q: What is the operating speed of this screwdriver?
A: According to the provided catalog, the ES90T2S3 has a free speed of 1,300 RPM. - Q: Is this tool intended for repetitive production assembly?
A: Yes. It is designed for industrial assembly applications where controlled torque and repeatable fastening performance are required. - Q: Does the catalog specify the drive size, voltage, clutch type, weight, or overall dimensions?
A: No. Those specifications were not confirmed in the provided source and have therefore been omitted.
| SKU | Voltage | Torque Range | Free Speed | Weight | Overall Length | Side To Center Distance | Head Height | Output Drive |
|---|---|---|---|---|---|---|---|---|
| IN-LBS (NM) | LBS (KG) | IN (MM) | IN (MM) | IN (MM) | ||||
| Lever Start Large Angle Head | ||||||||
| ES90T2S3 | 115 V AC | 6 – 19 (0.68 – 2.2) | 1.300 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES60T2S3 | 115 V AC | 6 – 23 (0.68 – 2.6) | 650 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES70T2S3 | 115 V AC | 11 – 36 (1.2 – 4.1) | 450 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES100T2S3 | 115 V AC | 14 – 56 (1.6 – 6.3) | 250 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES90T2S5 | 115 V AC | 6 – 19 (0.68 – 2.2) | 1.300 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| ES60T2S5 | 115 V AC | 6 – 23 (0.68 – 2.6) | 650 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| ES70T2S5 | 115 V AC | 11 – 36 (1.2 – 4.1) | 450 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| ES100T2S5 | 115 V AC | 14 – 56 (1.6 – 6.3) | 250 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| Lever Start Small Angle Head | ||||||||
| ES90T1S5 | 115 V AC | 4 – 14 (0.45 – 1.6) | 1,850 | 1.9 (0.86) | 16.70” (424) | 0.33” (8.38) | 1.47” (37.34) | 1/4” Square Drive |
| ES60T1S5 | 115 V AC | 4 – 17 (0.45 – 1.9) | 950 | 1.9 (0.86) | 16.70” (424) | 0.33” (8.38) | 1.47” (37.34) | 1/4” Square Drive |
| ES70T1S5 | 115 V AC | 8 – 26 (0.90 – 2.9) | 650 | 1.9 (0.86) | 16.70” (424) | 0.33” (8.38) | 1.47” (37.34) | 1/4” Square Drive |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Screwdrivers for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Screwdriver
- Actuation
- Lever Start Large Angle Head
- Voltage
- 115 VAC
- Torque Range (Nm)
- 0.68 - 2.2
- Torque Range (in-lbs)
- 6 - 19
- RPM
- 1,300
- Length (in.)
- 16.89
- Length (mm)
- 429
- Side to Center (mm)
- 13.21
- Side to Center (in.)
- 0.52
- Angle Head Height (in.)
- 1.99
- Angle Head Height (mm)
- 50.55
- Spindle Size (in.)
- 1/4
- Drive Type
- Hex Quick Change
