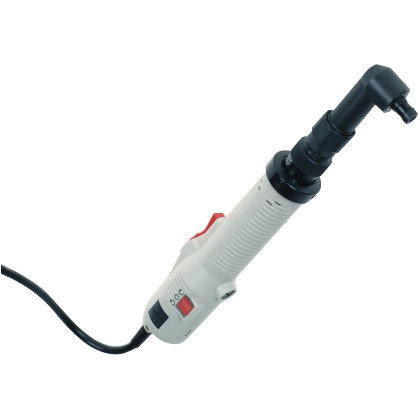

Ingersoll Rand ES60T2S5 High-Torque Electric Angle Screwdriver is designed for precision fastening applications where consistent torque control, production efficiency, and improved access to fasteners are essential. Featuring a 650 RPM free speed and a 6–23 in-lb torque range, this angle electric screwdriver is well suited for controlled assembly operations in electronics, appliance manufacturing, automotive component production, and other industrial assembly environments. Its angle-head configuration provides easier access to confined work areas while supporting accurate and repeatable fastening.
The ES60T2S5 combines a higher operating speed with a controlled torque range to help improve production throughput without compromising fastening consistency. Designed for repetitive assembly work, this electric angle screwdriver offers dependable performance in manufacturing environments where precision and operator comfort are critical to product quality.
Type: High-Torque Electric Angle Screwdriver | Model: ES60T2S5 | Configuration: Angle | Free Speed: 650 RPM | Torque Range: 6–23 in-lb
|
Features:
Made in USA: |
 |
Applications:
- Industrial manufacturing and production assembly lines.
- Automotive component and subassembly production.
- Electronics and electrical equipment assembly.
- Appliance manufacturing and light industrial assembly.
- Fastening applications requiring controlled torque in restricted workspaces.
FAQs:
- Q: What is the advantage of an angle electric screwdriver?
A: The angle-head design provides improved access to fasteners located in tight or difficult-to-reach assembly areas. - Q: What torque range does the ES60T2S5 provide?
A: The catalog confirms a fastening torque range of 6–23 in-lb. - Q: What is the operating speed of this screwdriver?
A: The ES60T2S5 has a free speed of 650 RPM according to the provided catalog. - Q: Is this tool intended for repetitive production assembly?
A: Yes. It is designed for controlled fastening applications in industrial manufacturing and assembly environments. - Q: Does the catalog specify the drive size, voltage, weight, or overall length?
A: No. Those specifications were not confirmed in the provided source and have therefore been omitted.
| SKU | Voltage | Torque Range | Free Speed | Weight | Overall Length | Side To Center Distance | Head Height | Output Drive |
|---|---|---|---|---|---|---|---|---|
| IN-LBS (NM) | LBS (KG) | IN (MM) | IN (MM) | IN (MM) | ||||
| Lever Start Large Angle Head | ||||||||
| ES90T2S3 | 115 V AC | 6 – 19 (0.68 – 2.2) | 1.300 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES60T2S3 | 115 V AC | 6 – 23 (0.68 – 2.6) | 650 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES70T2S3 | 115 V AC | 11 – 36 (1.2 – 4.1) | 450 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES100T2S3 | 115 V AC | 14 – 56 (1.6 – 6.3) | 250 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES90T2S5 | 115 V AC | 6 – 19 (0.68 – 2.2) | 1.300 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| ES60T2S5 | 115 V AC | 6 – 23 (0.68 – 2.6) | 650 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| ES70T2S5 | 115 V AC | 11 – 36 (1.2 – 4.1) | 450 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| ES100T2S5 | 115 V AC | 14 – 56 (1.6 – 6.3) | 250 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| Lever Start Small Angle Head | ||||||||
| ES90T1S5 | 115 V AC | 4 – 14 (0.45 – 1.6) | 1,850 | 1.9 (0.86) | 16.70” (424) | 0.33” (8.38) | 1.47” (37.34) | 1/4” Square Drive |
| ES60T1S5 | 115 V AC | 4 – 17 (0.45 – 1.9) | 950 | 1.9 (0.86) | 16.70” (424) | 0.33” (8.38) | 1.47” (37.34) | 1/4” Square Drive |
| ES70T1S5 | 115 V AC | 8 – 26 (0.90 – 2.9) | 650 | 1.9 (0.86) | 16.70” (424) | 0.33” (8.38) | 1.47” (37.34) | 1/4” Square Drive |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Screwdrivers for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Screwdriver
- Actuation
- Lever Start Large Angle Head
- Voltage
- 115 VAC
- Torque Range (Nm)
- 0.68 - 2.6
- Torque Range (in-lbs)
- 6 - 23
- RPM
- 650
- Length (in.)
- 16.89
- Length (mm)
- 429
- Side to Center (in.)
- 0.52
- Side to Center (mm)
- 13.21
- Angle Head Height (in.)
- 1.73
- Angle Head Height (mm)
- 43.94
- Drive Size (in.)
- 1/4
- Drive Type
- Square Drive
