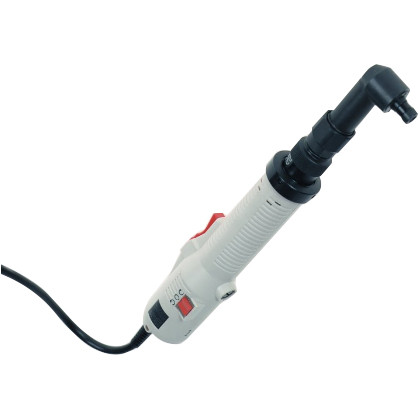

Ingersoll Rand ES60T1S5 High-Torque Electric Angle Screwdriver is engineered for precision fastening applications that demand reliable torque control, fast cycle times, and improved access to confined fastening locations. Featuring a 950 RPM free speed and a 4–17 in-lb torque range, this angle electric screwdriver is ideal for high-volume assembly operations in electronics, appliance manufacturing, automotive components, and general industrial production. Its angle-head configuration enables operators to reach difficult fastening points while maintaining consistent fastening accuracy.
The ES60T1S5 combines high rotational speed with a controlled low-to-medium torque range, making it well suited for repetitive fastening tasks where productivity and repeatability are equally important. Designed for continuous manufacturing environments, this electric angle screwdriver helps improve assembly efficiency while delivering dependable fastening performance.
Type: High-Torque Electric Angle Screwdriver | Model: ES60T1S5 | Configuration: Angle | Free Speed: 950 RPM | Torque Range: 4–17 in-lb
|
Features:
Made in USA: |
 |
Applications:
- Electronics and electrical equipment assembly.
- Appliance manufacturing and production assembly.
- Automotive component assembly.
- Industrial manufacturing and repetitive fastening operations.
- Assembly applications requiring controlled torque in restricted workspaces.
FAQs:
- Q: What advantage does the angle-head configuration provide?
A: It allows easier access to fasteners located in confined or obstructed areas where an inline screwdriver may be difficult to position. - Q: What torque range does the ES60T1S5 provide?
A: The catalog confirms a fastening torque range of 4–17 in-lb. - Q: What is the operating speed of this screwdriver?
A: According to the provided catalog, the ES60T1S5 has a free speed of 950 RPM. - Q: Is this tool suitable for production assembly?
A: Yes. It is designed for repetitive industrial assembly applications where controlled torque and consistent fastening are important. - Q: Does the catalog specify the drive size, voltage, clutch type, weight, or overall dimensions?
A: No. Those specifications were not confirmed in the provided source and have therefore been omitted.
| SKU | Voltage | Torque Range | Free Speed | Weight | Overall Length | Side To Center Distance | Head Height | Output Drive |
|---|---|---|---|---|---|---|---|---|
| IN-LBS (NM) | LBS (KG) | IN (MM) | IN (MM) | IN (MM) | ||||
| Lever Start Large Angle Head | ||||||||
| ES90T2S3 | 115 V AC | 6 – 19 (0.68 – 2.2) | 1.300 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES60T2S3 | 115 V AC | 6 – 23 (0.68 – 2.6) | 650 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES70T2S3 | 115 V AC | 11 – 36 (1.2 – 4.1) | 450 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES100T2S3 | 115 V AC | 14 – 56 (1.6 – 6.3) | 250 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES90T2S5 | 115 V AC | 6 – 19 (0.68 – 2.2) | 1.300 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| ES60T2S5 | 115 V AC | 6 – 23 (0.68 – 2.6) | 650 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| ES70T2S5 | 115 V AC | 11 – 36 (1.2 – 4.1) | 450 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| ES100T2S5 | 115 V AC | 14 – 56 (1.6 – 6.3) | 250 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| Lever Start Small Angle Head | ||||||||
| ES90T1S5 | 115 V AC | 4 – 14 (0.45 – 1.6) | 1,850 | 1.9 (0.86) | 16.70” (424) | 0.33” (8.38) | 1.47” (37.34) | 1/4” Square Drive |
| ES60T1S5 | 115 V AC | 4 – 17 (0.45 – 1.9) | 950 | 1.9 (0.86) | 16.70” (424) | 0.33” (8.38) | 1.47” (37.34) | 1/4” Square Drive |
| ES70T1S5 | 115 V AC | 8 – 26 (0.90 – 2.9) | 650 | 1.9 (0.86) | 16.70” (424) | 0.33” (8.38) | 1.47” (37.34) | 1/4” Square Drive |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Screwdrivers for your application, please call (800) 608-5210 or email info@intlairtool.com
