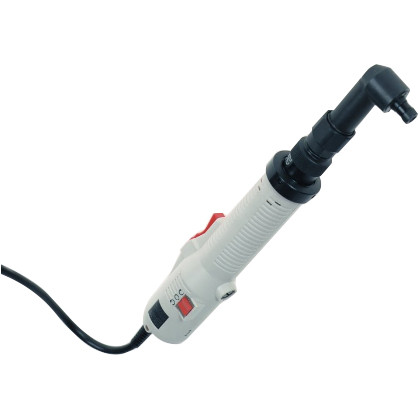

Ingersoll Rand ES100T2S5 High-Torque Electric Angle Screwdriver is designed for precision fastening applications that require consistent torque output, dependable production performance, and improved access to hard-to-reach fasteners. Featuring a 250 RPM free speed and a 14–56 in-lb torque range, this angle electric screwdriver is well suited for controlled assembly operations in automotive component manufacturing, industrial equipment assembly, appliances, electronics, and other production environments. Its angle-head configuration provides excellent accessibility in confined workspaces while supporting accurate, repeatable fastening.
The ES100T2S5 combines a lower operating speed with a broad high-torque fastening range to deliver precise control during demanding assembly tasks. Designed for repetitive industrial production, this electric angle screwdriver helps improve fastening consistency and operator productivity while maintaining reliable performance throughout extended assembly operations.
Type: High-Torque Electric Angle Screwdriver | Model: ES100T2S5 | Configuration: Angle | Free Speed: 250 RPM | Torque Range: 14–56 in-lb
|
Features:
Made in USA: |
 |
Applications:
- Industrial manufacturing and production assembly lines.
- Automotive component and subsystem assembly.
- Electrical and electronic equipment manufacturing.
- Appliance and industrial machinery assembly.
- Precision fastening applications requiring controlled torque in restricted work areas.
FAQs:
- Q: What is the benefit of an angle electric screwdriver?
A: The angle-head design allows operators to access fasteners in confined spaces where an inline tool may not fit comfortably. - Q: What torque range does the ES100T2S5 provide?
A: The catalog confirms a fastening torque range of 14–56 in-lb. - Q: What is the operating speed of this screwdriver?
A: According to the provided catalog, the ES100T2S5 operates at a free speed of 250 RPM. - Q: Is this tool intended for repetitive production assembly?
A: Yes. It is designed for controlled fastening applications in industrial manufacturing and assembly environments. - Q: Does the catalog specify the drive size, voltage, clutch type, or overall dimensions?
A: No. Those specifications were not confirmed in the provided source and have therefore been omitted.
| SKU | Voltage | Torque Range | Free Speed | Weight | Overall Length | Side To Center Distance | Head Height | Output Drive |
|---|---|---|---|---|---|---|---|---|
| IN-LBS (NM) | LBS (KG) | IN (MM) | IN (MM) | IN (MM) | ||||
| Lever Start Large Angle Head | ||||||||
| ES90T2S3 | 115 V AC | 6 – 19 (0.68 – 2.2) | 1.300 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES60T2S3 | 115 V AC | 6 – 23 (0.68 – 2.6) | 650 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES70T2S3 | 115 V AC | 11 – 36 (1.2 – 4.1) | 450 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES100T2S3 | 115 V AC | 14 – 56 (1.6 – 6.3) | 250 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES90T2S5 | 115 V AC | 6 – 19 (0.68 – 2.2) | 1.300 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| ES60T2S5 | 115 V AC | 6 – 23 (0.68 – 2.6) | 650 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| ES70T2S5 | 115 V AC | 11 – 36 (1.2 – 4.1) | 450 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| ES100T2S5 | 115 V AC | 14 – 56 (1.6 – 6.3) | 250 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| Lever Start Small Angle Head | ||||||||
| ES90T1S5 | 115 V AC | 4 – 14 (0.45 – 1.6) | 1,850 | 1.9 (0.86) | 16.70” (424) | 0.33” (8.38) | 1.47” (37.34) | 1/4” Square Drive |
| ES60T1S5 | 115 V AC | 4 – 17 (0.45 – 1.9) | 950 | 1.9 (0.86) | 16.70” (424) | 0.33” (8.38) | 1.47” (37.34) | 1/4” Square Drive |
| ES70T1S5 | 115 V AC | 8 – 26 (0.90 – 2.9) | 650 | 1.9 (0.86) | 16.70” (424) | 0.33” (8.38) | 1.47” (37.34) | 1/4” Square Drive |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Screwdrivers for your application, please call (800) 608-5210 or email info@intlairtool.com
