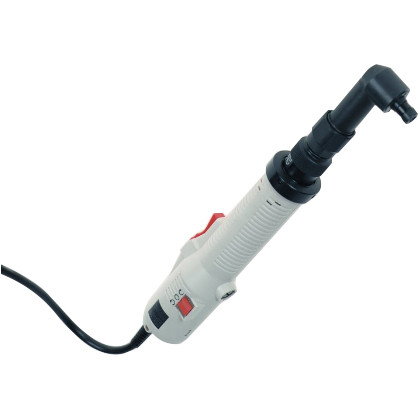

Ingersoll Rand ES100T2S3 High-Torque Electric Angle Screwdriver is engineered for precision fastening applications where consistent torque control and operator access are essential. Featuring a 250 RPM free speed and a 14–56 in-lb torque range, this angle electric screwdriver is designed for controlled assembly operations in manufacturing, electronics, appliance production, automotive components, and general industrial assembly. Its angle-head configuration provides improved access to fasteners in confined or difficult-to-reach locations while maintaining fastening accuracy.
The ES100T2S3 combines controlled rotational speed with a wide high-torque fastening range to help improve assembly consistency and productivity. Designed for repetitive production environments, this electric angle screwdriver supports precision fastening applications where repeatable torque output and ergonomic handling are important for product quality and operator efficiency.
Type: High-Torque Electric Angle Screwdriver | Model: ES100T2S3 | Configuration: Angle | Free Speed: 250 RPM | Torque Range: 14–56 in-lb
|
Features:
Made in USA: |
 |
Applications:
- Industrial manufacturing and assembly lines.
- Automotive component assembly.
- Electrical and electronic equipment assembly.
- Appliance and machinery manufacturing.
- Production environments requiring controlled torque fastening in confined spaces.
FAQs:
- Q: What is the advantage of an angle screwdriver?
A: The angle-head design helps operators reach fasteners in confined or difficult-to-access locations that may be challenging for inline tools. - Q: What torque range does the ES100T2S3 provide?
A: The catalog confirms a fastening torque range of 14–56 in-lb. - Q: Is this tool intended for production assembly?
A: Yes. It is designed for controlled fastening applications in industrial manufacturing and assembly environments. - Q: What is the operating speed of this screwdriver?
A: The ES100T2S3 has a free speed of 250 RPM according to the provided catalog. - Q: Does the catalog specify the drive size, weight, voltage, or overall length?
A: No. Those specifications were not confirmed in the provided source and have therefore been omitted.
| SKU | Voltage | Torque Range | Free Speed | Weight | Overall Length | Side To Center Distance | Head Height | Output Drive |
|---|---|---|---|---|---|---|---|---|
| IN-LBS (NM) | LBS (KG) | IN (MM) | IN (MM) | IN (MM) | ||||
| Lever Start Large Angle Head | ||||||||
| ES90T2S3 | 115 V AC | 6 – 19 (0.68 – 2.2) | 1.300 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES60T2S3 | 115 V AC | 6 – 23 (0.68 – 2.6) | 650 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES70T2S3 | 115 V AC | 11 – 36 (1.2 – 4.1) | 450 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES100T2S3 | 115 V AC | 14 – 56 (1.6 – 6.3) | 250 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.99” (50.55) | 1/4” Hex Drive |
| ES90T2S5 | 115 V AC | 6 – 19 (0.68 – 2.2) | 1.300 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| ES60T2S5 | 115 V AC | 6 – 23 (0.68 – 2.6) | 650 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| ES70T2S5 | 115 V AC | 11 – 36 (1.2 – 4.1) | 450 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| ES100T2S5 | 115 V AC | 14 – 56 (1.6 – 6.3) | 250 | 2.1 (0.95) | 16.89” (429) | 0.52” (13.21) | 1.73” (43.94) | 1/4” Square Drive |
| Lever Start Small Angle Head | ||||||||
| ES90T1S5 | 115 V AC | 4 – 14 (0.45 – 1.6) | 1,850 | 1.9 (0.86) | 16.70” (424) | 0.33” (8.38) | 1.47” (37.34) | 1/4” Square Drive |
| ES60T1S5 | 115 V AC | 4 – 17 (0.45 – 1.9) | 950 | 1.9 (0.86) | 16.70” (424) | 0.33” (8.38) | 1.47” (37.34) | 1/4” Square Drive |
| ES70T1S5 | 115 V AC | 8 – 26 (0.90 – 2.9) | 650 | 1.9 (0.86) | 16.70” (424) | 0.33” (8.38) | 1.47” (37.34) | 1/4” Square Drive |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Screwdrivers for your application, please call (800) 608-5210 or email info@intlairtool.com
