Ingersoll Rand EL2612N2S3 Versatec High-Torque Angle Electric Screwdriver | 800 RPM | 17 - 40 (in-lbs) Torque Range | Adjustable Shut-Off Clutch | Lever Start

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand EL2612N2S3 Versatec High-Torque Angle Electric Screwdriver | 800 RPM | 17 - 40 (in-lbs) Torque Range | Adjustable Shut-Off Clutch | Lever Start

List Price: $2,788.00
$2,121.30
(You save $666.70 )
Availability:
Available To Order From Supplier
SKU:
EL2612N2S3
Shipping:
Calculated at Checkout
Weight:
2.7500 LBS
Condition:
New
UPC:
663023007298
Adding to cart… The item has been added
Description

Ingersoll Rand EL2612N2S3 VersaTec high-torque angle electric screwdriver combines an 800 RPM speed with a 17–40 in-lbs torque range for controlled fastening in light-duty precision assembly. Its angle configuration supports close-quarter access by positioning the drive at 90 degrees to the tool body, while the adjustable shut-off clutch stops the fastening cycle when the selected torque is reached. This helps maintain repeatable tightening results across production assemblies.

Powered by 115V AC, the EL2612N2S3 uses lever-start actuation and a 1/4" female hex drive. The angle head rotates through 360 degrees, allowing its position to be adjusted around the workpiece or assembly fixture. Ingersoll Rand describes the VersaTec screwdriver platform as offering flexibility and serviceability for light-duty precision assembly, with design and construction focused on fastening accuracy and ergonomics.

Type: High-Torque Angle Electric Screwdriver | Series: VersaTec | Model: EL2612N2S3 | Voltage: 115V AC | Start Type: Lever Start | Clutch Type: Adjustable Shut-Off | Torque Range: 17–40 in-lbs (1.9–4.5 Nm) | Speed: 800 RPM | Drive: 1/4" Female Hex | Weight: 2.20 lbs (1.00 kg) | Length: 17.64" (448 mm) | Side-to-Center Distance: 0.52" (13.21 mm) | Head Height: 1.73" (43.94 mm)

Features:

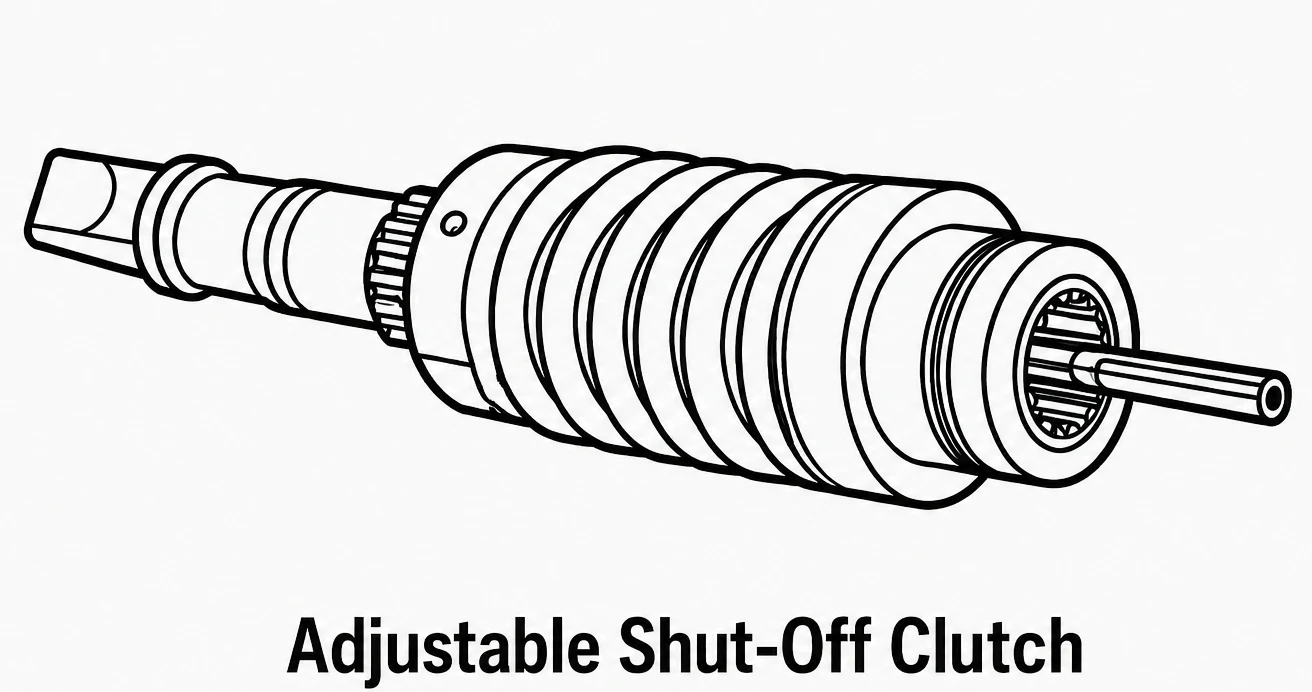

  • Adjustable shut-off clutch supports controlled, repeatable fastening within the specified torque range.
  • Angle head rotates 360 degrees to adjust the tool position to the application.
  • Angle-head configuration supports fastening in close-quarter assembly locations.
  • Lever-start operation provides controlled tool activation during repetitive fastening.
  • 800 RPM operating speed supports efficient screw rundown in precision assembly work.
  • 1/4" female hex drive accepts compatible fastening bits.
  • VersaTec construction emphasizes accuracy, ergonomics, flexibility, and serviceability.

Made in USA: usa-flag.gif

Applications:

  • Light-duty precision assembly requiring controlled torque application.
  • Close-quarter fastening where a straight screwdriver configuration cannot easily reach the fastener.
  • Repetitive production fastening within the tool’s 17–40 in-lbs torque range.
  • Assembly fixtures that benefit from a 360-degree adjustable angle-head position.

FAQs:

  • Q: What is the torque range of the EL2612N2S3?
    A: The manufacturer lists a torque range of 17–40 in-lbs, equivalent to 1.9–4.5 Nm.
  • Q: What does the adjustable shut-off clutch do?
    A: The clutch stops the fastening cycle when the selected torque is reached, supporting repeatable tightening in precision assembly work.
  • Q: Can the angle head be repositioned?
    A: Yes. Ingersoll Rand states that the angle head can rotate through 360 degrees to adjust to the application.
  • Q: What type of bit connection does this screwdriver use?
    A: The EL2612N2S3 has a 1/4" female hex drive for compatible fastening bits.
  • Q: What power supply does this model require?
    A: The manufacturer specifies a 115V AC power supply.

industrial-tools-parts-breakdown.pngLooking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog

For help choosing the proper Ingersoll Rand Screwdrivers for your assembly application, please email info@intlairtool.com or call (800) 608-5210

Specifications
Type:
Screwdriver
Voltage:
115 VAC
Torque Range (in-lbs):
17 - 40
RPM:
800
Length (in.):
17.64
Side to Center (in.):
0.52
Angle Head Height (in.):
1.73
Drive Size (in.):
1/4
Drive Type:
Hex
Warranty Information
One year warranty against defects in materials and workmanship.
